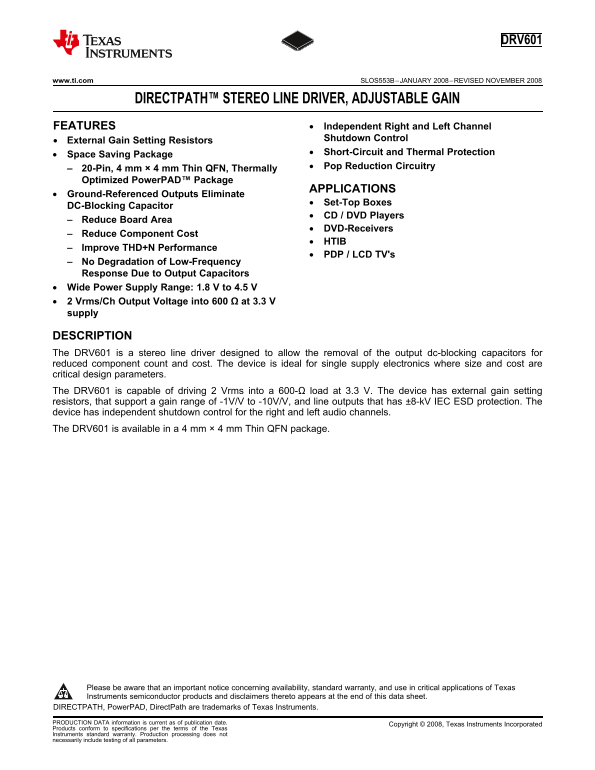

Texas Instruments DRV601 Data Sheet
Summary
This datasheet describes the Texas Instruments DRV601 DirectPath stereo line driver featuring ground-referenced outputs that eliminate the need for DC-blocking capacitors, reducing board area, component cost, and improving THD+N performance while eliminating low-frequency response degradation. Operating from a 1.8V to 4.5V single supply, the device delivers 2Vrms per channel into 600Ω loads at 3.3V. External gain-setting resistors support a gain range of -1V/V to -10V/V. Independent shutdown con
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 18 |
| File Size | 767.92 KB |
| Published | June 19, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the main benefit of using this line driver?
It allows designers to remove output dc-blocking capacitors, which reduces component count and overall cost in single supply electronics.
How does the DRV601 protect against electrical damage during handling?
It has limited built-in ESD protection; leads must be shorted together or stored in conductive foam to prevent electrostatic damage.
What is the typical maximum output voltage for this device?
The DRV601 can drive 2 Vrms into a 600-Ω load when supplied at 3.3 V.
