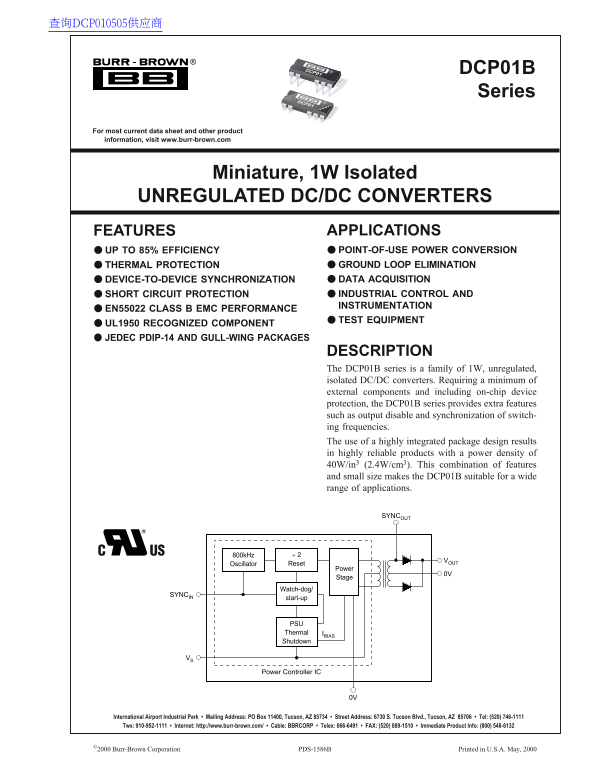

DCP01 DCP01B
Series
DCP01
For most current data sheet and other product information, visit www.burr-brown.com
Miniature, 1W Isolated UNREGULATED DC/DC CONVERTERS
FEATURES APPLICATIONS UP TO 85% EFFICIENCY POINT-OF-USE POWER CONVERSION THERMAL PROTECTION GROUND LOOP ELIMINATION DEVICE-TO-DEVICE SYNCHRONIZATION DATA ACQUISITION SHORT CIRCUIT PROTECTION INDUSTRIAL CONTROL AND INSTRUMENTATION
EN55022 CLASS B EMC PERFORMANCE
TEST EQUIPMENT
UL1950 RECOGNIZED COMPONENT JEDEC PDIP-14 AND GULL-WING PACKAGES
DESCRIPTION The DCP01B series is a family of 1W, unregulated, isolated DC/DC converters. Requiring a minimum of external components and including on-chip device protection, the DCP01B series provides extra features such as output disable and synchronization of switch- ing frequencies. The use of a highly integrated package design results in highly reliable products with a power density of 40W/in3 (2.4W/cm3). This combination of features and small size makes the DCP01B suitable for a wide range of applications.
SYNCOUT
800k Hz ÷ 2
Oscillator Reset
Power
Stage
Watch-dog/
SYNCIN
start-up
PSU Thermal IBIAS Shutdown
Power Controller IC
International Airport Industrial Park • Mailing Address: PO Box 11400, Tucson, AZ 85734 • Street Address: 6730 S. Tucson Blvd., Tucson, AZ 85706 • Tel: (520) 746-1111 Twx: 910-952-1111 • Internet: http://www.burr-brown.com/ • Cable: BBRCORP • Telex: 066-6491 • FAX: (520) 889-1510 • Immediate Product Info: (800) 548-6132
©2000 Burr-Brown Corporation
PDS-1586B DCP01B Printed in U.S.A. May, 2000
