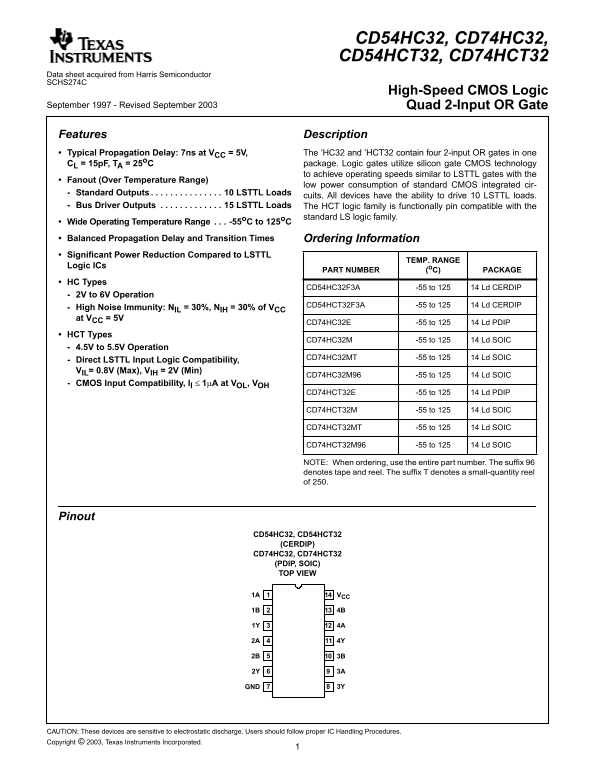

Texas Instruments CD54HC32, CD74HC32, CD54HCT32, CD74HCT32 Data Sheet
Summary
This technical datasheet details high-speed CMOS logic integrated circuits featuring four 2-input OR gates. These robust ICs provide low power consumption and operate across extreme temperature ranges, ensuring reliable performance in demanding digital applications. The manual serves as a comprehensive guide for electrical engineers and circuit designers, covering detailed pinouts, operating conditions, absolute maximum ratings, input/output specifications, and crucial compatibility data needed to integrate the logic device into complex electronic systems.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 13 |
| File Size | 442.11 KB |
| Published | May 29, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the typical operational temperature range for these ICs?
The operating temperature range allowed for these devices is -55°C to 125°C.
What precaution must be taken when handling these components?
These devices are sensitive to electrostatic discharge, and users should follow proper IC Handling Procedures.
Are the HCT32 logic gates compatible with standard LS signals?
Yes, the HCT32 logic family is functionally pin compatible with the standard LS logic family.
What is the maximum fanout capacity of the outputs?
All devices have the ability to drive 10 LSTTL loads.
If I need a bulk quantity, what does the ‘96’ suffix indicate?
The suffix 96 denotes that the component is supplied on tape and reel.
