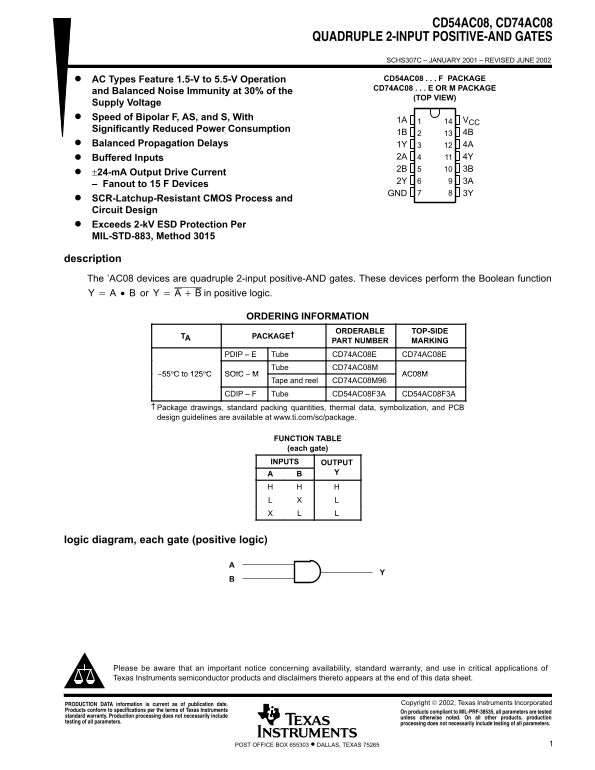

TEXAS INSTRUMENTS CD54AC08, CD74AC08 Data Sheet

Summary

These quadruple 2-input positive AND gates are essential components for industrial and digital logic circuits requiring precise Boolean function control. Operating reliably between 1.5V and 5.5V, these advanced chips feature low power consumption and balanced delays. The manual provides comprehensive technical documentation, including detailed electrical specifications, package guidelines, ordering information (CD54AC08/CD74AC08), and essential PCB design recommendations for electronics engineers building robust logic systems.
