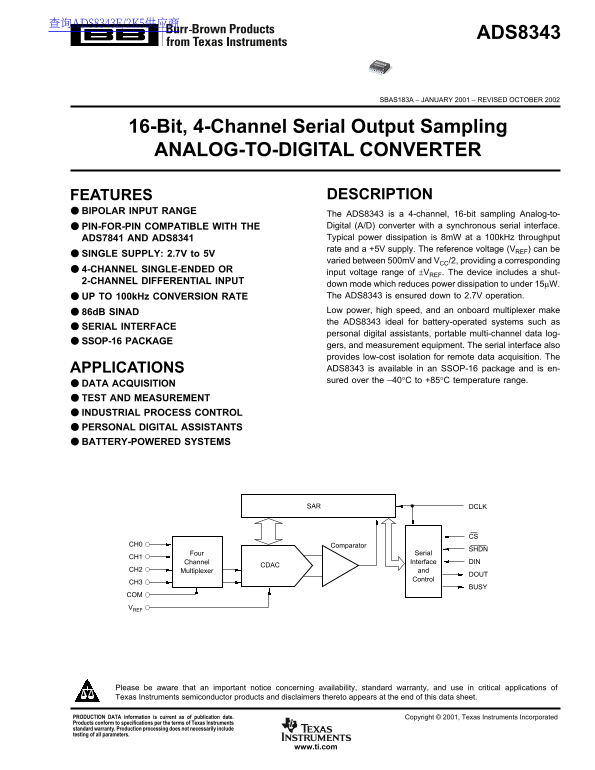

TEXAS INSTRUMENTS ADS8343 Data Sheet

查询ADS8343E/2K5供应商

ADS8343

ADS8343

SBAS183A – JANUARY 2001 – REVISED OCTOBER 2002

16-Bit, 4-Channel Serial Output Sampling ANALOG-TO-DIGITAL CONVERTER

FEATURES DESCRIPTION

BIPOLAR INPUT RANGE

The ADS8343 is a 4-channel, 16-bit sampling Analog-to- PIN-FOR-PIN COMPATIBLE WITH THE Digital (A/D) converter with a synchronous serial interface. ADS7841 AND ADS8341 Typical power dissipation is 8m W at a 100k Hz throughput rate and a +5V supply. The reference voltage (VREF) can be

SINGLE SUPPLY: 2.7V to 5V

varied between 500m V and VCC/2, providing a corresponding

4-CHANNEL SINGLE-ENDED OR

input voltage range of ±VREF. The device includes a shut-

2-CHANNEL DIFFERENTIAL INPUT

down mode which reduces power dissipation to under 15µW. UP TO 100k Hz CONVERSION RATE The ADS8343 is ensured down to 2.7V operation. 86d B SINAD Low power, high speed, and an onboard multiplexer make the ADS8343 ideal for battery-operated systems such as

SERIAL INTERFACE

personal digital assistants, portable multi-channel data log-

SSOP-16 PACKAGE

gers, and measurement equipment. The serial interface also provides low-cost isolation for remote data acquisition. The APPLICATIONS ADS8343 is available in an SSOP-16 package and is en- sured over the –40°C to +85°C temperature range.

DATA ACQUISITION TEST AND MEASUREMENT INDUSTRIAL PROCESS CONTROL PERSONAL DIGITAL ASSISTANTS BATTERY-POWERED SYSTEMS

SAR DCLK

CH0 Comparator

Four Serial

Channel Interface DIN

CH2 Multiplexer and

Control

COM VREF

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

PRODUCTION DATA information is current as of publication date. Copyright © 2001, Texas Instruments Incorporated Products conform to specifications per the terms of Texas Instruments standard warranty. Production processing does not necessarily include testing of all parameters.
