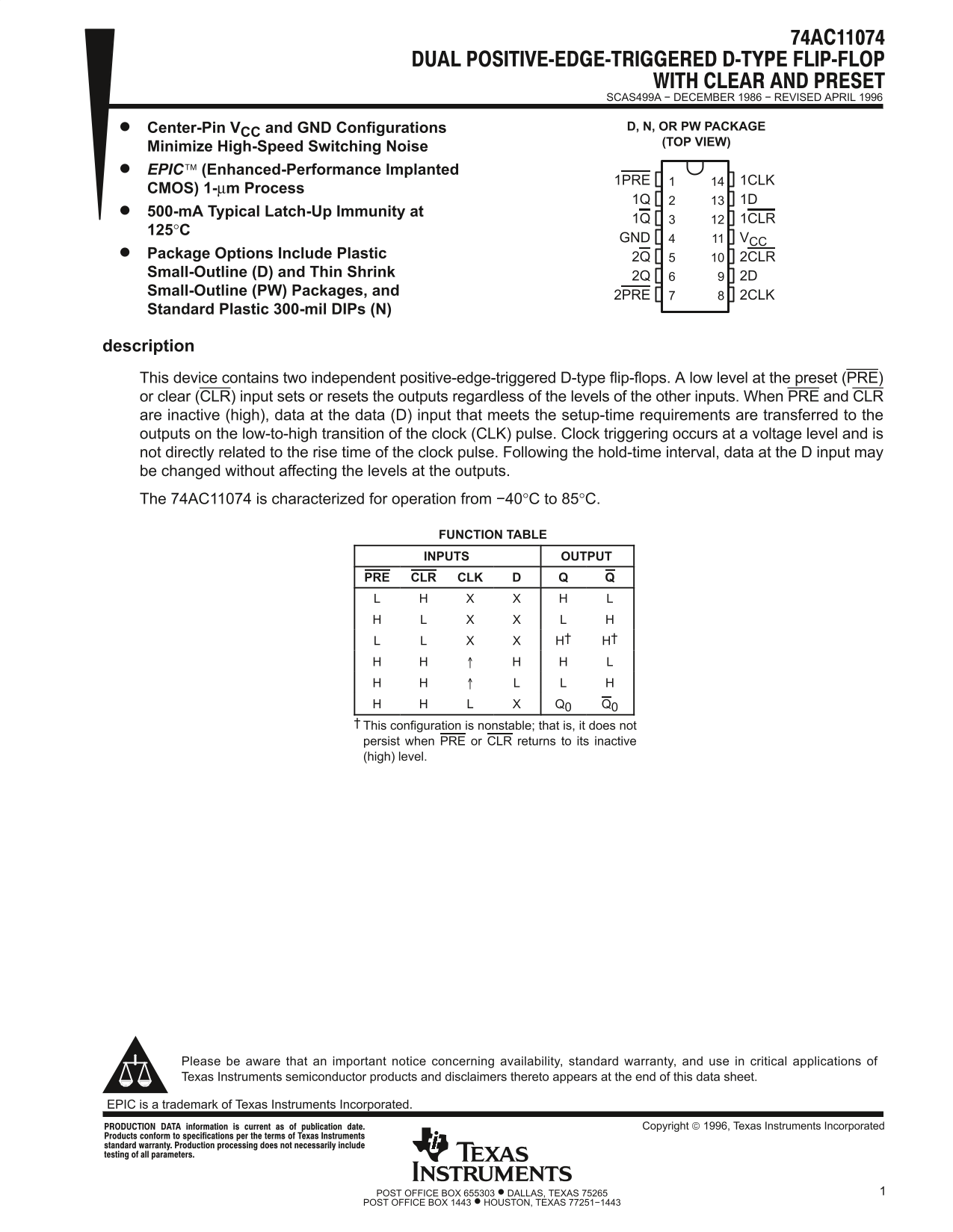

Texas Instruments 74AC11074 Data Sheet
Summary
This versatile IC features two independent positive-edge-triggered D-type flip-flops, making it ideal for developing state machines and complex digital logic circuits. The accompanying manual provides comprehensive data sheets detailing operational timing diagrams, electrical characteristics, required voltage ranges, and various package options (DIP/Small-Outline). Designed for reliable performance across a robust temperature range, this component is essential for professional electronic engineers and hardware designers building embedded systems requiring precise data capture and storage.
Manual Details
| Brand | Texas Instruments |
|---|---|
| Pages | 14 |
| File Size | 515.36 KB |
| Published | July 16, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
When is data transferred from the D input to the Q output?
Data transfers on the low-to-high transition of the clock (CLK) pulse.
What is the required operational voltage range for this device?
The recommended supply voltage operates between 3 V and 5.5 V.
How do PRE or CLR inputs affect the output state?
A low level at either PRE or CLR input forces the outputs to set or reset, regardless of other inputs.
What is the maximum specified continuous output current?
The continuous output current limit (IOL/IOH) is ±50 mA.
