Texas Instruments 1N5400 - 1N5408 Data Sheet
Summary
General-purpose rectifier diodes provide reliable DC power conversion, making them essential components in electronics design. This detailed datasheet serves as a comprehensive resource for electrical engineers, offering absolute maximum ratings, complete electrical performance characteristics, and thermal handling data. It covers performance under varying conditions, including forward current limits, peak surge capacity, and temperature ranges, ensuring optimal integration of high-quality rectification solutions into any circuit board application.
Page 1 Text Content

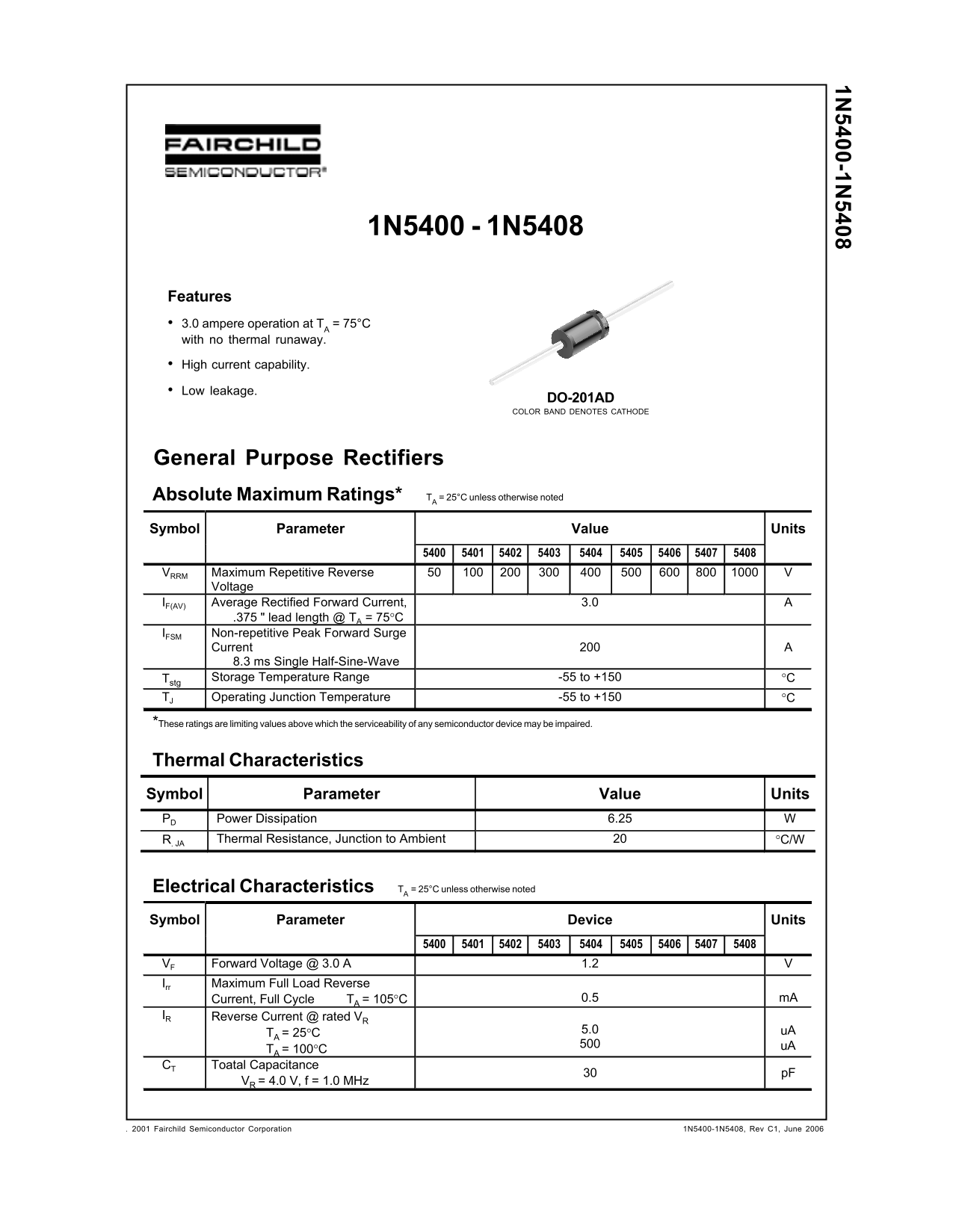

Features 3.0 ampere operation at TA = 75°C with no thermal runaway. High current capability. Low leakage.
DO-201AD COLOR BAND DENOTES CATHODE
General Purpose Rectifiers Absolute Maximum Ratings* TA = 25°C unless otherwise noted Symbol Parameter Value Units 5400 5401 5402 5403 5404 5405 5406 5407 5408 VRRM Maximum Repetitive Reverse 50 100 200 300 400 500 600 800 1000 V Voltage
IF(AV) Average Rectified Forward Current, 3.0 A
.375 " lead length @ TA = 75°C
IFSM Non-repetitive Peak Forward Surge
Current 8.3 ms Single Half-Sine-Wave
Tstg Storage Temperature Range -55 to +150 °C TJ Operating Junction Temperature -55 to +150 °C
*These ratings are limiting values above which the serviceability of any semiconductor device may be impaired.
Thermal Characteristics Symbol Parameter Value Units PD Power Dissipation 6.25 W R. JA Thermal Resistance, Junction to Ambient 20 °C/W
Electrical Characteristics TA = 25°C unless otherwise noted Symbol Parameter Device Units 5400 5401 5402 5403 5404 5405 5406 5407 5408 VF Forward Voltage @ 3.0 A 1.2 V Irr Maximum Full Load Reverse
Current, Full Cycle TA = 105°C 0.5 m A
IR Reverse Current @ rated VR
TA = 25°C
TA = 100°C
CT Toatal Capacitance VR = 4.0 V, f = 1.0 MHz 30 p F
