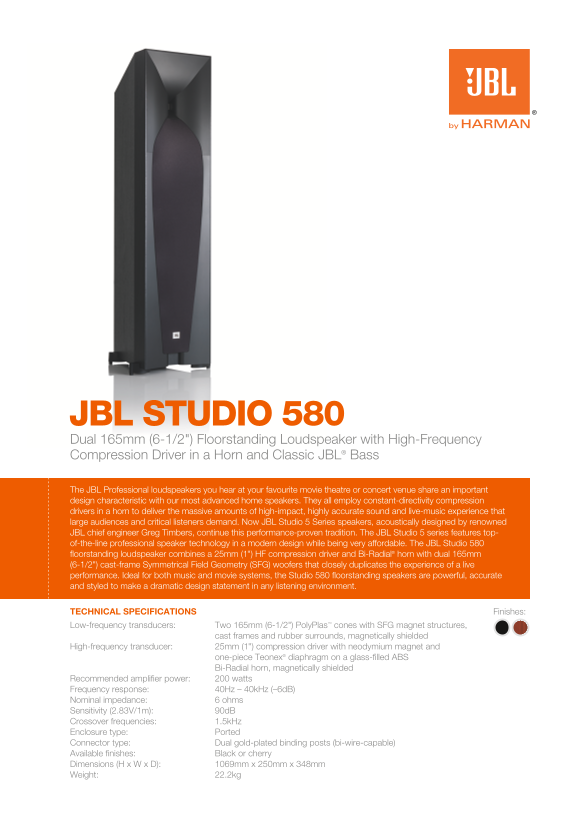

JBL Studio 580 Dual 165mm (6-1/2") Floorstanding Loudspeaker with High-Frequency Compression Driver in a Horn and Classic JBL® Bass The JBL Professional loudspeakers you hear at your favourite movie theatre or concert venue share an important design characteristic with our most advanced home speakers. They all employ constant-directivity compression drivers in a horn to deliver the massive amounts of high-impact, highly accurate sound and live-music experience that large audiences and critical listeners demand. Now JBL Studio 5 Series speakers, acoustically designed by renowned JBL chief engineer Greg Timbers, continue this performance-proven tradition. The JBL Studio 5 series features top- of-the-line professional speaker technology in a modern design while being very affordable. The JBL Studio 580 floorstanding loudspeaker combines a 25mm (1") HF compression driver and Bi-Radial® horn with dual 165mm (6-1/2") cast-frame Symmetrical Field Geometry (SFG) woofers that closely duplicates the experience of a live performance. Ideal for both music and movie systems, the Studio 580 floorstanding speakers are powerful, accurate and styled to make a dramatic design statement in any listening environment.
TECHNICAL SPECIFICATIONS Finishes: Low-frequency transducers: Two 165mm (6-1/2") Poly Plas™ cones with SFG magnet structures,
cast frames and rubber surrounds, magnetically shielded
High-frequency transducer: 25mm (1") compression driver with neodymium magnet and
one-piece Teonex® diaphragm on a glass-filled ABS Bi-Radial horn, magnetically shielded
Recommended amplifier power: 200 watts Frequency response: 40Hz – 40k Hz (–6d B) Nominal impedance: 6 ohms Sensitivity (2.83V/1m): 90d B Crossover frequencies: 1.5k Hz Enclosure type: Ported Connector type: Dual gold-plated binding posts (bi-wire-capable) Available finishes: Black or cherry Dimensions (H x W x D): 1069mm x 250mm x 348mm Weight: 22.2kg
