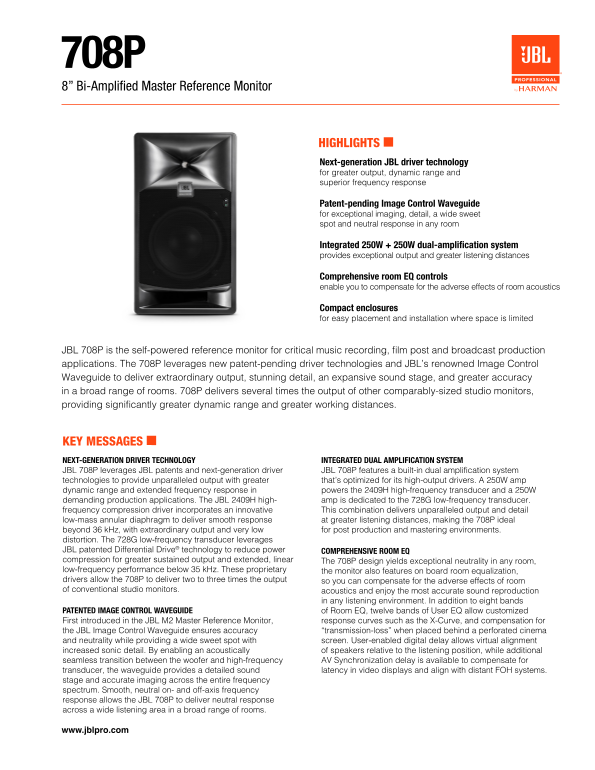

JBL 708P 8 Dual Amplifier Reference Speaker Configuration Guide

708P 8” Bi-Amplified Master Reference Monitor

HIGHLIGHTS 6 Next-generation JBL driver technology for greater output, dynamic range and superior frequency response

Patent-pending Image Control Waveguide for exceptional imaging, detail, a wide sweet spot and neutral response in any room

Integrated 250W + 250W dual-amplification system provides exceptional output and greater listening distances

Comprehensive room EQ controls enable you to compensate for the adverse effects of room acoustics

Compact enclosures for easy placement and installation where space is limited

JBL 708P is the self-powered reference monitor for critical music recording, film post and broadcast production applications. The 708P leverages new patent-pending driver technologies and JBL’s renowned Image Control Waveguide to deliver extraordinary output, stunning detail, an expansive sound stage, and greater accuracy in a broad range of rooms. 708P delivers several times the output of other comparably-sized studio monitors, providing significantly greater dynamic range and greater working distances.

KEY MESSAGES 6 NEXT-GENERATION DRIVER TECHNOLOGY INTEGRATED DUAL AMPLIFICATION SYSTEM JBL 708P leverages JBL patents and next-generation driver JBL 708P features a built-in dual amplification system technologies to provide unparalleled output with greater that’s optimized for its high-output drivers. A 250W amp dynamic range and extended frequency response in powers the 2409H high- frequency transducer and a 250W demanding production applications. The JBL 2409H high- amp is dedicated to the 728G low- frequency transducer. frequency compression driver incorporates an innovative This combination delivers unparalleled output and detail low-mass annular diaphragm to deliver smooth response at greater listening distances, making the 708P ideal beyond 36 k Hz, with extraordinary output and very low for post production and mastering environments. distortion. The 728G low-frequency transducer leverages JBL patented Differential Drive® technology to reduce power COMPREHENSIVE ROOM EQ compression for greater sustained output and extended, linear The 708P design yields exceptional neutrality in any room, low-frequency performance below 35 k Hz. These proprietary the monitor also features on board room equalization, drivers allow the 708P to deliver two to three times the output so you can compensate for the adverse effects of room of conventional studio monitors. acoustics and enjoy the most accurate sound reproduction

in any listening environment. In addition to eight bands

PATENTED IMAGE CONTROL WAVEGUIDE of Room EQ, twelve bands of User EQ allow customized First introduced in the JBL M2 Master Reference Monitor, response curves such as the X-Curve, and compensation for the JBL Image Control Waveguide ensures accuracy “transmission-loss” when placed behind a perforated cinema and neutrality while providing a wide sweet spot with screen. User-enabled digital delay allows virtual alignment increased sonic detail. By enabling an acoustically of speakers relative to the listening position, while additional seamless transition between the woofer and high-frequency AV Synchronization delay is available to compensate for transducer, the waveguide provides a detailed sound latency in video displays and align with distant FOH systems. stage and accurate imaging across the entire frequency spectrum. Smooth, neutral on- and off-axis frequency response allows the JBL 708P to deliver neutral response across a wide listening area in a broad range of rooms.
