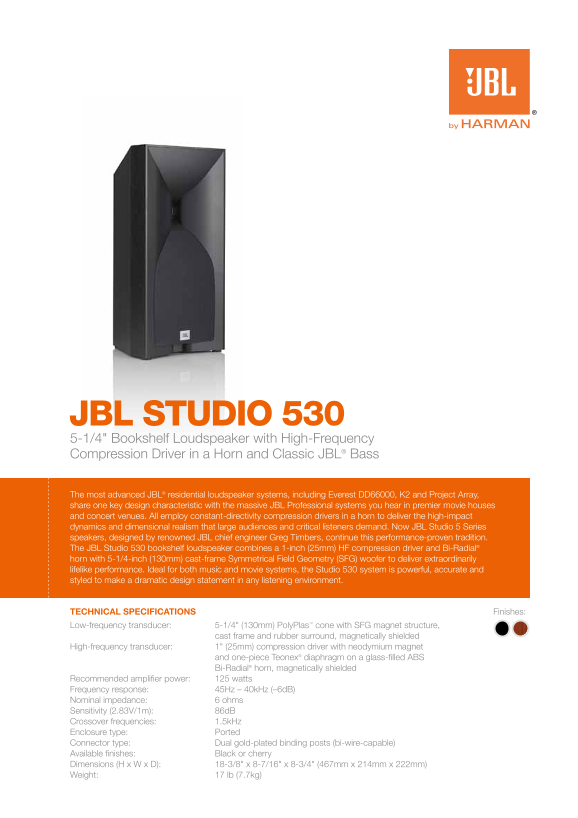

JBL Studio 530 5-1/4" Bookshelf Loudspeaker with High-Frequency Compression Driver in a Horn and Classic JBL® Bass The most advanced JBL® residential loudspeaker systems, including Everest DD66000, K2 and Project Array, share one key design characteristic with the massive JBL Professional systems you hear in premier movie houses and concert venues. All employ constant-directivity compression drivers in a horn to deliver the high-impact dynamics and dimensional realism that large audiences and critical listeners demand. Now JBL Studio 5 Series speakers, designed by renowned JBL chief engineer Greg Timbers, continue this performance-proven tradition. The JBL Studio 530 bookshelf loudspeaker combines a 1-inch (25mm) HF compression driver and Bi-Radial® horn with 5-1/4-inch (130mm) cast-frame Symmetrical Field Geometry (SFG) woofer to deliver extraordinarily lifelike performance. Ideal for both music and movie systems, the Studio 530 system is powerful, accurate and styled to make a dramatic design statement in any listening environment.
TECHNICAL SPECIFICATIONS Finishes:
Low-frequency transducer: 5-1/4" (130mm) Poly Plas™ cone with SFG magnet structure,
cast frame and rubber surround, magnetically shielded
High-frequency transducer: 1" (25mm) compression driver with neodymium magnet
and one-piece Teonex® diaphragm on a glass-filled ABS Bi-Radial® horn, magnetically shielded
Recommended amplifier power: 125 watts Frequency response: 45Hz – 40k Hz (–6d B) Nominal impedance: 6 ohms Sensitivity (2.83V/1m): 86d B Crossover frequencies: 1.5k Hz Enclosure type: Ported Connector type: Dual gold-plated binding posts (bi-wire-capable) Available finishes: Black or cherry Dimensions (H x W x D): 18-3/8" x 8-7/16" x 8-3/4" (467mm x 214mm x 222mm) Weight: 17 lb (7.7kg)
