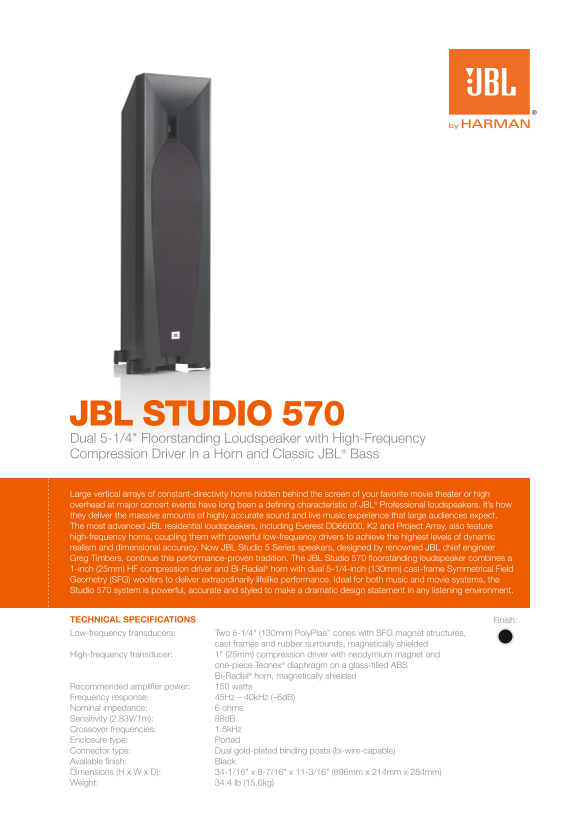

JBL Studio 570 Dual 5-1/4" Floorstanding Loudspeaker with High-Frequency Compression Driver in a Horn and Classic JBL® Bass Large vertical arrays of constant-directivity horns hidden behind the screen of your favorite movie theater or high overhead at major concert events have long been a defining characteristic of JBL® Professional loudspeakers. It’s how they deliver the massive amounts of highly accurate sound and live music experience that large audiences expect. The most advanced JBL residential loudspeakers, including Everest DD66000, K2 and Project Array, also feature high-frequency horns, coupling them with powerful low-frequency drivers to achieve the highest levels of dynamic realism and dimensional accuracy. Now JBL Studio 5 Series speakers, designed by renowned JBL chief engineer Greg Timbers, continue this performance-proven tradition. The JBL Studio 570 floorstanding loudspeaker combines a 1-inch (25mm) HF compression driver and Bi-Radial® horn with dual 5-1/4-inch (130mm) cast-frame Symmetrical Field Geometry (SFG) woofers to deliver extraordinarily lifelike performance. Ideal for both music and movie systems, the Studio 570 system is powerful, accurate and styled to make a dramatic design statement in any listening environment.
TECHNICAL SPECIFICATIONS Finish: Low-frequency transducers: Two 5-1/4" (130mm) Poly Plas™ cones with SFG magnet structures,
cast frames and rubber surrounds, magnetically shielded
High-frequency transducer: 1" (25mm) compression driver with neodymium magnet and
one-piece Teonex® diaphragm on a glass-filled ABS Bi-Radial® horn, magnetically shielded
Recommended amplifier power: 150 watts Frequency response: 45Hz – 40k Hz (–6d B) Nominal impedance: 6 ohms Sensitivity (2.83V/1m): 88d B Crossover frequencies: 1.5k Hz Enclosure type: Ported Connector type: Dual gold-plated binding posts (bi-wire-capable) Available finish: Black Dimensions (H x W x D): 34-1/16" x 8-7/16" x 11-3/16" (896mm x 214mm x 284mm) Weight: 34.4 lb (15.6kg)
