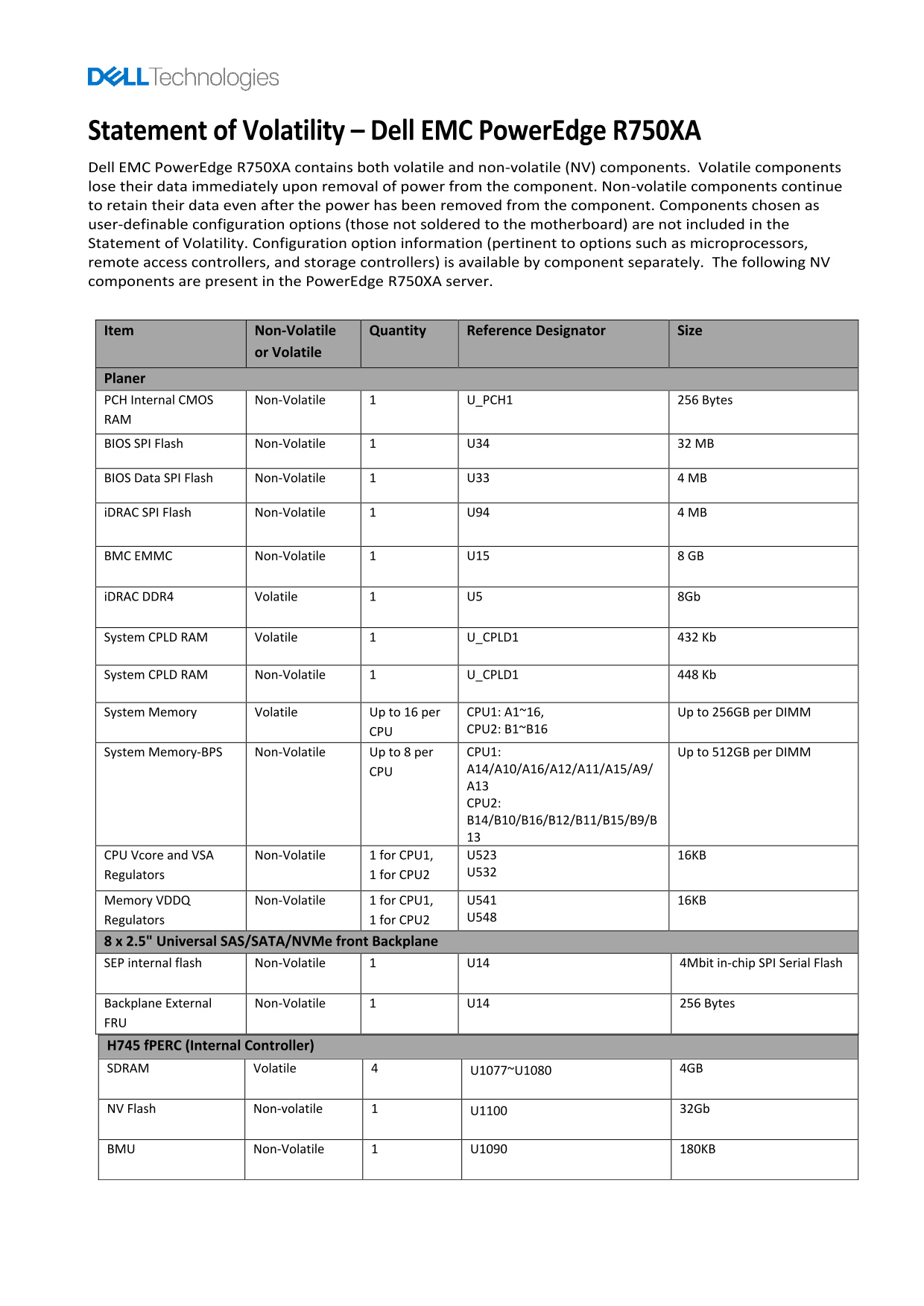

Statement of Volatility – Dell EMC Power Edge R750XA Dell EMC Power Edge R750XA contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately upon removal of power from the component. Non-volatile components continue to retain their data even after the power has been removed from the component. Components chosen as user-definable configuration options (those not soldered to the motherboard) are not included in the Statement of Volatility. Configuration option information (pertinent to options such as microprocessors, remote access controllers, and storage controllers) is available by component separately. The following NV components are present in the Power Edge R750XA server.
Item Non-Volatile Quantity Reference Designator Size
or Volatile
Planer PCH Internal CMOS Non-Volatile 1 U_PCH1 256 Bytes RAM BIOS SPI Flash Non-Volatile 1 U34 32 MB
BIOS Data SPI Flash Non-Volatile 1 U33 4 MB
i DRAC SPI Flash Non-Volatile 1 U94 4 MB
BMC EMMC Non-Volatile 1 U15 8 GB
i DRAC DDR4 Volatile 1 U5 8Gb
System CPLD RAM Volatile 1 U_CPLD1 432 Kb
System CPLD RAM Non-Volatile 1 U_CPLD1 448 Kb
System Memory Volatile Up to 16 per CPU1: A1~16, Up to 256GB per DIMM CPU CPU2: B1~B16 System Memory-BPS Non-Volatile Up to 8 per CPU1: Up to 512GB per DIMM CPU A14/A10/A16/A12/A11/A15/A9/ A13 CPU2: B14/B10/B16/B12/B11/B15/B9/B
CPU Vcore and VSA Non-Volatile 1 for CPU1, U523 16KB Regulators 1 for CPU2 U532
Memory VDDQ Non-Volatile 1 for CPU1, U541 16KB Regulators 1 for CPU2 U548
8 x 2.5" Universal SAS/SATA/NVMe front Backplane SEP internal flash Non-Volatile 1 U14 4Mbit in-chip SPI Serial Flash
Backplane External Non-Volatile 1 U14 256 Bytes FRU H745 f PERC (Internal Controller) SDRAM Volatile 4 U1077~U1080 4GB
NV Flash Non-volatile 1 U1100 32Gb
BMU Non-Volatile 1 U1090 180KB
