Dell EMC PowerEdge R6415 Statement of Volatility
Summary
This statement of volatility document details the volatile and non-volatile components present in the Dell EMC PowerEdge R6415 server. It lists components such as CPU internal CMOS, BIOS SPI flash, iDRAC SPI flash, BMC eMMC, system CPLD, system memory, TPM, LOM NVRAM, power supply microcontrollers, and backplane SEP flash and EEPROM, along with their volatility descriptions and quantities. The document is intended for security professionals and administrators who need to understand data retention characteristics for secure disposal or sanitization of the server.

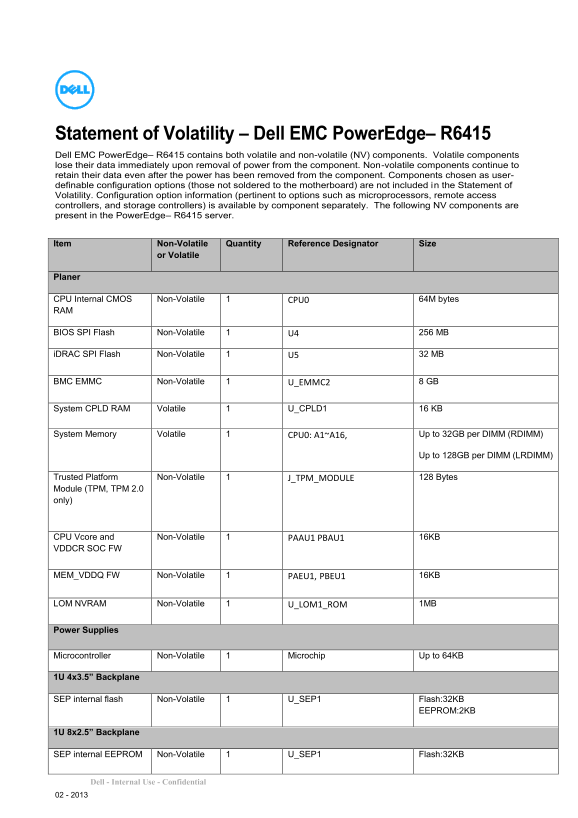

Page 1 Text Content
Statement of Volatility – Dell EMC Power Edge– R6415 Dell EMC Power Edge– R6415 contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately upon removal of power from the component. Non-volatile components continue to retain their data even after the power has been removed from the component. Components chosen as user- definable configuration options (those not soldered to the motherboard) are not included in the Statement of Volatility. Configuration option information (pertinent to options such as microprocessors, remote access controllers, and storage controllers) is available by component separately. The following NV components are present in the Power Edge– R6415 server.
Item Non-Volatile Quantity Reference Designator Size
or Volatile
Planer
CPU Internal CMOS Non-Volatile 1 CPU0 64M bytes RAM
BIOS SPI Flash Non-Volatile 1 U4 256 MB
i DRAC SPI Flash Non-Volatile 1 U5 32 MB
BMC EMMC Non-Volatile 1 U_EMMC2 8 GB
System CPLD RAM Volatile 1 U_CPLD1 16 KB
System Memory Volatile 1 CPU0: A1~A16, Up to 32GB per DIMM (RDIMM)
Up to 128GB per DIMM (LRDIMM)
Trusted Platform Non-Volatile 1 J_TPM_MODULE 128 Bytes Module (TPM, TPM 2.0 only)
CPU Vcore and Non-Volatile 1 PAAU1 PBAU1 16KB VDDCR SOC FW
MEM_VDDQ FW Non-Volatile 1 PAEU1, PBEU1 16KB
LOM NVRAM Non-Volatile 1 U_LOM1_ROM 1MB
Power Supplies
Microcontroller Non-Volatile 1 Microchip Up to 64KB
1U 4x3.5” Backplane
SEP internal flash Non-Volatile 1 U_SEP1 Flash:32KB
EEPROM:2KB
1U 8x2.5” Backplane
SEP internal EEPROM Non-Volatile 1 U_SEP1 Flash:32KB
Dell - Internal Use - Confidential 02 - 2013
Page Summary Contents For Dell EMC PowerEdge R6415 Statement of Volatility
Manual Details
| Brand | Dell |
|---|---|
| Pages | 9 |
| File Size | 845.20 KB |
| Published | June 20, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the difference between volatile and non-volatile memory?
Volatile components lose data immediately upon power removal, while non-volatile components retain data even after power is removed.
What is the purpose of the TPM module?
The TPM Module (TPM 2.0 only) serves as a Trusted Platform Module used for storing encryption keys.
What is the capacity of the System Memory?
The system memory is volatile and supports up to 32GB per DIMM (RDIMM) or up to 128GB per DIMM (LRDIMM).
How do I clear the BOSS SPI Flash memory?
You can clear the BOSS SPI Flash memory by using a Flash tool with the command 'go.nsh w y'.
