Dell EMC PowerEdge R250 Statement of Volatility
Summary
Statement of volatility for the Dell EMC PowerEdge R250 entry-level rack server, documenting all volatile and non-volatile memory components. Non-volatile items include 256-byte PCH CMOS, 32MB BIOS SPI Flash (U6), 4MB BIOS Data Flash (U3), 4MB iDRAC SPI Flash (U7), 8GB BMC EMMC (U21), 448KB System CPLD, and H755/H755N PERC controller with 8GB SDRAM, 512Gb NV Flash, 128Mb SPI Flash, and 128KB NVSRAM. Volatile system memory supports up to 4 DIMMs at 32GB each per CPU.

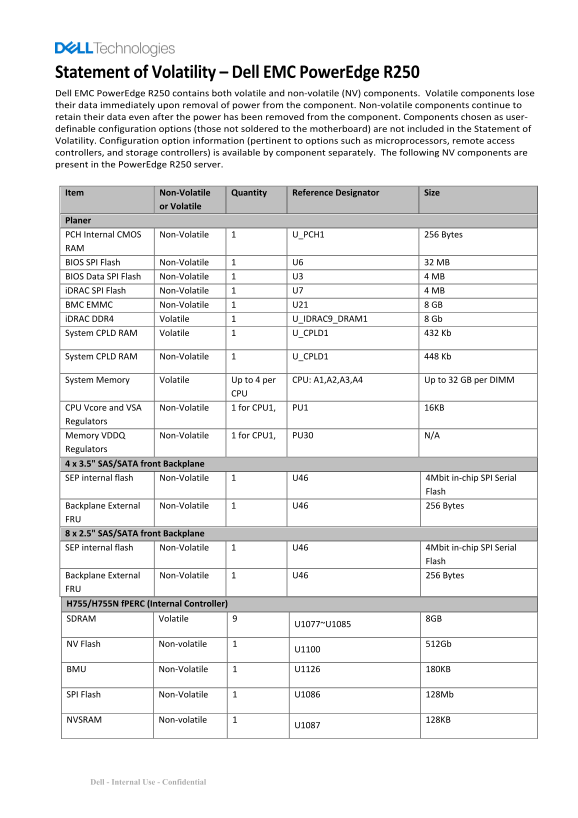

Page 1 Text Content
Statement of Volatility – Dell EMC Power Edge R250 Dell EMC Power Edge R250 contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately upon removal of power from the component. Non-volatile components continue to retain their data even after the power has been removed from the component. Components chosen as user- definable configuration options (those not soldered to the motherboard) are not included in the Statement of Volatility. Configuration option information (pertinent to options such as microprocessors, remote access controllers, and storage controllers) is available by component separately. The following NV components are present in the Power Edge R250 server.
Item Non-Volatile Quantity Reference Designator Size
or Volatile
Planer PCH Internal CMOS Non-Volatile 1 U_PCH1 256 Bytes RAM BIOS SPI Flash Non-Volatile 1 U6 32 MB BIOS Data SPI Flash Non-Volatile 1 U3 4 MB i DRAC SPI Flash Non-Volatile 1 U7 4 MB BMC EMMC Non-Volatile 1 U21 8 GB i DRAC DDR4 Volatile 1 U_IDRAC9_DRAM1 8 Gb System CPLD RAM Volatile 1 U_CPLD1 432 Kb
System CPLD RAM Non-Volatile 1 U_CPLD1 448 Kb
System Memory Volatile Up to 4 per CPU: A1,A2,A3,A4 Up to 32 GB per DIMM
CPU Vcore and VSA Non-Volatile 1 for CPU1, PU1 16KB Regulators Memory VDDQ Non-Volatile 1 for CPU1, PU30 N/A Regulators 4 x 3.5" SAS/SATA front Backplane SEP internal flash Non-Volatile 1 U46 4Mbit in-chip SPI Serial
Flash
Backplane External Non-Volatile 1 U46 256 Bytes FRU 8 x 2.5" SAS/SATA front Backplane SEP internal flash Non-Volatile 1 U46 4Mbit in-chip SPI Serial
Flash
Backplane External Non-Volatile 1 U46 256 Bytes FRU H755/H755N f PERC (Internal Controller) SDRAM Volatile 9 U1077~U1085 8GB
NV Flash Non-volatile 1 U1100 512Gb
BMU Non-Volatile 1 U1126 180KB
SPI Flash Non-Volatile 1 U1086 128Mb
NVSRAM Non-volatile 1 U1087 128KB
Dell - Internal Use - Confidential
Page Summary Contents For Dell EMC PowerEdge R250 Statement of Volatility
Manual Details
| Brand | Dell |
|---|---|
| Pages | 7 |
| File Size | 411.09 KB |
| Published | June 17, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the difference between volatile and non-volatile storage in this server?
Volatile components lose data immediately when power is removed, while Non-volatile (NV) components retain data.
Which onboard components are listed as NV or Volatile?
The system includes NV components like BIOS SPI Flash, iDRAC SPI Flash, and BMC EMMC, alongside volatile memory like System Memory and iDRAC DDR4 RAM.
Can a user manually clear the data in certain flash memories?
SPI Flash allows manual clearing via firmware update; however, highly protected areas like lOM or PSU memory cannot be cleared by the user.
