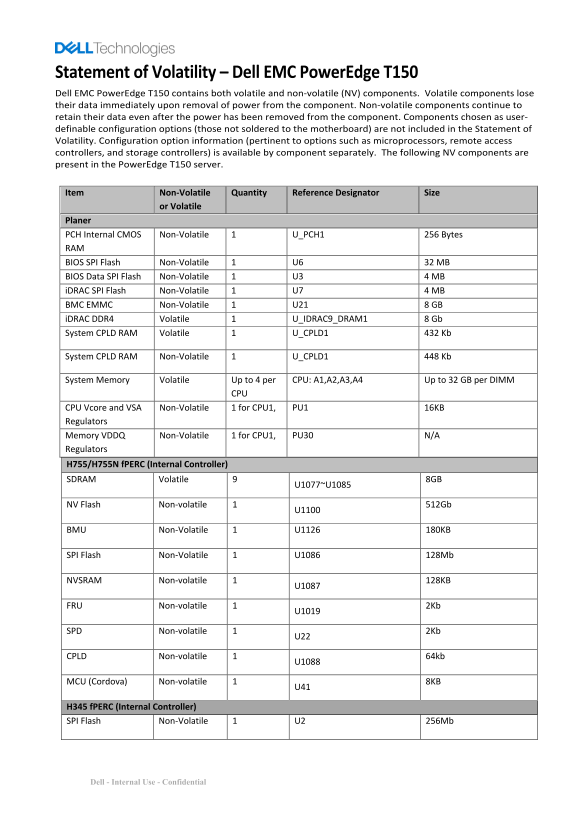

Statement of Volatility – Dell EMC Power Edge T150 Dell EMC Power Edge T150 contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately upon removal of power from the component. Non-volatile components continue to retain their data even after the power has been removed from the component. Components chosen as user- definable configuration options (those not soldered to the motherboard) are not included in the Statement of Volatility. Configuration option information (pertinent to options such as microprocessors, remote access controllers, and storage controllers) is available by component separately. The following NV components are present in the Power Edge T150 server.
Item Non-Volatile Quantity Reference Designator Size
or Volatile
Planer PCH Internal CMOS Non-Volatile 1 U_PCH1 256 Bytes RAM BIOS SPI Flash Non-Volatile 1 U6 32 MB BIOS Data SPI Flash Non-Volatile 1 U3 4 MB i DRAC SPI Flash Non-Volatile 1 U7 4 MB BMC EMMC Non-Volatile 1 U21 8 GB i DRAC DDR4 Volatile 1 U_IDRAC9_DRAM1 8 Gb System CPLD RAM Volatile 1 U_CPLD1 432 Kb
System CPLD RAM Non-Volatile 1 U_CPLD1 448 Kb
System Memory Volatile Up to 4 per CPU: A1,A2,A3,A4 Up to 32 GB per DIMM
CPU Vcore and VSA Non-Volatile 1 for CPU1, PU1 16KB Regulators Memory VDDQ Non-Volatile 1 for CPU1, PU30 N/A Regulators H755/H755N f PERC (Internal Controller) SDRAM Volatile 9 U1077~U1085 8GB
NV Flash Non-volatile 1 U1100 512Gb
BMU Non-Volatile 1 U1126 180KB
SPI Flash Non-Volatile 1 U1086 128Mb
NVSRAM Non-volatile 1 U1087 128KB
FRU Non-volatile 1 U1019 2Kb
SPD Non-volatile 1 U22 2Kb
CPLD Non-volatile 1 U1088 64kb
MCU (Cordova) Non-volatile 1 U41 8KB
H345 f PERC (Internal Controller) SPI Flash Non-Volatile 1 U2 256Mb
