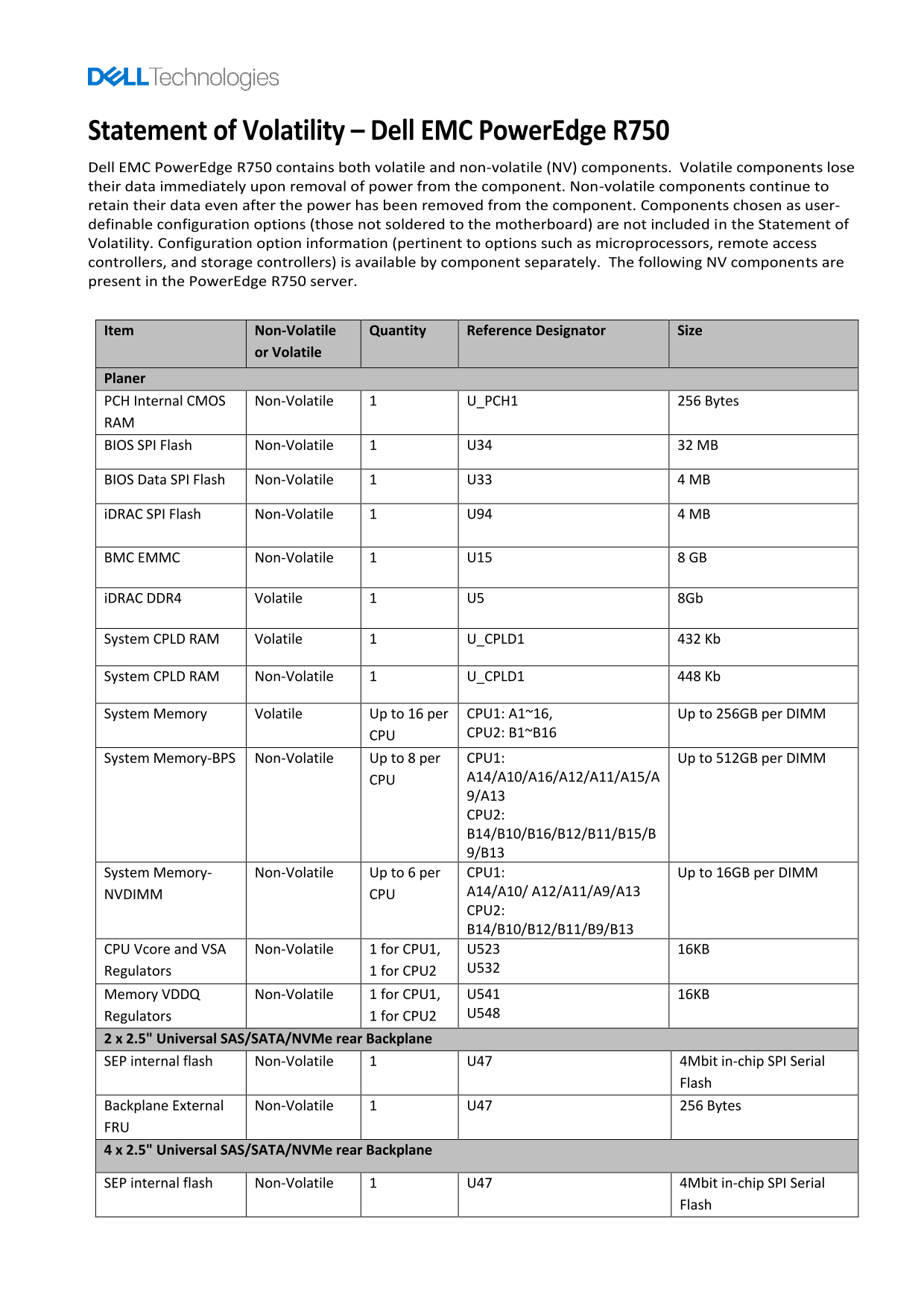

Statement of Volatility – Dell EMC Power Edge R750 Dell EMC Power Edge R750 contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately upon removal of power from the component. Non-volatile components continue to retain their data even after the power has been removed from the component. Components chosen as user- definable configuration options (those not soldered to the motherboard) are not included in the Statement of Volatility. Configuration option information (pertinent to options such as microprocessors, remote access controllers, and storage controllers) is available by component separately. The following NV components are present in the Power Edge R750 server.
Item Non-Volatile Quantity Reference Designator Size
or Volatile
Planer PCH Internal CMOS Non-Volatile 1 U_PCH1 256 Bytes RAM BIOS SPI Flash Non-Volatile 1 U34 32 MB
BIOS Data SPI Flash Non-Volatile 1 U33 4 MB
i DRAC SPI Flash Non-Volatile 1 U94 4 MB
BMC EMMC Non-Volatile 1 U15 8 GB
i DRAC DDR4 Volatile 1 U5 8Gb
System CPLD RAM Volatile 1 U_CPLD1 432 Kb
System CPLD RAM Non-Volatile 1 U_CPLD1 448 Kb
System Memory Volatile Up to 16 per CPU1: A1~16, Up to 256GB per DIMM CPU CPU2: B1~B16 System Memory-BPS Non-Volatile Up to 8 per CPU1: Up to 512GB per DIMM CPU A14/A10/A16/A12/A11/A15/A 9/A13 CPU2: B14/B10/B16/B12/B11/B15/B 9/B13 System Memory- Non-Volatile Up to 6 per CPU1: Up to 16GB per DIMM NVDIMM CPU A14/A10/ A12/A11/A9/A13 CPU2: B14/B10/B12/B11/B9/B13 CPU Vcore and VSA Non-Volatile 1 for CPU1, U523 16KB Regulators 1 for CPU2 U532 Memory VDDQ Non-Volatile 1 for CPU1, U541 16KB Regulators 1 for CPU2 U548
2 x 2.5" Universal SAS/SATA/NVMe rear Backplane SEP internal flash Non-Volatile 1 U47 4Mbit in-chip SPI Serial
Flash
Backplane External Non-Volatile 1 U47 256 Bytes FRU 4 x 2.5" Universal SAS/SATA/NVMe rear Backplane
SEP internal flash Non-Volatile 1 U47 4Mbit in-chip SPI Serial
Flash
Page Summary Contents For Dell Statement of Volatility – Dell EMC PowerEdge R750 Owner's Manual
Manual Details
| Brand | Dell |
|---|---|
| Pages | 13 |
| File Size | 523.64 KB |
| Published | June 23, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the difference between volatile and non-volatile components in this server?
Volatile components lose data immediately when power is removed, while Non-volatile components retain their data.
Are there any types of memory or flash areas that cannot be manually cleared by a user?
Yes. Memory areas like Dell SW, LOM SPI FLASH and Update Package(DUP) are protected from user clearing and updates.
What physical backplane options are available for storage expansion?
Available options include 2.5" Universal SAS/SATA/NVMe rear and front backplanes, as well as 3.5" SAS/SATA front backplates.
