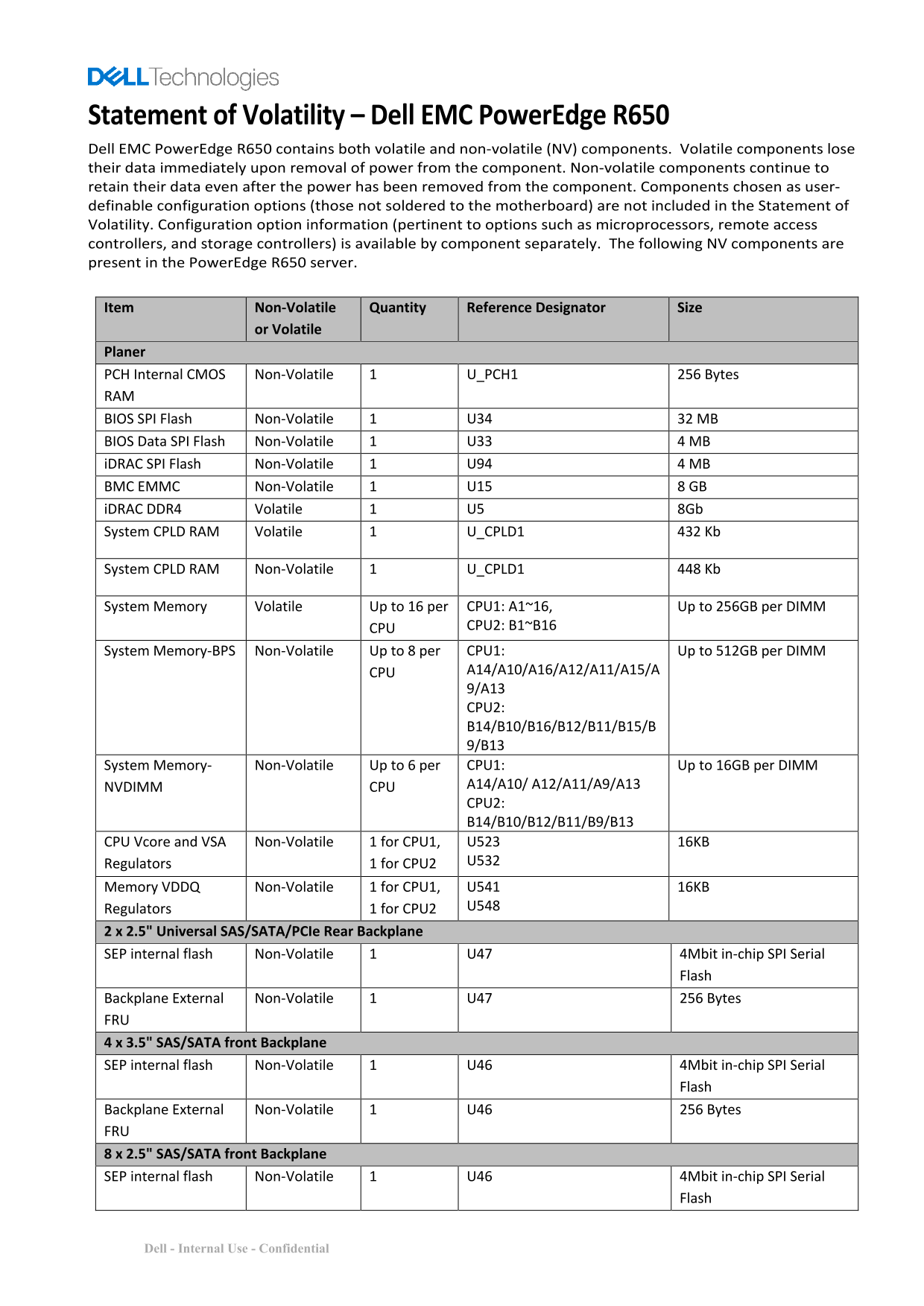

Statement of Volatility – Dell EMC Power Edge R650 Dell EMC Power Edge R650 contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately upon removal of power from the component. Non-volatile components continue to retain their data even after the power has been removed from the component. Components chosen as user- definable configuration options (those not soldered to the motherboard) are not included in the Statement of Volatility. Configuration option information (pertinent to options such as microprocessors, remote access controllers, and storage controllers) is available by component separately. The following NV components are present in the Power Edge R650 server.
Item Non-Volatile Quantity Reference Designator Size
or Volatile
Planer PCH Internal CMOS Non-Volatile 1 U_PCH1 256 Bytes RAM BIOS SPI Flash Non-Volatile 1 U34 32 MB BIOS Data SPI Flash Non-Volatile 1 U33 4 MB i DRAC SPI Flash Non-Volatile 1 U94 4 MB BMC EMMC Non-Volatile 1 U15 8 GB i DRAC DDR4 Volatile 1 U5 8Gb System CPLD RAM Volatile 1 U_CPLD1 432 Kb
System CPLD RAM Non-Volatile 1 U_CPLD1 448 Kb
System Memory Volatile Up to 16 per CPU1: A1~16, Up to 256GB per DIMM CPU CPU2: B1~B16 System Memory-BPS Non-Volatile Up to 8 per CPU1: Up to 512GB per DIMM CPU A14/A10/A16/A12/A11/A15/A 9/A13 CPU2: B14/B10/B16/B12/B11/B15/B 9/B13 System Memory- Non-Volatile Up to 6 per CPU1: Up to 16GB per DIMM NVDIMM CPU A14/A10/ A12/A11/A9/A13 CPU2: B14/B10/B12/B11/B9/B13 CPU Vcore and VSA Non-Volatile 1 for CPU1, U523 16KB Regulators 1 for CPU2 U532 Memory VDDQ Non-Volatile 1 for CPU1, U541 16KB Regulators 1 for CPU2 U548
2 x 2.5" Universal SAS/SATA/PCIe Rear Backplane SEP internal flash Non-Volatile 1 U47 4Mbit in-chip SPI Serial
Flash
Backplane External Non-Volatile 1 U47 256 Bytes FRU 4 x 3.5" SAS/SATA front Backplane SEP internal flash Non-Volatile 1 U46 4Mbit in-chip SPI Serial
Flash
Backplane External Non-Volatile 1 U46 256 Bytes FRU 8 x 2.5" SAS/SATA front Backplane SEP internal flash Non-Volatile 1 U46 4Mbit in-chip SPI Serial
Flash
