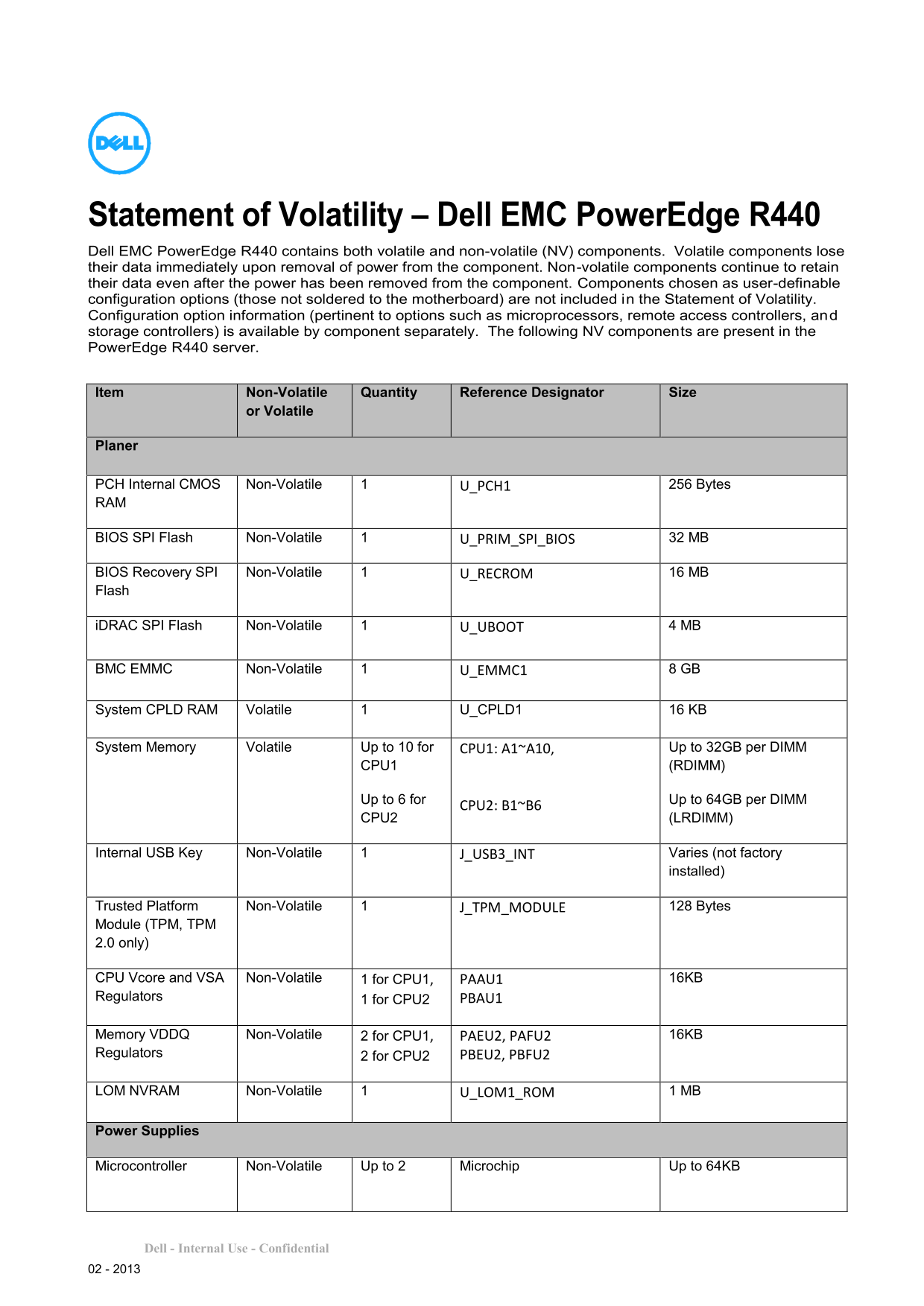

Statement of Volatility – Dell EMC Power Edge R440 Dell EMC Power Edge R440 contains both volatile and non-volatile (NV) components. Volatile components lose their data immediately upon removal of power from the component. Non-volatile components continue to retain their data even after the power has been removed from the component. Components chosen as user-definable configuration options (those not soldered to the motherboard) are not included in the Statement of Volatility. Configuration option information (pertinent to options such as microprocessors, remote access controllers, and storage controllers) is available by component separately. The following NV components are present in the Power Edge R440 server.
Item Non-Volatile Quantity Reference Designator Size
or Volatile
Planer
PCH Internal CMOS Non-Volatile 1 U_PCH1 256 Bytes RAM
BIOS SPI Flash Non-Volatile 1 U_PRIM_SPI_BIOS 32 MB
BIOS Recovery SPI Non-Volatile 1 U_RECROM 16 MB Flash
i DRAC SPI Flash Non-Volatile 1 U_UBOOT 4 MB
BMC EMMC Non-Volatile 1 U_EMMC1 8 GB
System CPLD RAM Volatile 1 U_CPLD1 16 KB
System Memory Volatile Up to 10 for CPU1: A1~A10, Up to 32GB per DIMM
CPU1 (RDIMM)
Up to 6 for Up to 64GB per DIMM
CPU2: B1~B6
CPU2 (LRDIMM)
Internal USB Key Non-Volatile 1 J_USB3_INT Varies (not factory
installed)
Trusted Platform Non-Volatile 1 J_TPM_MODULE 128 Bytes Module (TPM, TPM 2.0 only)
CPU Vcore and VSA Non-Volatile 1 for CPU1, PAAU1 16KB Regulators 1 for CPU2 PBAU1
Memory VDDQ Non-Volatile 2 for CPU1, PAEU2, PAFU2 16KB Regulators 2 for CPU2 PBEU2, PBFU2
LOM NVRAM Non-Volatile 1 U_LOM1_ROM 1 MB
Power Supplies
Microcontroller Non-Volatile Up to 2 Microchip Up to 64KB
