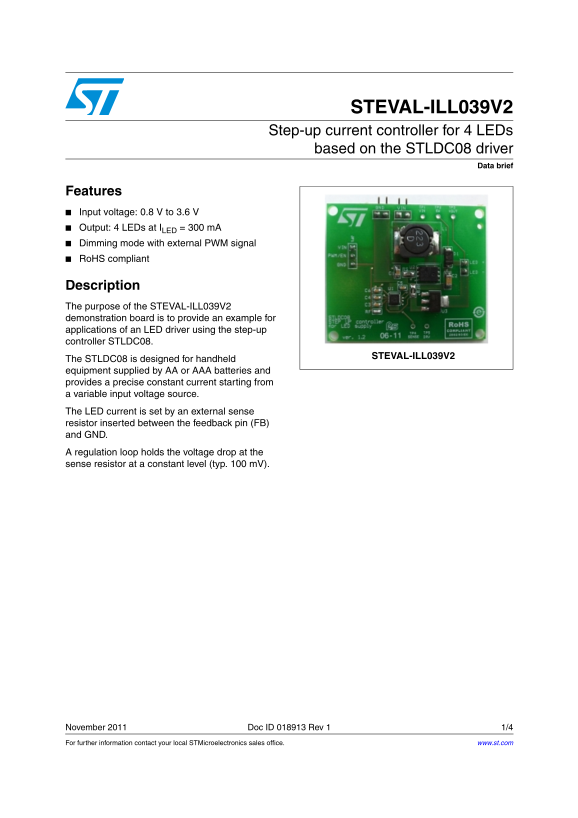

Page 1 Text Content
STEVAL-ILL039V2
Step-up current controller for 4 LEDs based on the STLDC08 driver
Data brief
Features Input voltage: 0.8 V to 3.6 V Output: 4 LEDs at ILED = 300 m A Dimming mode with external PWM signal Ro HS compliant
Description The purpose of the STEVAL-ILL039V2 demonstration board is to provide an example for applications of an LED driver using the step-up controller STLDC08.
STEVAL-ILL039V2
The STLDC08 is designed for handheld equipment supplied by AA or AAA batteries and provides a precise constant current starting from a variable input voltage source. The LED current is set by an external sense resistor inserted between the feedback pin (FB) and GND. A regulation loop holds the voltage drop at the sense resistor at a constant level (typ. 100 m V).
November 2011 Doc ID 018913 Rev 1 1/4 For further information contact your local STMicroelectronics sales office. www.st.com
