ST HCF4030B QUAD EXCLUSIVE-OR GATE Data Sheet
Summary
The HCF4030B is a highly reliable integrated circuit featuring four independent Exclusive-OR gates, ideal for robust digital logic implementations. This comprehensive manual provides electrical engineers and hardware designers with complete specifications, including operational parameters, absolute maximum ratings, and performance curves. Whether you are building parity checkers or complex signal processing circuits, the detailed data on voltage thresholds, timing delays, and package options (DIP/SOP) ensures reliable integration for professional electronic design projects.

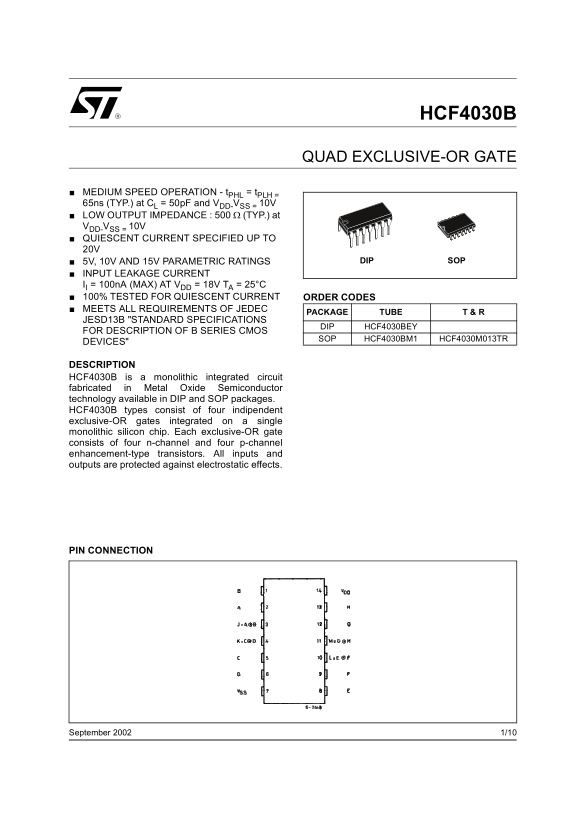

Page 1 Text Content
HCF4030B
QUAD EXCLUSIVE-OR GATE
MEDIUM SPEED OPERATION - t PHL = t PLH = 65ns (TYP.) at CL = 50p F and VDD-VSS = 10V LOW OUTPUT IMPEDANCE : 500 Ω (TYP.) at VDD-VSS = 10V QUIESCENT CURRENT SPECIFIED UP TO 20V
5V, 10V AND 15V PARAMETRIC RATINGS DIP SOP
INPUT LEAKAGE CURRENT II = 100n A (MAX) AT VDD = 18V TA = 25°C 100% TESTED FOR QUIESCENT CURRENT ORDER CODES MEETS ALL REQUIREMENTS OF JEDEC
PACKAGE TUBE T & R
JESD13B "STANDARD SPECIFICATIONS
DIP HCF4030BEY
FOR DESCRIPTION OF B SERIES CMOS
SOP HCF4030BM1 HCF4030M013TR
DEVICES"
DESCRIPTION HCF4030B is a monolithic integrated circuit fabricated in Metal Oxide Semiconductor technology available in DIP and SOP packages. HCF4030B types consist of four indipendent exclusive-OR gates integrated on a single monolithic silicon chip. Each exclusive-OR gate consists of four n-channel and four p-channel enhancement-type transistors. All inputs and outputs are protected against electrostatic effects.
PIN CONNECTION
1/10September 2002
Page Summary Contents For ST HCF4030B QUAD EXCLUSIVE-OR GATE Data Sheet
Manual Details
| Brand | QUAD |
|---|---|
| Pages | 10 |
| File Size | 562.62 KB |
| Published | May 27, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How many independent XOR gates does the HCF4030B chip contain?
The HCF4030B contains four independent exclusive-OR gates integrated on one silicon chip.
What is the recommended operating supply voltage range for this IC?
The device operates under recommended conditions with a supply voltage (VDD) between 3V and 20V.
What are the minimum low output voltages (OL) specified for 15V operation?
For 15V, the lowest specified output voltage is greater than or equal to 0.05V.
What are the absolute maximum limits for operating temperature?
While recommended use is -55 to +125°C, it can be stored at temperatures from -65 to +150°C.
