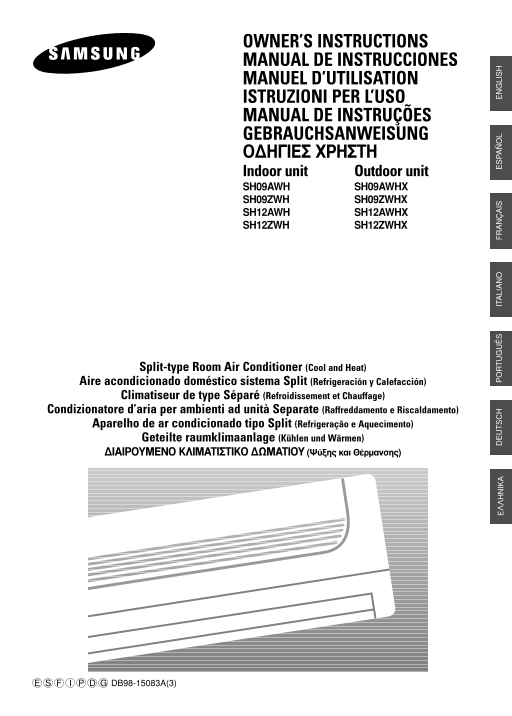

OWNER’S INSTRUCTIONS MANUAL DE INSTRUCCIONES MANUEL D’UTILISATION ISTRUZIONI PER L’USO MANUAL DE INSTRUÇÕES GEBRAUCHSANWEISUNG √¢∏°π∂™ Ã∏™∆∏ Indoor unit Outdoor unit SH09AWH SH09AWHX SH09ZWH SH09ZWHX SH12AWH SH12AWHX SH12ZWH SH12ZWHX
Split-type Room Air Conditioner (Cool and Heat)
Aire acondicionado doméstico sistema Split (Refrigeración y Calefacción) Climatiseur de type Séparé (Refroidissement et Chauffage) Condizionatore d’aria per ambienti ad unità Separate (Raffreddamento e Riscaldamento) Aparelho de ar condicionado tipo Split (Refrigeração e Aquecimento)
Geteilte raumklimaanlage (Kühlen und Wärmen) ¢IAIPOYMENO K§IMATI™TIKO ¢øMATIOY (æ‡Í˘ Î·È £¤ÚÌ·ÓÛ˘)
IK IT LI IS LI
DB98-15083A(3)
Page Summary Contents For Samsung SH09ZWH XFO User Guide
Page 1
OWNER’S INSTRUCTIONS MANUAL DE INSTRUCCIONES MANUEL D’UTILISATION ISTRUZIONI PER L’USO MANUAL DE INSTRUÇÕES GEBRAUCHSANWEISUNG √¢∏°π∂™ Ã∏™∆∏ Indoor unit Outdoor unit SH09AWH SH09AWHX SH09ZWH SH09ZWHX...
Page 2
Safety Precautions The following safety precautions must be taken when using your air conditioner. Risk of electric shock. • Can cause injury or death. • Disconnect all WARNING remote electric power s...
Page 3
Contents PREPARING YOUR AIR CONDITIONER ■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . ...
Page 4
View of the Unit The design and shape are subject to change according to the model. Indoor Unit Temperature sensor On/Off switch Air filter Air flow blades Air Inlet (under the grille) (outlet) Operat...
Page 5
Outdoor Unit SH30ZC1(C2)X Air Inlet (Rear) Air Outlet Connection Valve
Page 6
Remote Control - Buttons and Display Remote control transmission indicator Temperature and Timer setting 1 Hour Timer indicator Battery life indicator On Timer setting Off Timer setting Operating mode...
Page 7
Getting Started You have just purchased a split type air conditioner and it has been installed by your installation specialist. Your Owner’s Instructions contains valuable information on using your ai...
Page 8
Inserting the Remote Control Batteries You must insert or replace the remote control batteries when : You purchase the air conditioner The remote control does not work correctly Note Use two AAA, LR03...
Page 9
Selecting the Automatic Operating Mode You can start the air conditioner in Auto mode from your remote control. In the Auto mode, the cooling and heating operation is selected automatically. You can a...
Page 10
Cooling Your Room You must select the Cool mode if you wish to adjust the: Cooling temperature Fan speed when cooling If necessary, press the button. Result: The operation indicator on the indoor unit...
Page 11
Heating Your Room You must select the Heat mode if you wish to adjust the: Heating temperature Fan speed when heating If necessary, press the button. Result: The operation indicator on the indoor unit...
Page 12
Removing Excess Humidity If the atmosphere in your room is very humid or damp, you can remove excess humidity without lowering the room temperature too much. If necessary, press the button. Result: Th...
Page 13
Airing Your Room If the atmosphere in your room is stale, you can air the room using the Fan feature. If necessary, press the button. Result: The operation indicator on the indoor unit lights up. The ...
Page 14
Changing the Room Temperature Quickly The Turbo cooling/heating function is used to cool or heat your room as quickly as possible. Example : You have just come home and find that the room is very hot....
Page 15
Selecting Energy Saving Mode You can save energy even during operation in the Cool and Heat mode. In the Cool mode, the temperature will rise and in the Heat mode, the temperature will fall, resulting...
Page 16
Adjusting the Air Flow Direction Vertically Depending on the position of the indoor unit on the wall of your room, you can adjust the position of the outer air flow blade on the bottom of the unit, th...
Page 17
Adjusting the Air Flow Direction Horizontally There are two sets of inner air flow blades. Just as the outer air flow blade can be adjusted vertically, the inner blades can be adjusted horizontally. A...
Page 18
Setting the On Timer The On Timer enables you to switch on the air conditioner automatically after a given period of time. You can set the period of time from 1 hour to 24 hours. To set the operating ...
Page 19
Setting the Off Timer The Off Timer enables you to switch off the air conditioner automatically after a given period of time. You can set the period of time from 1 hour to 24 hours. To set the operati...
Page 20
Setting the Sleep Timer The Sleep Timer can be used when you are cooling or heating your room to switch the air conditioner off automatically after a period of six hours. Note If you wish to switch th...
Page 21
Setting the 1 Hour Timer The 1 Hour Timer enables each mode to operate only for an hour and stop automatically with just one touch of the 1 Hour Timer button. It is good for you when you feel setting ...
Page 22
Operating Recommendations Here are a few recommendations that you should follow when using your air conditioner. Topic Recommendation Heating performances The heat pump inside the air conditioner abso...
Page 23
Temperature and Humidity Ranges The following table indicates the temperature and humidity ranges within which the air conditioner can be used. If the air conditioner is used at... Then... High temper...
Page 24
Solving Common Problems Before contacting the after-sales service, perform the following simple checks. They may save you the time and expense of an unnecessary call. Problem Explanation/Solution The ...
Page 25
Cleaning Your Air Conditioner To get the best possible use out of your air conditioner, you must clean it regularly to remove the dust that accumulates on the air filter. IMPORTANT Before cleaning you...
Page 26
