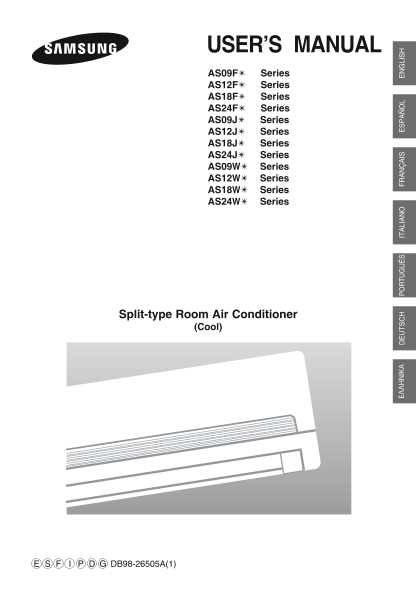

USER’S MANUAL AS09F Series AS12F Series AS18F Series AS24F Series AS09J Series AS12J Series AS18J Series AS24J Series AS09W Series AS12W Series AS18W Series AS24W Series Split-type Roo...
Page 2
Register your product at www.samsung.com/global/register Safety Precautions The following safety precautions must be taken when using your air conditioner. Risk of electric shock. • Can cause injury o...
Page 3
Contents PREPARING YOUR AIR CONDITIONER Safety Precautions ................................................................. View of the Unit .......................................................
Page 4
View of the Unit The design and shape are subject to change according to the model. Indoor Unit Air Inlet Temperature sensor Power(On/Off) button Air filter Air flow blades (under the grille) (outlet)...
Page 5
View of the Unit Outdoor Unit AS09Series Air Inlet (Rear) Air Outlet Connection Valve Outdoor Unit AS12Series Air Inlet (Rear) Air Outlet Connection Valve Outdoor Unit AS18Series Air Inlet (R...
Page 6
Remote Control - Buttons and Display Remote control transmission indicator Mode selection button Operating mode (AUTO, COOL, ( AUTO, COOL, DRY, FAN) DRY, FAN) Temperature adjustment buttons Temperatur...
Page 7
Getting Started You have just purchased a split type air conditioner and it has been installed by your installation specialist. Your Owner’s Instructions contains valuable information on using your ai...
Page 8
Selecting the Automatic Operating Mode You can start the air conditioner in Auto mode from your remote control. If necessary, press the button. Result: The operation indicator on the indoor unit lig...
Page 9
Cooling Your Room You must select the Cool mode if you wish to adjust the: Cooling temperature Fan speed when cooling If necessary, press the button. Result: The operation indicator on the indoo...
Page 10
Removing Excess Humidity If the atmosphere in your room is very humid or damp, you can remove excess humidity without lowering the room temperature too much. If necessary, press the button. Result: ...
Page 11
Airing Your Room If the atmosphere in your room is stale, you can air the room using the Fan feature. If necessary, press the button. Result: The operation indicator on the indoor unit lights up. ...
Page 12
Changing the Room Temperature Quickly The Turbo cooling function is used to cool your room as quickly as possible. Example : You have just come home and find that the room is very hot. You wish to coo...
Page 13
Adjusting the Air Flow Direction Vertically Depending on the position of the indoor unit on the wall of your room, you can adjust the position of the outer air flow blade on the bottom of the unit, th...
Page 14
Setting the On Timer The On Timer enables you to switch on the air conditioner automatically after a given period of time. You can set the period of time from 0.5 hour to 24 hours. To set the operatin...
Page 15
Setting the Off Timer The Off Timer enables you to switch off the air conditioner automatically after a given period of time. You can set the period of time from 0.5 hour to 24 hours. To set the opera...
Page 16
Selecting Good Morning Mode For cool only model: The Good Morning function can be set whether the air conditioner is switched on or off, and this function can be selected for any mode. Selecting the G...
Page 17
Temperature and Humidity Ranges The following table indicates the temperature and humidity ranges within which the air conditioner can be used. If the air conditioner is used at... Then... High temper...
Page 18
Solving Common Problems Before contacting the after-sales service, perform the following simple checks. They may save you the time and expense of an unnecessary call. Problem Explanation/Solution The ...
Page 19
Cleaning Your Air Conditioner To get the best possible use out of your air conditioner, you must clean it regularly to remove the dust that accumulates on the air filter. Before cleaning your air cond...
Page 20
