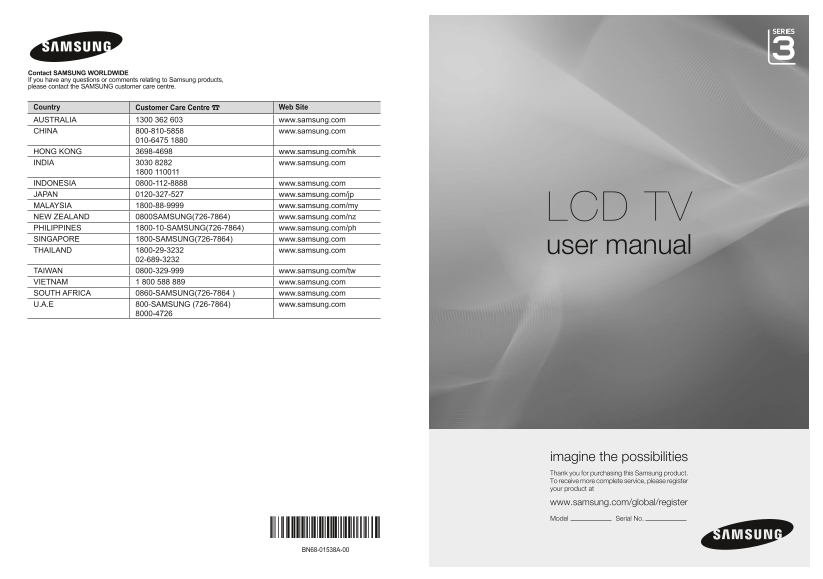

Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Country Customer Care Centre Web Site AUSTRALIA 1300 362 ...
Page 2
Precautions When Displaying a Still Image A still image may cause permanent damage to the TV screen. Do not display a still image on the LCD panel for more than 2 hours as it can cause screen image re...
Page 3
Contents Conne Ct Ing an D Pre Par Ing Your t V Sett Ing the t Ime List of Parts ........................................................ Setting and Displaying the Current Time .......... Installing ...
Page 4
list of Parts Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer. M4XL16 Remote Control & Batteries Power Cord Cover-Bottom Stand Scr...
Page 5
Viewing the Control Panel Side Panel buttons The product colour and shape may vary depending on the model. Sour Ce Speakers Toggles between all the available input (Power) sources (TV, AV, Component1,...
Page 6
Viewing the Connection Panel [t V rear Panel] AV IN 2 Power Input The product colour and shape may vary depending on the model.➣ Whenever you connect an external device to your TV, make sure that powe...
Page 7
DVI In(h Dm I) [r-au DIo-l] DVI audio outputs for external devices. Supported modes for HDMI/DVI and Component HDMI/DVI 50Hz HDMI/DVI 60Hz Component 4 au DIo out [r-au DIo-l] Connect RCA audio cables...
Page 8
Viewing the remote Control 1 Television Standby button teletext Functions 2 Selects the TV mode directly 2 Exit from the teletext display 3 Number buttons for direct 7 Teletext size selection channel ...
Page 9
Installing Batteries in the remote Control 1. Lift the cover at the back of the remote control upward as shown in the figure. . Install two AAA size batteries. Make sure to match the "+" and...
Page 10
Viewing the menus t V Picture 1. With the power on, press the menu button. mode : Standard Backlight The main menu appears on the screen. The menu’ s left side Contrast 9 TOOLS Brightness has icons:...
Page 11
Plug & Play When the t V is initially powered on, several basic settings Plug & Play proceed automatically and subsequently. the following settings are available. 1. Press the Po Wer button on...
Page 12
If you want to reset this feature... t V Setup Plug & Play 1. Press the menu button to display the menu. language : english time Press the ▲ or ▼ button to select "Setup" then pres...
Page 13
Storing Channels manually t V Channel You can store television channels, including those received area : asia/W.europe auto Store via cable networks. manual Store Channel manager When storing ...
Page 14
adding / locking Channels t V Channel using the Channel manager, you can conveniently lock or add area : asia/W.europe channels. auto Store manual Store Channel manager 1. Press the menu butto...
Page 15
Sorting the Stored Channels t V Channel this operation allows you to change the programme numbers area : asia/W.europe of the stored channels. auto Store manual Store this operation may be neces...
Page 16
Fine tuning Channel reception use fine tuning to manually adjust a particular channel for t V Channel optimal reception. area : asia/W.europe auto Store manual Store 1. Use the number buttons to...
Page 17
Changing the Picture Standard You can select the type of picture which best corresponds to t V Picture mode : Standard your viewing requirements. Backlight Contrast 9 1. Press the menu button to dis...
Page 18
adjusting the Custom Picture Your set has several settings which allow you to control t V Picture mode : Standard picture quality. Backlight Contrast 9 1. To select the desired picture effect, follo...
Page 19
♦ Black adjust: off/low/medium/high You can directly select the black level on the screen to adjust the screen depth. ♦ Dynamic Contrast: off/low/medium/high You can adjust the screen contrast so that...
Page 20
Changing the Picture options 1. Press the menu button to display the menu. t V Picture mode : Standard Press the enter button, to select "Picture". Backlight Contrast 9 . Press the ▲ or ▼ ...
Page 21
♦ Digital nr: off/low/medium/high/auto If the broadcast signal received by your TV is weak, you can activate the Digital Noise Reduction feature to help reduce any static and ghosting that may appear ...
Page 22
Viewing the Picture In Picture (PIP) You can display a sub picture within the main picture of set t V Setup programme or video input. In this way, you can watch the Plug & Play language : englis...
Page 23
Sound Features 1. Press the menu button to display the menu. t V Sound Press the ▲ or ▼ button to select "Sound", then press the mode : Custom equalizer enter button. Sr S t S Xt : off ...
Page 24
♦ Auto Volume: Off/On Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust ...
Page 25
Setting and Displaying the Current time You can set the t V’s clock so that the current time is t V Setup displayed when you press the In Fo button. You must also set Plug & Play language : engl...
Page 26
Switching the television on and off automatically 1. Press the menu button to display the menu. t V Setup Press the ▲ or ▼ button to select "Setup", then press the Plug & Play language...
Page 27
melody / entertainment / energy Saving 1. Press the menu button to display the menu. t V Setup Press the ▲ or ▼ button to select "Setup", then press the Plug & Play language : english ...
Page 28
♦ energy Saving: off/low/medium/high/auto This feature adjusts the screen brightness depending on the surrounding lighting conditions. − off: Turns off the energy saving function. − low: Sets the TV t...
Page 29
editing the Input Source names t V Input name the device connected to the input jacks to make your Source list : t V input source selection easier. edit name 1. Press the menu button to display th...
Page 30
Setting up Your PC Software (Based on Windows XP) the Windows display-settings for a typical computer are shown below. the actual screens on your PC may be different depending upon your particular ver...
Page 31
Setting up the t V with your PC t V Picture Preset: Press the Sour Ce button to select PC mode. mode : Standard Backlight 1. Press the menu button to display the menu. Contrast 9 Brightness Press th...
Page 32
teletext Feature most television stations provide written information services via teletext. the index page of the teletext service gives you information on how to use the service. In addition, you ca...
Page 33
the teletext pages are organized according to six categories: Part Contents Selected page number. Broadcasting station identity. Current page number or search status. Date and time. Text. Status infor...
Page 34
troubleshooting: Before Contacting Service Personnel No sound or picture. Check that the mains lead has been connected to a wall socket. Check that you have pressed the button on your set. Check...
Page 35
Technical and Environmental Specifications model name laa0 la0a0 Screen Size (Diagonal) 32 inches 40 inches PC resolution 1360 x 768 @ 60 Hz 1360 x 768 @ 60 Hz Sound Output 10W x 2 10W x 2 Dime...
