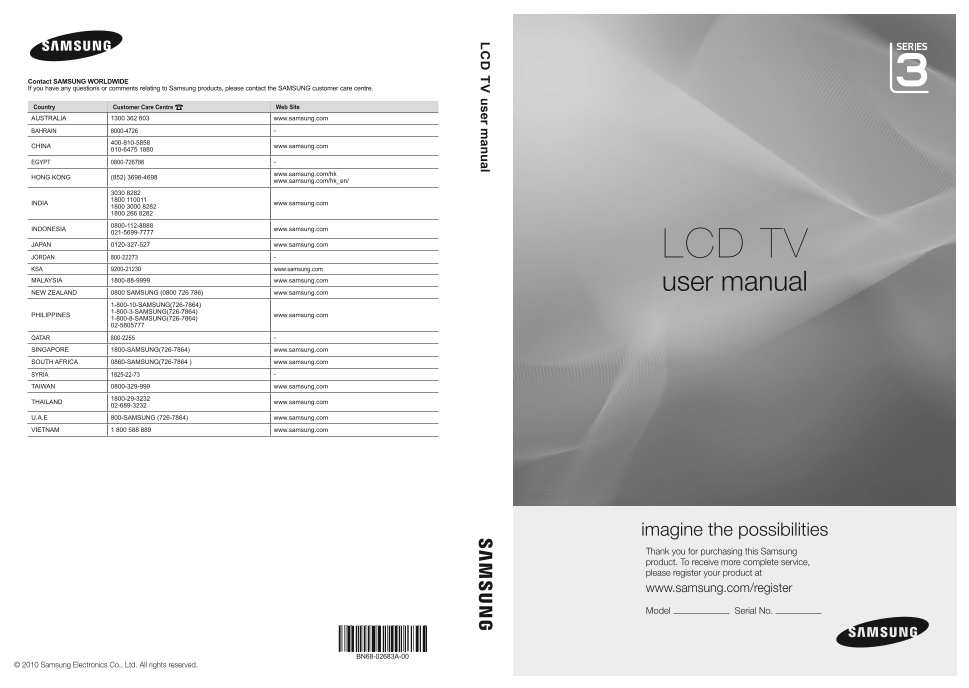

Page 1
Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Country Customer Care Centre Web Site AUSTRALIA 1300 362 ...
Page 2
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice. Still imag...
Page 3
Contents Getting Started 4 Accessories 4 Viewing the Control Panel 5 Viewing the Remote Control 6 Connecting to an Antenna 6 Plug & Play (Initial Setup) Connections 7 Connecting to an AV Device (L...
Page 4
Getting Started Accessories Please make sure the following items are included with your LCD TV. If any items are missing, contact your dealer. ✎ The items’ colours and shapes may vary depending on the...
Page 5
etting S tarted Viewing the Remote Control Turns the TV on and off. Displays and selects the available video sources. (P. 9) Have direct access to channels. Returns to the previous channel. Cut off th...
Page 6
Getting Started Connecting to an Antenna When the TV is initially powered on, basic settings proceed automatically. Preset: Connecting the mains and antenna. ✎ [TV Rear Panel] VHF/UHF Antenna Cable or...
Page 7
onnections Connections Connecting to an AV Device (LA26C350/LA32C350) Using an HDMI / DVI Cable: HD connection (up to 1080p) Available devices: DVD / Blu-ray player / HD Cable Box / HD Satellite recei...
Page 8
Connections Connecting to an AV Device (LA19C350/LA22C350) Using an HDMI / DVI Cable: HD connection (up to 1080p) Available devices: DVD / Blu-ray player / HD Cable Box / HD Satellite receiver (STB) /...
Page 9
onnections Connecting to an Audio Device (LA26C350/LA32C350) Using Audio Cable (Analogue) Connection Available devices: amplifier, DVD home theatre. DVD Home theatre AUDIO IN GRRWY R-AUDIO-L PR PB Red...
Page 10
POWER HDMIP POWER P.SIZE HDMIP MEDIA.P Basic Features Connections SLEEP Changing the Input Source Edit Name VCR / DVD / Cable STB / Satellite STB / PVR STB / ■ Source List AV Receiver / Game / Camcord...
Page 11
asic Features POWER Retuning channels ¦ Picture Menu HDMIP Changing the Preset Picture Mode ¦ Area You can change the desired area. Mode t Auto Store Select your preferred picture type. Dynamic ■ : Su...
Page 12
Basic Features Changing the Picture Options ¦ Picture Options In PC mode, you can only make changes to the ✎ Colour Tone and Size. Advanced Settings (available in Standard / Movie mode) Picture Option...
Page 13
asic Features Settings can be adjusted and stored for each x 1. Click on “Control Panel” on the Windows start menu. external device connected to an input of the TV. 2. Click on “Appearance and Themes”...
Page 14
Basic Features Auto Volume (Off / On) Setup Menu Because each broadcasting station has its own signal conditions, it is not easy to adjust the volume every time the Setting the Time ¦ channel is chang...
Page 15
asic Features Locking Programs ¦ Melody (Off / Low / Medium / High) Set so that a melody plays when the TV is turned on or off. The PIN input screen appears before the setup screen. ✎ Enter your 4-dig...
Page 16
Advanced Features Connecting to a PC (LA26C350/LA32C350) Using an HDMI/DVI Cable / a D-sub Cable AUDIO OUT DVI OUT PC OUT AUDIO OUT R-AUDIO-L PR PB R-AUDIO-L PR PB R-AUDIO-L R-AUDIO-L PR PR PB PB Conn...
Page 17
dvanced Features Display Modes (D-Sub and HDMI/DVI Input) Optimal resolution is 1360X768@60Hz. Horizontal Frequency Vertical Frequency Pixel Clock Frequency Sync Polarity Mode Resolution (KHz) (Hz) (M...
Page 18
Advanced Features Media Play Enjoy photos and/or music files saved on a USB MEDIA.P Mass Storage Class (MSC) device. Device Name USB SUM 315.0MB/495.0MB Free MENU O m → Application → Media Play (USB) ...
Page 19
dvanced Features Only MP3 and JPEG file formats are supported. x The Media Play (USB) mp3 format only supports music files with a high sampling frequency (32 k Hz, 44.1 k Hz, or 48 x k Hz). We recomme...
Page 20
Photo Music SUM SUM 307.2MB/973.7MB 307.2MB/973.7MB Photo Music Setup Photo Music Setup Advanced Features DSC_0558.JPG Music Photo 580 440 78.0KB Using the MP3 List File.....jpg File.....jpg File........
Page 21
Photo Music SUM SUM 307.2MB/973.7MB 307.2MB/973.7MB Photo Music Setup Photo Music Setup DSC_0558.JPG Photo 580 440 78.0KB File.....jpg File.....jpg File.....jpg File.....jpg File.....jpg File.....jpg ...
Page 22
Other Information Analogue Channel Teletext Feature The index page of the Teletext service gives you information on how to use the service. For Teletext information to be displayed correctly, channel ...
Page 23
ther Inform ation Installing the Wall Mount Installing the Wall Mount Kit Wall mount items (sold separately) allow you to mount the TV on the wall. For detailed information on installing the wall moun...
Page 24
Other Information Anti-Theft Kensington Lock The Kensington Lock is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the il...
Page 25
ther Inform ation Troubleshooting If you have any questions about the TV, first refer to this list. If none of these troubleshooting tips apply, please visit “www. samsung.com,” then click on Support,...
Page 26
Other Information Issues Solutions and Explanations No Picture, No Video The TV won’t turn on. Make sure the AC power cord is securely plugged in to the wall outlet and the TV.• Make sure the wall out...
Page 27
ther Inform ation Issues Solutions and Explanations Your settings are lost after 30 minutes or If the TV is in the • Store Demo mode, it will reset audio and picture settings every 30 minutes. Change ...
Page 28
Other Information Specifications Panel native 1360 X 768 @ 60 Hz Environmental Considerations Operating Temperature 10°C to 40°C (50°F to 104°F) Operating Humidity 10% to 80%, non-condensing Storage T...
Page 29
ther Inform ation Index Audio out jack 9 HDMI 7, 8 Remote Control 5 Auto Adjustment 13 Retuning channels 11 Auto Store 11 Input Cables 9 Sleep Timer 14 Balance 13 Slide Show 19 Source List 10 License ...
Page 30
This page is intention- ally left blank. BN68-02683A_NEW.indb 30 2010-03-03 �� 6:00:01
