Samsung SC09AWHX User Guide
Summary
Designed for optimal performance, this comprehensive manual provides every owner with clear instructions for their Split-type Room Air Conditioner. Inside, you will find detailed guides on essential safety precautions, efficient operation (including cooling, dehumidifying, and airing), advanced programming settings like timers, and routine maintenance. This resource is for users seeking to maximize energy efficiency while ensuring safe and effective control of indoor climate conditions.
Page 1 Text Content

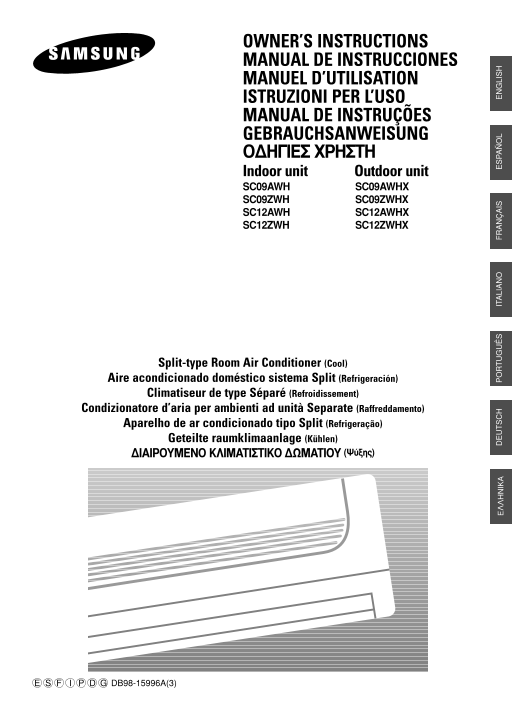

OWNER’S INSTRUCTIONS MANUAL DE INSTRUCCIONES MANUEL D’UTILISATION ISTRUZIONI PER L’USO MANUAL DE INSTRUÇÕES GEBRAUCHSANWEISUNG √¢∏°π∂™ Ã∏™∆∏ Indoor unit Outdoor unit SC09AWH SC09AWHX SC09ZWH SC09ZWHX SC12AWH SC12AWHX SC12ZWH SC12ZWHX
Split-type Room Air Conditioner (Cool) Aire acondicionado doméstico sistema Split (Refrigeración) Climatiseur de type Séparé (Refroidissement)
Condizionatore d’aria per ambienti ad unità Separate (Raffreddamento) Aparelho de ar condicionado tipo Split (Refrigeração)
Geteilte raumklimaanlage (Kühlen)
¢IAIPOYMENO K§IMATI™TIKO ¢øMATIOY (æ‡Í˘)
IK IT LI IS LI
DB98-15996A(3)
Page Summary Contents For Samsung SC09AWHX User Guide
Page 1
OWNER’S INSTRUCTIONS MANUAL DE INSTRUCCIONES MANUEL D’UTILISATION ISTRUZIONI PER L’USO MANUAL DE INSTRUÇÕES GEBRAUCHSANWEISUNG √¢∏°π∂™ Ã∏™∆∏ Indoor unit Outdoor unit SC09AWH SC09AWHX SC09ZWH SC09ZWHX...
Page 2
Safety Precautions The following safety precautions must be taken when using your air conditioner. Risk of electric shock. • Can cause injury or death. • Disconnect all WARNING remote electric power s...
Page 3
Contents PREPARING YOUR AIR CONDITIONER ■ Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ■ View of the Unit . . . . . . . . . . . . . . . . . . . . . . . . ...
Page 4
View of the Unit The design and shape are subject to change according to the model. Indoor Unit Temperature sensor On/Off switch Air filter Air flow blades Air Inlet (under the grille) (outlet) Operat...
Page 5
Outdoor Unit SH30ZC1(C2)X Air Inlet (Rear) Air Outlet Connection Valve
Page 6
Remote Control - Buttons and Display Remote control transmission indicator Temperature and Timer setting 1 Hour Timer indicator Battery life indicator On Timer setting Off Timer setting Operating mode...
Page 7
Getting Started You have just purchased a split type air conditioner and it has been installed by your installation specialist. Your Owner’s Instructions contains valuable information on using your ai...
Page 8
Inserting the Remote Control Batteries You must insert or replace the remote control batteries when : You purchase the air conditioner The remote control does not work correctly Note Use two AAA, LR03...
Page 9
Selecting the Automatic Operating Mode You can start the air conditioner in Auto mode from your remote control. In the Auto mode, the optimum temperature is selected automatically. You can also raise ...
Page 10
Cooling Your Room You must select the Cool mode if you wish to adjust the: Cooling temperature Fan speed when cooling If necessary, press the button. Result: The operation indicator on the indoor unit...
Page 11
Removing Excess Humidity If the atmosphere in your room is very humid or damp, you can remove excess humidity without lowering the room temperature too much. If necessary, press the button. Result: Th...
Page 12
Airing Your Room If the atmosphere in your room is stale, you can air the room using the Fan feature. If necessary, press the button. Result: The operation indicator on the indoor unit lights up. The ...
Page 13
Changing the Room Temperature Quickly The Turbo cooling function is used to cool your room as quickly as possible. Example : You have just come home and find that the room is very hot. You wish to coo...
Page 14
Selecting Energy Saving Mode You can save energy in the Cool mode. If you select the Energy Saving mode, the temperature will rise. If necessary, press the button. Result: The operation indicator on t...
Page 15
Adjusting the Air Flow Direction Vertically Depending on the position of the indoor unit on the wall of your room, you can adjust the position of the outer air flow blade on the bottom of the unit, th...
Page 16
Setting the On Timer The On Timer enables you to switch on the air conditioner automatically after a given period of time. You can set the period of time from 1 hour to 24 hours. To set the operating ...
Page 17
Setting the Off Timer The Off Timer enables you to switch off the air conditioner automatically after a given period of time. You can set the period of time from 1 hour to 24 hours. To set the operati...
Page 18
Setting the Sleep Timer The Sleep Timer can be used when you are cooling your room to switch the air conditioner off automatically after a period of six hours. Note If you wish to switch the unit off ...
Page 19
Setting the 1 Hour Timer The 1 Hour Timer enables each mode to operate only for an hour and stop automatically with just one touch of the 1 Hour Timer button. It is good for you when you feel setting ...
Page 20
Operating Recommendations Here are a few recommendations that you should follow when using your air conditioner. Topic Recommendation Power failure If a power failure occurs when the air condition- er...
Page 21
Operating Your Air Conditioner Without the Remote Control Your air conditioner can be operated directly from the indoor unit if the remote control is lost or broken. To switch the air conditioner on, ...
Page 22
Solving Common Problems Before contacting the after-sales service, perform the following simple checks. They may save you the time and expense of an unnecessary call. Problem Explanation/Solution The ...
Page 23
Cleaning Your Air Conditioner To get the best possible use out of your air conditioner, you must clean it regularly to remove the dust that accumulates on the air filter. IMPORTANT Before cleaning you...
Page 24
THIS AIR CONDITIONER IS MANUFACTURED BY: ESTE AIRE ACONDICIONADO HA SIDO FABRICADO POR: CE CLIMATISEUR EST FABRIQUE PAR: QUESTO CONDIZIONATORE D’ARIA È PRODOTTO DA: ESTE APARELHO DE AR CONDICIONADO É ...
