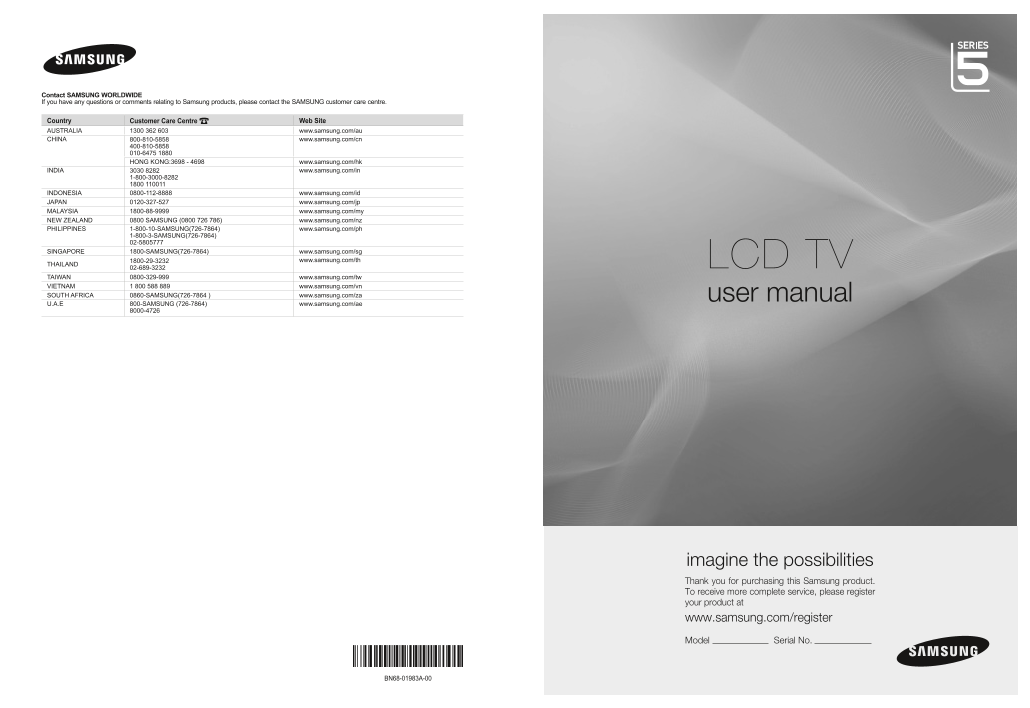

Page 1
Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Country Customer Care Centre Web Site AUSTRALIA 1300 362 ...
Page 2
License Tru Surround HD, SRS and symbol are trademarks of SRS Labs, Inc. Tru Surround HD technology is incorporated under license from SRS Labs, Inc. Precautions When Displaying a Still Image A still ...
Page 3
CONTENTS SETTING UP YOUR TV ANYNET+ Viewing the Control Panel ................................................................. Connecting Anynet+ Devices ................................................
Page 4
SETTING UP YOUR TV Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without...
Page 5
Accessories Remote Control & Batteries (AAA x 2) Power Cord Stand Screw (M4 X L16) Stand Screw (M4 X L14) Cover-Bottom Cleaning Cloth (Depending on the model) Owner’s Instructions ● Warranty card●...
Page 6
Viewing the Connection Panel [TV Rear Panel] [TV Side Panel] Power Input The product colour and shape may vary depending on the model. 1 HDMI IN (DVI), , Connects to the HDMI jack of a device with a...
Page 7
5 H (HEADPHONE) Headphone may be connected to the headphone output on your set. While the head phone is connected, the sound from the built-in speakers will be disabled. Using the sound function is re...
Page 8
Viewing the Remote Control You can use the remote control up to a distance of about 23 feet from the TV. The performance of the remote control may be affected by bright light. The product colour and s...
Page 9
Installing Batteries in the Remote Control . Lift the cover at the back of the remote control upward as shown in the figure. . Install two AAA size batteries. Make sure to match the ‘+’ and ‘–’ ends o...
Page 10
Placing Your Television in Standby Mode Your set can be placed in standby mode in order to reduce the power consumption. The standby mode can be useful when you wish to interrupt viewing temporarily (...
Page 11
CHANNEL Channel Menu Area TV Channel Area : Asia/Europe You can change the area for channels. Auto Store Manual Store Channel List Sort Auto Store Name Fine Tune You can scan for the fre...
Page 12
Sort This operation allows you to change the programme numbers of the stored channels. This operation may be necessary after using the auto store. The channel is moved to its new position and all othe...
Page 13
PICTURE Configuring the Picture Menu Mode You can select the type of picture which best corresponds to your viewing requirements. TV Picture Press the TOOLS button to display the Tools menu. You can a...
Page 14
Advanced Settings TV Advanced Settings Black Tone : Off Samsung’s new TVs allow you to make even more precise picture settings than previous Dynamic Contrast : Medium Gamma : 0 models. Colour Sp...
Page 15
Picture Options TV Picture Options Colour Tone : Cool In PC mode, you can only make changes to the Colour Tone and Size from among the Size : : Digital NR : Auto items in Picture Options. HDM...
Page 16
Viewing Picture-in-Picture You can use the PIP feature to simultaneously watch the TV tuner and one external video TV Setup Plug & Play source. This product has one built-in tuner, which does no...
Page 17
Using Your TV as a Computer (PC) Display Setting Up Your PC Software (Based on Windows XP) The Windows display-settings for a typical computer are shown below. The actual screens on your PC will proba...
Page 18
Setting up the TV with your PC Preset: Press the SOURCE button to select PC mode. Auto Adjustment TV Picture Mode : Dynamic Use the Auto Adjust function to have the TV automatically adjust the video s...
Page 19
Auto Volume → Off / On Each broadcasting station has its own signal conditions, and so it is not easy to adjust the volume every time the channel is changed. This feature lets you automatically adjust...
Page 20
SETUP Configuring the Setup Menu Language TV Setup Plug & Play You can set the menu language. Language : English Time Child Lock : On Change PIN Time Game Mode : Off Melody : Off Energ...
Page 21
Change PIN You can change your personal ID number that is required to set up the TV. Before the setup screen appears, the PIN number input screen appears. Enter your 4 digit PIN number. The default PI...
Page 22
INPUT Input Menu Source List TV Input Source List : TV Use to select TV or other external input sources such as DVD / Blu-ray players / Cable Box / Edit Name Anynet+(HDMI-CEC) Satellite receiver...
Page 23
ANYNET+ Connecting Anynet+ Devices What is Anynet+? Anynet+ is a function that enables you to control all connected Samsung devices that support Anynet+ with your Samsung TV’s remote. The Anynet+ syst...
Page 24
Setting Up Anynet+ Press the TOOLS button to display the Tools menu. You can also display Anynet+ menu TV Input by selecting Tools → Anynet+ (HDMI-CEC). Source List : TV Edit Name Anynet+(HDMI-CEC...
Page 25
TV Remote Control Buttons Available in Anynet+ Mode Device Type Operating Status Available Buttons After switching to the device, when the Numeric buttons menu of the corresponding device is ▲/▼/◄/►/w...
Page 26
Troubleshooting for Anynet+ Problem Possible Solution Anynet+ does not work. Check if the device is an Anynet+ device. The Anynet+ system supports Anynet+ devices only. Connect only one receiver (home...
Page 27
RECOMMENDATIONS Teletext Feature Most television stations provide written information services via Teletext. The index page of the Teletext service gives you information on how to use the service. In ...
Page 28
The Teletext pages are organized according to six categories: Part Contents Selected page number. Broadcasting channel identity. Current page number or search indications. Date and time. Text. Status ...
Page 29
Disconnecting the Stand . Remove four screws from the back of the TV. . Separate the stand from the TV. Two or more people should carry the TV. . Cover the bottom hole with the cover. Installing the W...
Page 30
Anti-Theft Kensington Lock The Kensington Lock is a device used to physically fix the system when using it in a public place. The appearance and locking method may differ from the illustration dependi...
Page 31
Troubleshooting: Before Contacting Service Personnel Before contacting service personnel Problem Possible Solution No sound or picture Check that the mains lead has been connected to a wall socket. Ch...
Page 32
Specifications Model Name LAB0 LAB0 Screen Size (Diagonal) 32 inch 37 inch PC Resolution (Optimum) 1920 x 1080 @ 60 Hz 1920 x 1080 @ 60 Hz Sound (Output) 10W X 2 10W X 2 Dimensions (Wx Dx H) W...
