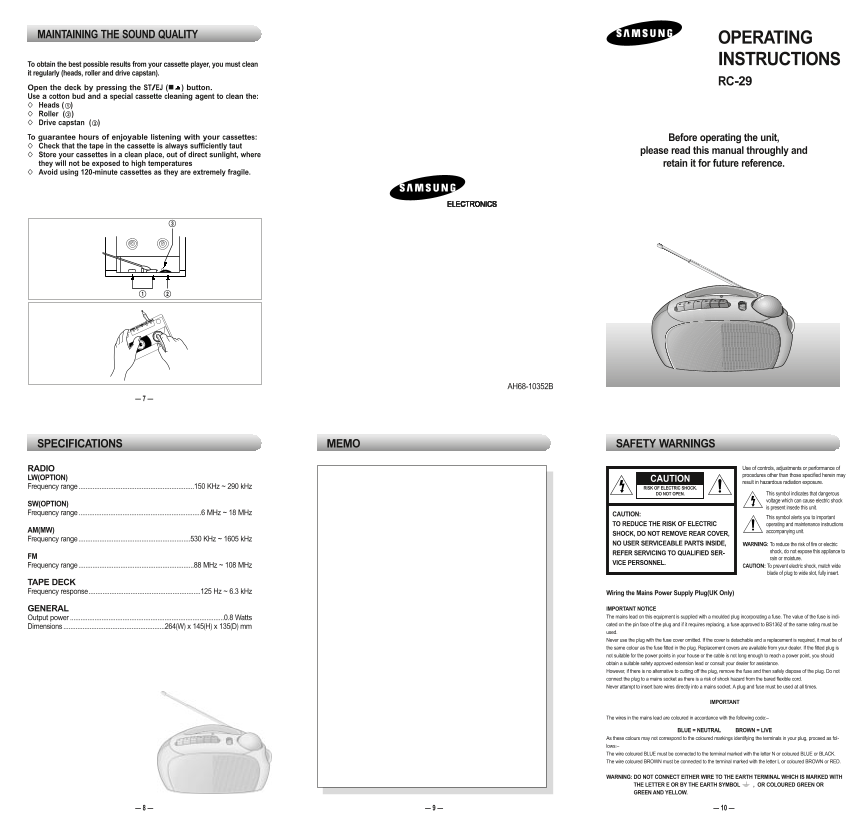

Samsung RC-29 User Guide

MAINTAINING THE SOUND QUALITY

OPERATING To obtain the best possible results from your cassette player, you must clean INSTRUCTIONS

it regularly (heads, roller and drive capstan).

RC-29

Open the deck by pressing the ST/EJ ( ) button. Use a cotton bud and a special cassette cleaning agent to clean the: Heads ( ) Roller ( ) Drive capstan ( )

To guarantee hours of enjoyable listening with your cassettes: Before operating the unit, Check that the tape in the cassette is always sufficiently taut

please read this manual throughly and

Store your cassettes in a clean place, out of direct sunlight, where they will not be exposed to high temperatures retain it for future reference. Avoid using 120-minute cassettes as they are extremely fragile.

ELECTRONICS

AH68-10352B

SPECIFICATIONS MEMO SAFETY WARNINGS

RADIO Use of controls, adjustments or performance of procedures other than those specified herein may

LW(OPTION) CAUTION

result in hazardous radiation exposure.

Frequency range ..................................................................150 KHz ~ 290 k Hz RISK OF ELECTRIC SHOCK.

DO NOT OPEN. This symbol indicates that dangerous

voltage which can cause electric shock

SW(OPTION)

is present insede this unit.

Frequency range ......................................................................6 MHz ~ 18 MHz CAUTION:

This symbol alerts you to important

TO REDUCE THE RISK OF ELECTRIC operating and maintenance instructions

AM(MW) accompanying unit.

SHOCK, DO NOT REMOVE REAR COVER,

Frequency range................................................................530 KHz ~ 1605 k Hz

NO USER SERVICEABLE PARTS INSIDE, WARNING: To reduce the risk of fire or electric

shock, do not expose this appliance to

REFER SERVICING TO QUALIFIED SER-

FM rain or moisture.

VICE PERSONNEL.

Frequency range..................................................................88 MHz ~ 108 MHz CAUTION: To prevent electric shock, match wide

blade of plug to wide slot, fully insert.

TAPE DECK Frequency response................................................................125 Hz ~ 6.3 k Hz Wiring the Mains Power Supply Plug(UK Only)

GENERAL IMPORTANT NOTICE Output power ........................................................................................0.8 Watts The mains lead on this equipment is supplied with a moulded plug incorporating a fuse. The value of the fuse is indi- cated on the pin face of the plug and if it requires replacing, a fuse approved to BS1362 of the same rating must be

Dimensions ..........................................................264(W) x 145(H) x 135(D) mm

used. Never use the plug with the fuse cover omitted. If the cover is detachable and a replacement is required, it must be of the same colour as the fuse fitted in the plug. Replacement covers are available from your dealer. If the fitted plug is not suitable for the power points in your house or the cable is not long enough to reach a power point, you should obtain a suitable safety approved extension lead or consult your dealer for assistance. However, if there is no alternative to cutting off the plug, remove the fuse and then safely dispose of the plug. Do not connect the plug to a mains socket as there is a risk of shock hazard from the bared flexible cord. Never attampt to insert bare wires directly into a mains socket. A plug and fuse must be used at all times.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:–

BLUE = NEUTRAL BROWN = LIVE

As these colours may not correspond to the coloured markings identifying the terminals in your plug, proceed as fol- lows:– The wire coloured BLUE must be connected to the terminal marked with the letter N or coloured BLUE or BLACK. The wire coloured BROWN must be connected to the terminal marked with the letter L or coloured BROWN or RED.

WARNING: DO NOT CONNECT EITHER WIRE TO THE EARTH TERMINAL WHICH IS MARKED WITH

THE LETTER E OR BY THE EARTH SYMBOL , OR COLOURED GREEN OR GREEN AND YELLOW.
