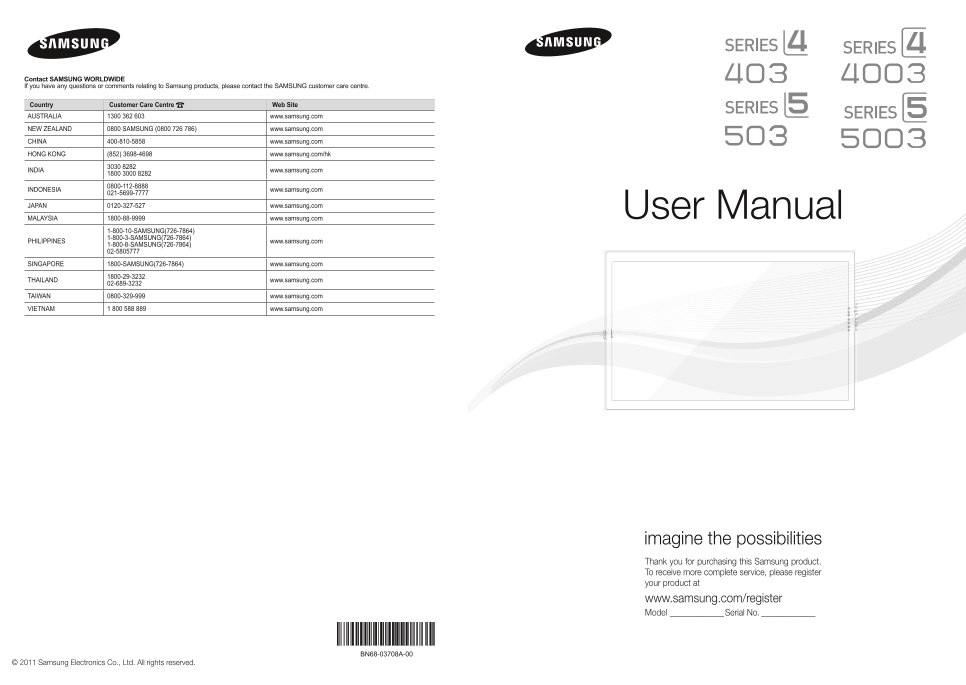

Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre. Country Customer Care Centre Web Site AUSTRALIA 1300 362 ...
Page 2
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice. Still imag...
Page 3
Contents Getting Started 4 Accessories 4 Viewing the Control Panel 5 Viewing the Remote Control 6 Connecting to an Antenna 6 Plug & Play (Initial Setup) Connections 7 Connecting to an AV Device 8 ...
Page 4
Getting Started Accessories Please make sure the following items are included with your TV. If any items are missing, contact your dealer. The items’ colours and shapes may vary depending on the model...
Page 5
etting S tarted Viewing the Remote Control Turns the TV on and off. Displays and selects the available video sources. (P. 10) Have direct access to channels. Alternately select Teletext ON / Double / ...
Page 6
Getting Started Connecting to an Antenna When the TV is initially powered on, basic settings proceed automatically. Preset: Connecting the mains and antenna. The position of power input port may diffe...
Page 7
onnections Connections Connecting to an AV Device Using an HDMI / DVI Cable: HD connection (up to 1080p) Available devices: DVD / Blu-ray player / HD Cable Box / HD Satellite receiver (STB) / Cable Bo...
Page 8
Connections Connecting to a PC Using an HDMI/DVI Cable DVI OUT HDMI OUT R-AUDIO-L PR PB TV Rear Display Modes (HDMI/DVI Input) LA32D403 / UA32D4003 / UA26D4003 : Optimal resolution is 1360X768@60Hz. H...
Page 9
asic Features Connecting to a PC Display Modes (HDMI/DVI Input) LA40D503 / UA40D5003 / UA22D5003 : Optimal resolution is 1920X1080@60Hz. Horizontal Frequency Mode Resolution Vertical Frequency (Hz) Pi...
Page 10
POWER HDMIP POWER Connections P.SIZE MEDIA.P SLEEP Changing the Input Source PC(D-Sub) input is not supported. If you want to connect HDMIP PC to the TV, use HDMI/DVI input. Source List VCR / DVD / Ca...
Page 11
asic Features Locking / Unlocking channels Other Features This feature allows you to prevent unauthorized users, such as children, from watching. unsuitable programmes by muting out video and audio. S...
Page 12
Basic Features Changing the Picture Options Picture Options In PC mode, you can only make changes to the Colour Tone and Size. Advanced Settings (available in Standard / Movie mode) Picture Options T ...
Page 13
asic Features Digital Noise Filter (Off / Low / Medium / High / Sound Menu Auto): When the broadcast signal is weak, some static and ghosting may appear. Select one of the options until the best pictu...
Page 14
Basic Features Auto Volume (Off / On) Setup Menu Because each broadcasting station has its own signal conditions, it is not easy to adjust the volume every time the Setting the Time channel is changed...
Page 15
asic Features Locking Programs Melody (Off / Low / Medium / High) Set so that a melody plays when the TV is turned on or off. The PIN input screen appears before the setup screen. Enter your 4-digit P...
Page 16
POWER HDMIP Advanced Features Media Play Enjoy photos and/or music fi les saved on a P.SIZE MEDIA.P USB Mass Storage Class (MSC) device. SLEEP Device Name USB SUM 315.0MB/495.0MB Free MENUm → Input → ...
Page 17
dvanced Features Only MP3 and JPEG file formats are supported. The Media Play (USB) mp3 format only supports music files with a high sampling frequency (32 k Hz, 44.1 k Hz, or 48 k Hz). We recommend t...
Page 18
Photo Music SUM SUM 307.2MB/973.7MB 307.2MB/973.7MB Photo Music Setup Photo Music Setup Advanced Features DSC_0558.JPG Music Photo 580 440 78.0KB Using the MP3 List File.....jpg File.....jpg File........
Page 19
Photo Music SUM SUM 307.2MB/973.7MB 307.2MB/973.7MB Photo Music Setup Photo Music Setup DSC_0558.JPG Photo 580 440 78.0KB File.....jpg File.....jpg File.....jpg File.....jpg File.....jpg File.....jpg ...
Page 20
Other Information Analogue Channel Teletext Feature The index page of the Teletext service gives you information on how to use the service. For Teletext information to be displayed correctly, channel ...
Page 21
ther Inform ation Installing the Wall Mount Installing the Wall Mount Kit Wall mount items (sold separately) allow you to mount the TV on the wall. For detailed information on installing the wall moun...
Page 22
Other Information If the length of the USB device is equal to or longer than 45 mm when used with 26” or 32” models installed with a wall mount, the USB device may touch the wall. Therefore, using a s...
Page 23
ther Inform ation Securing the TV to the Wall Caution: Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure that your children do not hang over or destabilize the ...
Page 24
Other Information Troubleshooting If you have any questions about the TV, first refer to this list. If none of these troubleshooting tips apply, please visit “www. samsung.com,” then click on Support,...
Page 25
ther Inform ation Issues Solutions and Explanations No Picture, No Video The TV will not turn on. Make sure the AC power cord is securely plugged in to the wall outlet and the TV. Make sure the wall o...
Page 26
Other Information Storage and Maintenance If you remove the attached sticker on the TV screen, clean the residues and then watch TV. Do not spray water or a cleaning agent directly onto the Clean the ...
Page 27
ther Inform ation Specifications Environmental Considerations Operating Temperature 10°C to 40°C (50°F to 104°F) Operating Humidity 10% to 80%, non-condensing Storage Temperature -20°C to 45°C (-4°F t...
Page 28
Other Information Index Auto Store 11 HDMI 7 Remote Control 5 Retuning channels 11 Balance 13 Input Cables 6 Sleep Timer 14 Slide Show 17 Source List 10 Child Lock 15 Licence 26 Standby mode 4 Compone...
