Samsung K6T0808C1D Family Data Sheet

Summary

This datasheet details the K6T0808C1D family of low-power, 32Kx8 CMOS Static RAM. Designed for system engineers requiring reliable memory solutions operating from 4.5V to 5.5V, this comprehensive manual outlines all critical specifications. It covers various speeds (e.g., 55ns, 70ns), temperature ranges (Commercial and Industrial), and multiple packages. Find detailed information on electrical characteristics, pin mappings, functional operation modes, and optimal conditions for system design integration.

📄 Preview ‹ PAGE OF 9 ›

‹

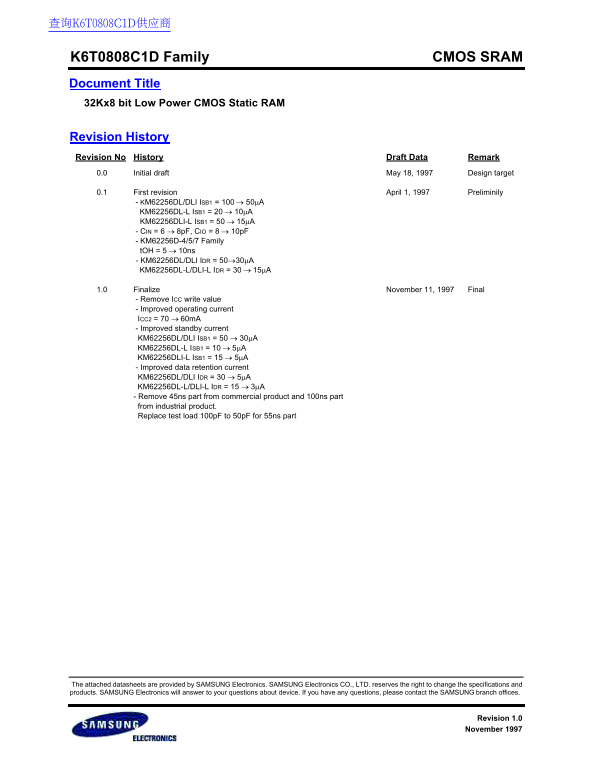

Samsung K6T0808C1D Family Data Sheet - Page 1

›

Page 1 Text Content

K6T0808C1D Family CMOS SRAM Document Title 32Kx8 bit Low Power CMOS Static RAM

Revision History Revision No History Draft Data Remark 0.0 Initial draft May 18, 1997 Design target

0.1 First revision April 1, 1997 Preliminily

- KM62256DL/DLI ISB1 = 100 → 50µA KM62256DL-L ISB1 = 20 → 10µA KM62256DLI-L ISB1 = 50 → 15µA - CIN = 6 → 8p F, CIO = 8 → 10p F - KM62256D-4/5/7 Family t OH = 5 → 10ns - KM62256DL/DLI IDR = 50→30µA KM62256DL-L/DLI-L IDR = 30 → 15µA

1.0 Finalize November 11, 1997 Final

- Remove ICC write value - Improved operating current ICC2 = 70 → 60m A - Improved standby current KM62256DL/DLI ISB1 = 50 → 30µA KM62256DL-L ISB1 = 10 → 5µA KM62256DLI-L ISB1 = 15 → 5µA - Improved data retention current KM62256DL/DLI IDR = 30 → 5µA KM62256DL-L/DLI-L IDR = 15 → 3µA - Remove 45ns part from commercial product and 100ns part from industrial product. Replace test load 100p F to 50p F for 55ns part

The attached datasheets are provided by SAMSUNG Electronics. SAMSUNG Electronics CO., LTD. reserves the right to change the specifications and products. SAMSUNG Electronics will answer to your questions about device. If you have any questions, please contact the SAMSUNG branch offices.

Revision 1.0 November 1997

Page Summary Contents For Samsung K6T0808C1D Family Data Sheet

Page 1 K6T0808C1D Family CMOS SRAM Document Title 32Kx8 bit Low Power CMOS Static RAM Revision History Revision No History Draft Data Remark 0.0 Initial draft May 18, 1997 Design target 0.1 First revision Ap...

Page 2 K6T0808C1D Family CMOS SRAM 32Kx8 bit Low Power CMOS Static RAM FEATURES GENERAL DESCRIPTION • Process Technology : TFT The K6T0808C1D families are fabricated by SAMSUNG′s • Organization : 32Kx8 advan...

Page 3 K6T0808C1D Family CMOS SRAM PRODUCT LIST Commercial Temperature Products(0~70°C) Industrial Temperature Products(-40~85°C) Part Name Function Part Name Function K6T0808C1D-DL55 28-DIP, 55ns, L-pwr K6T...

Page 4 K6T0808C1D Family CMOS SRAM RECOMMENDED DC OPERATING CONDITIONS1) Item Symbol Min Typ Max Unit Supply voltage Vcc 4.5 5.0 5.5 Ground Vss Input high voltage VIH 2.2 Vcc+0.5V2) Input low voltage VIL -0....

Page 5 K6T0808C1D Family CMOS SRAM AC OPERATING CONDITIONS TEST CONDITIONS (Test Load and Test Input/Output Reference) Input pulse level : 0.8 to 2.4V Input rising and falling time : 5ns CL1) Input and outpu...

Page 6 K6T0808C1D Family CMOS SRAM TIMMING DIAGRAMS TIMING WAVEFORM OF READ CYCLE(1) (Address Controlled, CS=OE=VIL, WE=VIH) Address Data Out Previous Data Valid Data Valid TIMING WAVEFORM OF READ CYCLE(2) (...

Page 7 K6T0808C1D Family CMOS SRAM TIMING WAVEFORM OF WRITE CYCLE(1) (WE Controlled) Address t CW(2) t WR(4) t WP(1) t AS(3) t DW t DH Data in Data Valid t WHZ Data out Data Undefined TIMING WAVEFORM OF WRIT...

Page 8 K6T0808C1D Family CMOS SRAM PACKAGE DIMENSIONS Units: millimeter(inch) 28 PIN DUAL INLINE PACKAGE(600mil) +0.10 0.25 -0.05 +0.0040.010 -0.002 MAX36.72 5.08 MAX 36.32± 0.20 0.200 1.52± 0.10 MIN0.015 28...

Page 9 K6T0808C1D Family CMOS SRAM Units: millimeter(inch) PACKAGE DIMENSIONS 28 PIN THIN SMALL OUTLINE PACKAGE TYPE1 (0813.4F) TYP0.25 +0.100.15 MIN0.05 MAX1.20 0.047 28 PIN THIN SMALL OUTLINE PACKAGE TYPE1...

Manual Details

Brand	Samsung
Pages	9
File Size	118.33 KB
Published	June 17, 2026

7 views

Enter the captcha to get the download link:

Frequently Asked Questions

What operating voltage range is supported by the K6T0808C1D family?

The SRAM supports a power supply voltage range of 4.5~5.5V, and also has low data retention voltage support down to 2V (Min).

Are there different models available for various temperature ranges?

Yes, the product list includes commercial versions (0~70 °C) and industrial versions (-40~85 °C).

Which package types are available for this SRAM?

Available package types include 28-DIP, 28-SOP, and 28-TSOP1-F/R.
