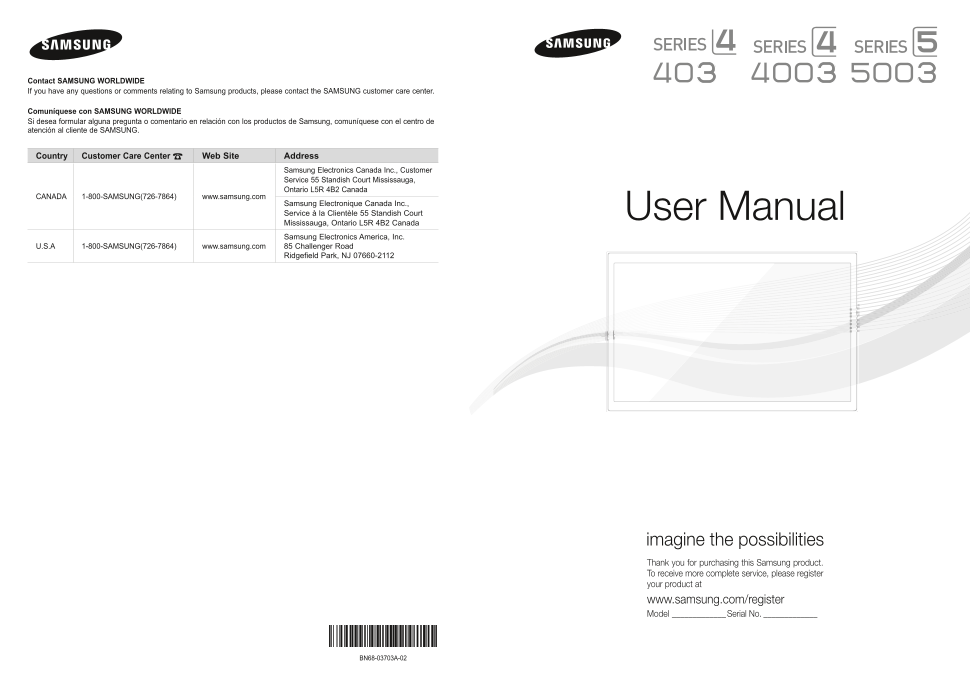

Page 1
Contact SAMSUNG WORLDWIDE If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center. Comuníquese con SAMSUNG WORLDWIDE Si desea formular algun...
Page 2
Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and specifications may be changed without notice. Important ...
Page 3
Contents getting Started Advanced Features List of Features ......................................................... Media Play .............................................................. Accessor...
Page 4
Getting Started list of Features Excellent Digital Interface & Networking : With a built-in HD digital tuner, nonsubscription HD broadcasts can be viewed without a cable box / STB (Set-Top-Box) sa...
Page 5
etting S tarted Viewing the Control Panel The product color and shape may vary depending on the model. Control Panel Speakers P (Power) Press to turn the TV on and off. Remote control sensor Aim the r...
Page 6
Getting Started Viewing the Remote Control Turns the TV on and off. Display and select the available video sources. (P. 10) Press to directly access to channels. Press to select additional channels Re...
Page 7
etting S tarted Connecting to an Antenna When the TV is initially powered on, basic settings proceed automatically. Connecting the power cord and antenna. The position of power input port may differ d...
Page 8
Connections Connecting to an AV Device Using an h DMI cable or h DMI to DVI Cable: h D connection (up to 1080p) We recommend using the HDMI connection for the best quality HD picture. Available device...
Page 9
onnections Display Modes (h DMI/DVI Input) 19", 26", 32" : Optimal resolution is 1360x768@60Hz. Mode Resolution horizontal Frequency (Khz) Vertical Frequency (hz) Pixel Clock Frequency ...
Page 10
Connections n OTE POWER For HDMI/DVI cable connection, you must use the h DMI In 1(DVI) jack. The interlace mode is not supported. The set might operate abnormally if a non-standard video format is se...
Page 11
asic Features Basic Features how to navigate Menus Channel Menu Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions. Seeing Channels...
Page 12
POWER Basic Features MEDIA.P P.SIZE Using Favorite Channels how to Stop Auto Programming 1. Press the En TERE button. MEn Um → Channel → Channel list → En TERE 2. A message will ask Stop Auto Program?...
Page 13
asic Features Channel list Programmed MEn Um → Channel → Channel list → En TERE (in Channel list) You can view, modify or delete a show you have reserved to watch. Channel list Option Menu t 1. Press ...
Page 14
Basic Features Picture Menu Changing the Picture Options Changing the Preset Picture Mode Advanced Settings MEn Um → Picture → Mode → En TERE MEn Um → Picture → Advanced Settings → En TERE Mode t (ava...
Page 15
asic Features HD (High Definition): 16:9 - 1080i/1080p (1920x1080), Picture Options MEn Um → Picture → Picture Options → Settings can be adjusted and stored for each En TERE external device you have c...
Page 16
POWER POWER MEDIA.P P.SIZE Basic Features Sound Menu Preferred language (digital channels only) Changing the Preset Sound Mode Digital-TV broadcasts are capable of simultaneous transmission of many ME...
Page 17
asic Features Setup Menu Setting the On/Off Timer MEn Um → Setup → Time → Timer 1 → Setting the Time En TERE MEn Um → Setup → Time → En TERE Timer 1 / Timer 2 / Timer 3: Three different on / off timer...
Page 18
Basic Features locking Programs Canadian English: You can block TV programs depending on their Anglophone Canadian. MEn Um → Setup → V-Chip → En TERE C: Programming intended for children under age 8. ...
Page 19
POWER asic Features Change PIn: The Change PIn screen will appear. Caption Choose any 4 digits for your PIN and enter it in the Enter new PIn. Re-enter the same 4 digits in the Confirm (On-Screen Text...
Page 20
Basic Features n OTE Sound Test: Use the built-in melody sound to check for sound problems. Digital Caption Options are available only when Default and Service1 ~ Service6 can be Yes: If you can hear ...
Page 21
POWER dvanced Features asic Features Advanced Features Media Play Enjoy photos and/or music fi les saved on a USB MEDIA.P Mass Storage Class (MSC) device. Device Name USB SUM 315.0MB/495.0MB Free MEn ...
Page 22
Advanced Features USB MSC supports MP3 and JPEG files, and the PTP device supports JPEG files only. MTP (Media Transfer Protocol) is not supported. The playing duration of an mp3 file may be displayed...
Page 23
Photo Music SUM SUM 307.2MB/973.7MB 307.2MB/973.7MB Photo Music Setup Photo Music Setup dvanced Features asic Features Music DSC_0558.JPG Photo Using the MP3 list 580 440 78.0KB File.....jpg File........
Page 24
Photo Music SUM SUM 307.2MB/973.7MB 307.2MB/973.7MB Photo Music Setup Photo Music Setup DSC_0558.JPG Photo 580 440 78.0KB File.....jpg File.....jpg File.....jpg File.....jpg File.....jpg File.....jpg ...
Page 25
ther Inform ation Other Information Installing the Wall Mount Assembling the guide Stand (l CD-TV - 32 inches or above) When installing the TV onto a wall, attach the Guide Stand as shown. Use only th...
Page 26
Other Information The wall mount kit is not supplied, but sold separately. Install your wall mount on a solid wall perpendicular to the floor. When attaching to other building materials, please contac...
Page 27
ther Inform ation Securing the TV to the Wall (depending on the model) Caution: Pulling, pushing, or climbing on the TV may cause the TV to fall. In particular, ensure your children do not hang over o...
Page 28
Other Information 3. Firmly fasten the screw you provided (size M4x L20 or similar) to the wall or cabinet where the TV is to be installed. If you fasten the screw to the wall, we recommend you drive ...
Page 29
ther Inform ation Securing the TV to the Wall Caution: Pulling, pushing, or climbing onto the TV may cause the TV to fall. In particular, ensure that your children do not hang over or destabilize the ...
Page 30
Other Information Troubleshooting If the TV seems to have a problem, first try this list of possible problems and solutions. If none of these troubleshooting tips apply, visit samsung.com, then click ...
Page 31
ther Inform ation Issues Solutions and Explanations No Picture, No Video The TV will not turn on. Make sure the AC power cord is securely plugged into the wall outlet and the TV. Make sure the wall ou...
Page 32
Other Information Issues Solutions and Explanations Others The cable/set top box remote control Program the Cable/Sat remote control to operate the TV. Refer to the Cable/Sat user manual does not turn...
Page 33
ther Inform ation Specifications Environmental Considerations Operating Temperature 50°F to 104°F (10°C to 40°C) Operating Humidity 10% to 80%, non-condensing Storage Temperature -4°F to 113°F (-20°C ...
Page 34
Other Information Dimensions FROn T VIEW / SIDE VIEW (Unit: inches) Model name UN19D4003BD 16.4 16.1 9.1 9.7 10.9 12.2 1.5 4.8 UN26D4003BD 24.5 22.7 12.8 13.3 14.8 16.4 1.7 6.6 UN32D4003BD 29.7 27.5 1...
Page 35
ther Inform ation Index Antenna 7 Favorite Channel 12 Remote Control 6 Auto Program 12 Reset Picture Mode 15 HD 15 Balance 16 HDMI 8 Screen Fit 15 Sleep Timer 17 Slide Show 22 Software Upgrade 20 Cabl...
