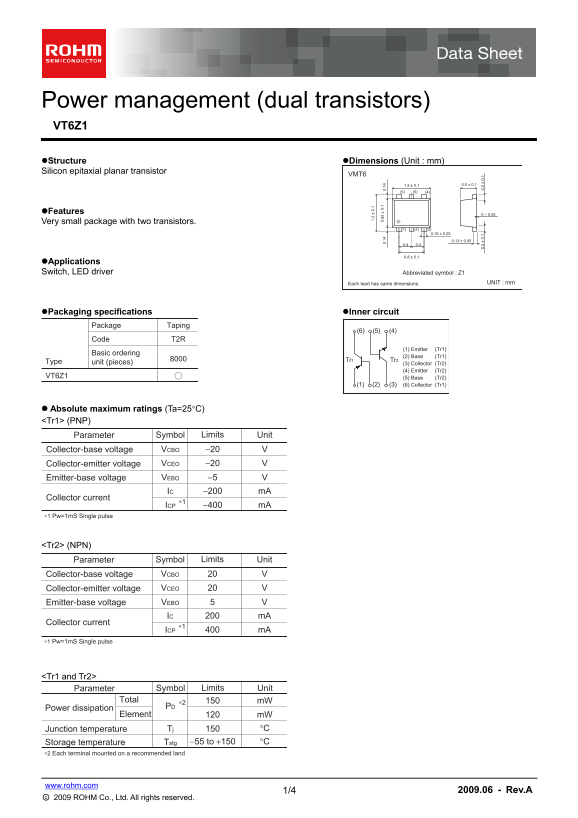

Power management (dual transistors) VT6Z1 Structure Dimensions (Unit : mm) Silicon epitaxial planar transistor
Features 0 ~ 0.05 Very small package with two transistors.
Applications Switch, LED driver Abbreviated symbol : Z1
Each lead has same dimensions. UNIT : mm
Packaging specifications Inner circuit
Package Taping
Code T2R
(1) Emitter (Tr1)
Basic ordering
(2) Base (Tr1)
Tr2Tr1
Type unit (pieces) (3) Collector (Tr2)
(4) Emitter (Tr2) 1. .1
VT6Z1 (5) Base (Tr2)
(1) (3)(2) (6) Collector (Tr1) 0. 0.
Absolute maximum ratings (Ta=25°C) <Tr1> (PNP)
Parameter Symbol Limits Unit
Collector-base voltage VCBO −20 Collector-emitter voltage VCEO −20 Emitter-base voltage VEBO −5
IC m A−200
Collector current
ICP m A−400
∗1 Pw=1m S Single pulse
<Tr2> (NPN)
Parameter Symbol Limits Unit
Collector-base voltage VCBO Collector-emitter voltage VCEO Emitter-base voltage VEBO IC m A200
Collector current
∗1 ICP m A400
∗1 Pw=1m S Single pulse
<Tr1 and Tr2>
Symbol Limits Unit Parameter
Total m W∗2
Power dissipation PD
Element m W
Junction temperature Tj °C
Storage temperature Tstg −55 to +150 °C
∗2 Each terminal mounted on a recommended land
