The US6X7 transistor is a general-purpose, high-performance component specializing in low-frequency amplification, supporting stable operation up to 12V and handling substantial collector current of 1.5A. This comprehensive datasheet details crucial technical parameters for reliable circuit design, including absolute maximum ratings, detailed electrical characteristics (such as $h_{FE}$ gain and saturation voltage), and performance curves. It is ideally suited for integration into typical consumer electronics, such as audio-visual equipment, office automation tools, and general industrial appliances.

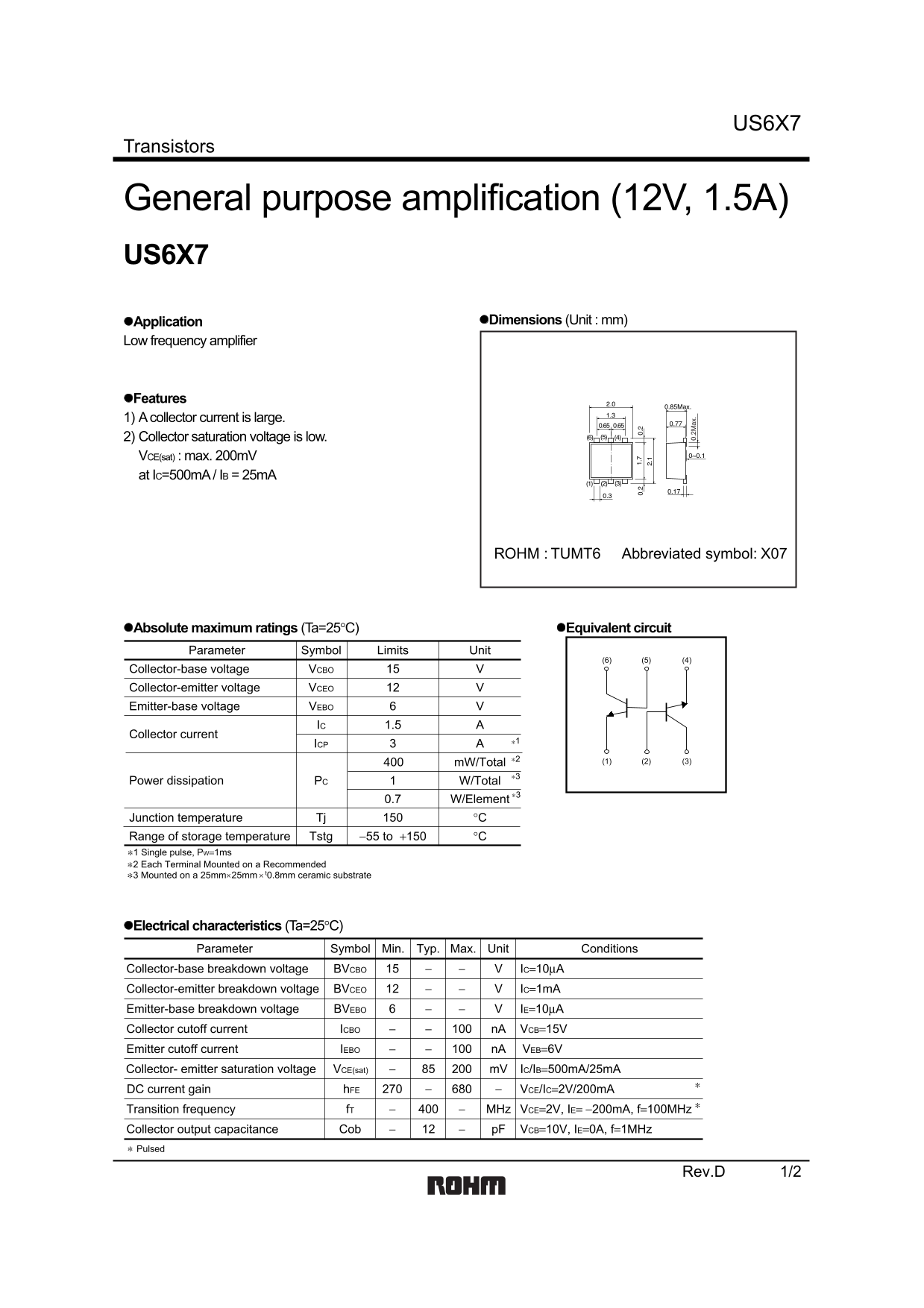

Page 1 Text Content
US6X7
Transistors
General purpose amplification (12V, 1.5A) US6X7
Application Dimensions (Unit : mm)
Low frequency amplifier
Features 1) A collector current is large. 2) Collector saturation voltage is low. VCE(sat) : max. 200m V at IC=500m A / IB = 25m A
ROHM : TUMT6 Abbreviated symbol: X07
Absolute maximum ratings (Ta=25°C) Equivalent circuit
Parameter Symbol Limits Unit
Collector-base voltage VCBO Collector-emitter voltage VCEO
0. 2M ax
Emitter-base voltage VEBO
IC 1.5
Collector current
ICP ∗1 ∗2 (1) (2) (3)
m W/Total
Power dissipation PC W/Total
0.7 W/Element
Junction temperature Tj °C Range of storage temperature Tstg −55 to +150 °C ∗1 Single pulse, PW=1ms ∗2 Each Terminal Mounted on a Recommended ∗3 Mounted on a 25mm 25mm t0.8mm ceramic substrate+
Electrical characteristics (Ta=25°C)
Parameter Symbol Min. Typ. Max. Unit Conditions
BVCBO IC=10µACollector-base breakdown voltage BVCEO IC=1m ACollector-emitter breakdown voltage BVEBO IE=10µAEmitter-base breakdown voltage ICBO n A VCB=15VCollector cutoff current
Emitter cutoff current n A VEB=6VIEBO
VCE(sat) m V IC/IB=500m A/25m ACollector- emitter saturation voltage h FE VCE/IC=2V/200m ADC current gain f T MHz VCE=2V, IE= −200m A, f=100MHz Transition frequency Cob p F VCB=10V, IE=0A, f=1MHz Collector output capacitance
∗ Pulsed
Rev.D 1/2
