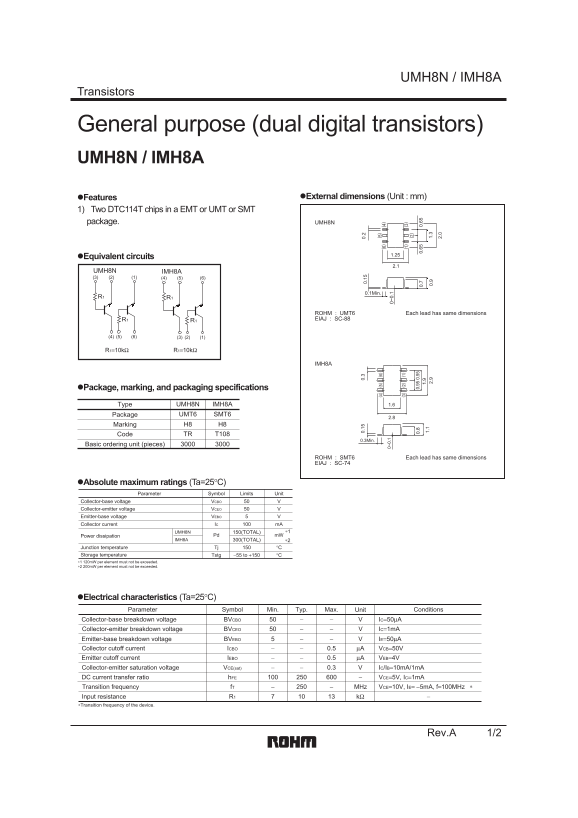

UMH8N / IMH8A
Transistors
General purpose (dual digital transistors) UMH8N / IMH8A
Features External dimensions (Unit : mm)
1) Two DTC114T chips in a EMT or UMT or SMT package. UMH8N
Equivalent circuits
UMH8N IMH8A
0.1Min.
Each lead has same dimensions ROHM : UMT6
R1 R1 EIAJ : SC-88
IMH8A 0. 0. 0.
Package, marking, and packaging specifications 0~ 0.
Type UMH8N IMH8A 1.6
Package UMT6 SMT6
Marking H8 H8 1.
Code TR T108
0.3Min. 2.
Basic ordering unit (pieces)
Each lead has same dimensions ROHM : SMT6
EIAJ : SC-74
Absolute maximum ratings (Ta=25 C)
Parameter Symbol Limits Unit
Collector-base voltage VCBO Collector-emitter voltage VCEO
Emitter-base voltage VEBO
Collector current IC m A 150(TOTAL)UMH8N ∗1 Power dissipation Pd m W
IMH8A 300(TOTAL) ∗2
Junction temperature Tj °C Storage temperature Tstg −55 to +150 °C ∗1 120m W per element must not be exceeded. ∗2 200m W per element must not be exceeded.
Electrical characteristics (Ta=25 C)
Parameter Symbol Min. Typ. Max. Unit Conditions
Collector-base breakdown voltage BVCBO IC=50μA
Collector-emitter breakdown voltage BVCEO IC=1m A Emitter-base breakdown voltage BVEBO IE=50μA
Collector cutoff current ICBO 0.5 μA VCB=50V Emitter cutoff current IEBO 0.5 μA VEB=4V
Collector-emitter saturation voltage VCE(sat) 0.3 IC/IB=10m A/1m A
DC current transfer ratio h FE VCE=5V, IC=1m A
Transition frequency f T MHz VCE=10V, IE= −5m A, f=100MHz
Input resistance R1 kΩ
∗Transition frequency of the device.
