ROHM UMA9N FMA9A Data Sheet
Summary
These complex digital transistors are optimized for interface and driver circuit applications, featuring two chips in one package with built-in biasing resistors. This design eliminates the need for external input components, simplifying circuit integration and minimizing parasitic effects. The accompanying manual provides comprehensive electrical characteristics, absolute maximum ratings, and performance curves necessary for reliable design implementation across various switching conditions. Ideal for engineers seeking high-performance, easy-to-use digital control components in RoHS-compliant designs.

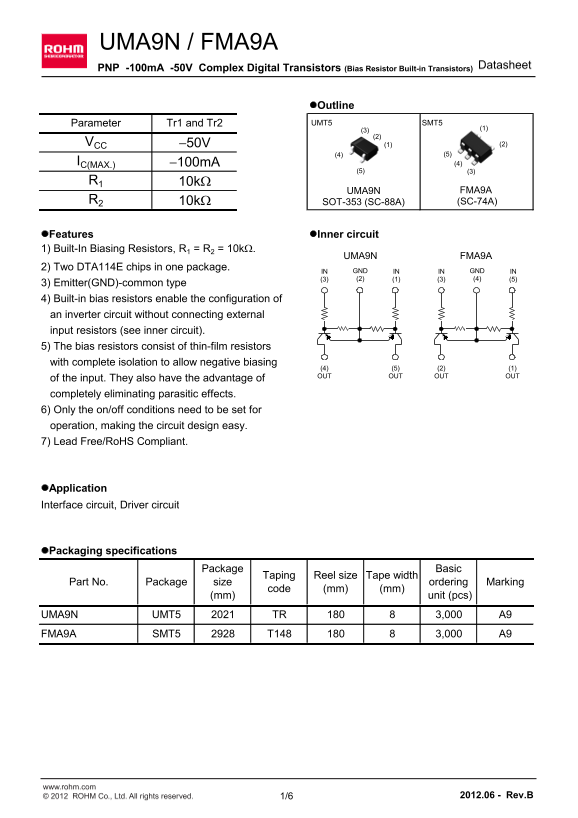

Page 1 Text Content
UMA9N / FMA9A
Datasheet
PNP -100m A -50V Complex Digital Transistors (Bias Resistor Built-in Transistors)
l Outline Parameter Tr1 and Tr2 UMT5 SMT5
VCC -50V (1) (2)
IC(MAX.) -100m A (4)
UMA9N FMA9A
R2 10k W SOT-353 (SC-88A) (SC-74A)
l Features l Inner circuit 1) Built-In Biasing Resistors, R1 = R2 = 10k W.
UMA9N FMA9A
2) Two DTA114E chips in one package.
IN GND IN IN GND IN (3) (2) (1) (3) (4) (5)
3) Emitter(GND)-common type 4) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see inner circuit). 5) The bias resistors consist of thin-film resistors with complete isolation to allow negative biasing
(4) (5) (2) (1) OUT OUT OUT OUT
of the input. They also have the advantage of completely eliminating parasitic effects. 6) Only the on/off conditions need to be set for operation, making the circuit design easy. 7) Lead Free/Ro HS Compliant.
l Application Interface circuit, Driver circuit
l Packaging specifications
Package Basic
Taping Reel size Tape width
Part No. Package size ordering Marking
code (mm) (mm)
(mm) unit (pcs)
UMA9N UMT5 TR 3,000 A9 FMA9A SMT5 T148 3,000 A9
www.rohm.com © 2012 ROHM Co., Ltd. All rights reserved. 1/6 2012.06 - Rev.B
Page Summary Contents For ROHM UMA9N FMA9A Data Sheet
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 7 |
| File Size | 553.54 KB |
| Published | June 21, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
How can I easily set up an inverter circuit using this component?
The built-in bias resistors enable the configuration of an inverter circuit without needing to connect external input resistors.
What is the maximum allowable collector current (I(C)) for this device?
For the UMA9N, the absolute maximum rated collector current $I_{C(MAX)}$ is -100mA.
Can I use this component in life-critical systems like medical or aerospace machinery?
No. It should not be used for systems requiring an extremely high level of reliability (e.g., medical instruments), and you must consult a ROHM representative first.
What are the total power dissipation limits when using the FMA9A package?
The maximum permissible power dissipation ($P_D$) for the FMA9A model is 300mW.
