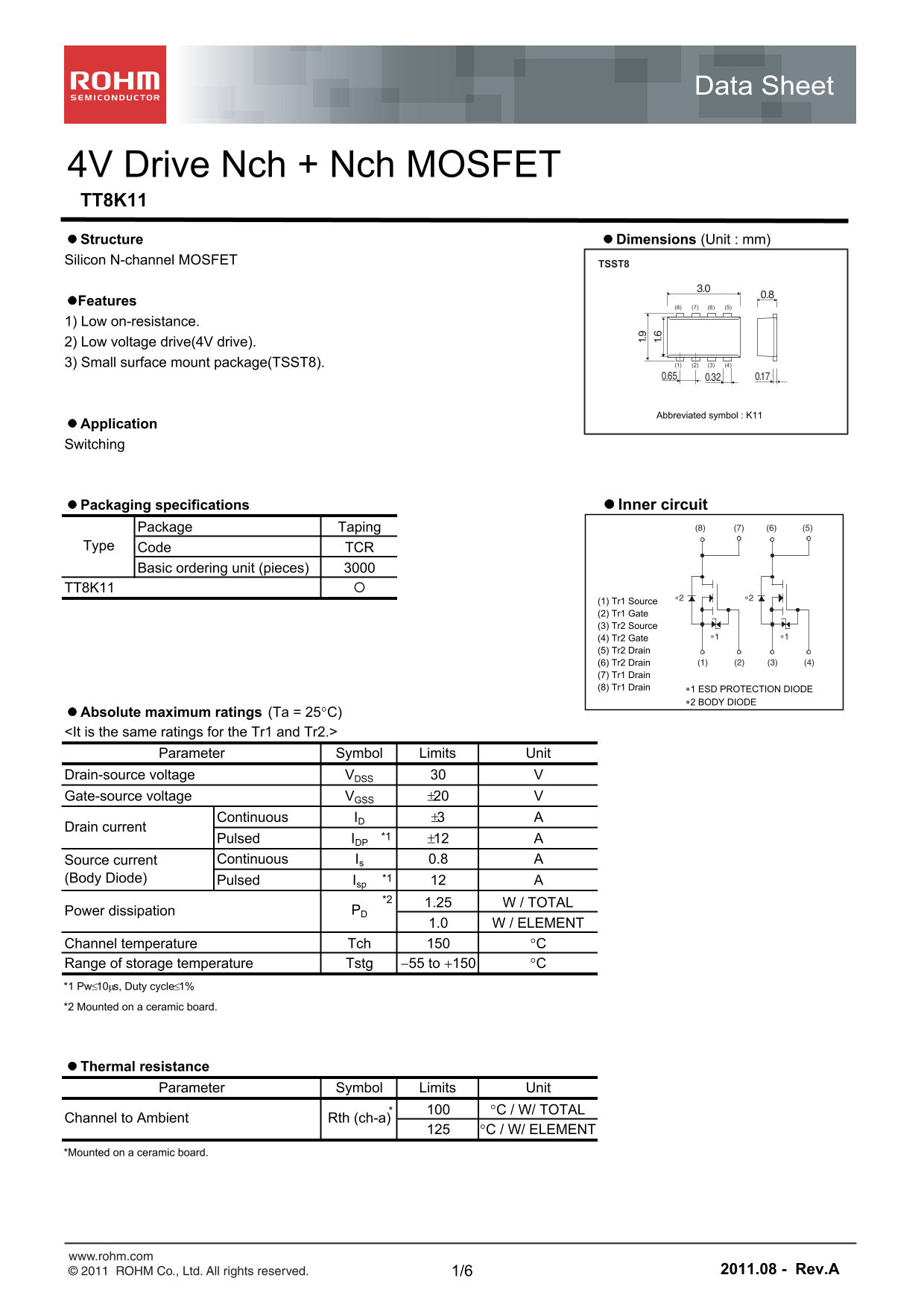

Data Sheet

4V Drive Nch + Nch MOSFET TT8K11 Structure Dimensions (Unit : mm) Silicon N-channel MOSFET TSST8

Features

1) Low on-resistance. 2) Low voltage drive(4V drive). 3) Small surface mount package(TSST8). (1) (2) (3) (4)

Abbreviated symbol : K11

Application Switching

Packaging specifications Inner circuit

Package Taping (8) (7) (6) (5)

Type Code TCR Basic ordering unit (pieces) TT8K11

(1) Tr1 Source (2) Tr1 Gate (3) Tr2 Source

(4) Tr2 Gate ∗1 ∗1

(5) Tr2 Drain

(6) Tr2 Drain (1) (2) (3) (4)

(7) Tr1 Drain (8) Tr1 Drain 1 ESD PROTECTION DIODE

2 BODY DIODE

Absolute maximum ratings (Ta = 25C) <It is the same ratings for the Tr1 and Tr2.>

Parameter Symbol Limits Unit

Drain-source voltage VDSS Gate-source voltage VGSS 20

Continuous ID 3

Drain current

Pulsed IDP *1 12

Source current Continuous Is 0.8

(Body Diode) Pulsed Isp *1 *2 1.25 W / TOTAL PDPower dissipation 1.0 W / ELEMENT

Channel temperature Tch C Range of storage temperature Tstg 55 to 150 C *1 Pw10s, Duty cycle1% *2 Mounted on a ceramic board.

Thermal resistance

Parameter Symbol Limits Unit

C / W/ TOTAL

Channel to Ambient Rth (ch-a)

C / W/ ELEMENT

*Mounted on a ceramic board.

www.rohm.com

Page Summary Contents For ROHM TT8K11 Data Handbook

Page 1 Data Sheet 4V Drive Nch + Nch MOSFET TT8K11 Structure Dimensions (Unit : mm) Silicon N-channel MOSFET TSST8 Features 1) Low on-resistance. 2) Low voltage drive(4V drive). 3) Small surface mount pac...

Page 2 Data Sheet TT8K11 Electrical characteristics (Ta = 25C) <It is the same characteristics for the Tr1 and Tr2.> Parameter Symbol Min. Typ. Max. Unit Conditions Gate-source leakage IGSS 10 A VG...

Page 3 Data Sheet TT8K11 Electrical characteristic curves (Ta=25C) ta ti ra in -S rc -S ta te is ta ta ti ra in -S rc -S ta te is ta (o [m [m ra in rr Fig.1 Typical Output Characteristics (Ⅰ) Fig.2 Typical...

Page 4 Data Sheet TT8K11 rw rd ra fe it ta it in im rc rr Fig.7 Forward Transfer Admittance vs. Drain Current Fig.8 Typical Transfer Characteristics VDS=10V VDS=10V pulsed pulsed Ta=125°C Ta=75°C Ta=25°C 0.1...

Page 5 Data Sheet TT8K11 rm li ra ie rm is ta r（ t） it Fig.13 Typical Capacitance vs. Drain-Source Voltage Fig.14 Maximum Safe Operating Area Ta=25°C Operation in this area is limited by RDS(on) f=1MHz (VGS ...

Page 6 Data Sheet TT8K11 Measurement circuits Pulse width VGS ID VDS 90% 50% 50% VGS 10% RG VDD 90% 90% trtd(on) tftd(off) ton toff Fig.1-1 Switching Time Measurement Circuit Fig.1-2 Switching Waveforms VGS...

Page 7 Notice Thank you for your accessing to ROHM product informations. More detail product informations and catalogs are available, please contact us. ROHM Customer Support System http://www.rohm.com/conta...
