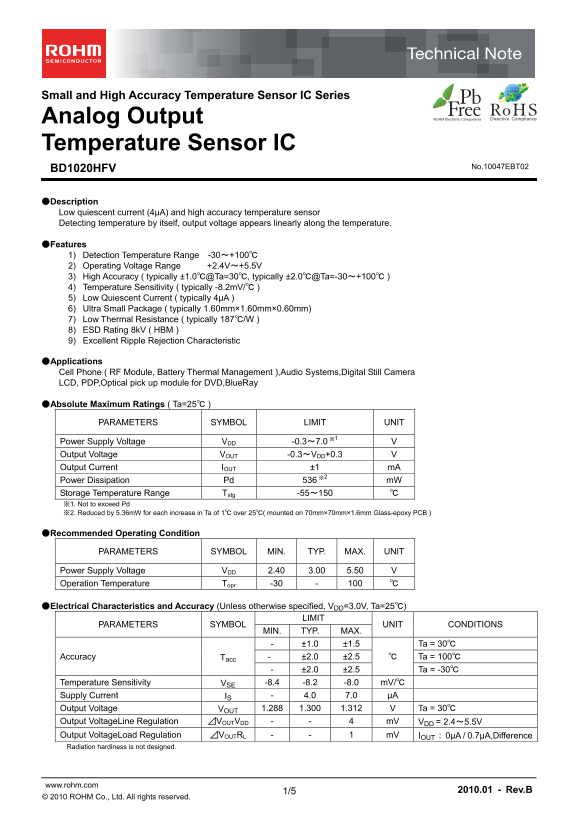

Small and High Accuracy Temperature Sensor IC Series
Analog Output Temperature Sensor IC
BD1020HFV No.10047EBT02
●Description Low quiescent current (4µA) and high accuracy temperature sensor Detecting temperature by itself, output voltage appears linearly along the temperature.
●Features 1) Detection Temperature Range -30～+100℃ 2) Operating Voltage Range +2.4V～+5.5V 3) High Accuracy ( typically ±1.0℃@Ta=30℃, typically ±2.0℃@Ta=-30～+100℃ ) 4) Temperature Sensitivity ( typically -8.2m V/℃ ) 5) Low Quiescent Current ( typically 4µA ) 6) Ultra Small Package ( typically 1.60mm×1.60mm×0.60mm) 7) Low Thermal Resistance ( typically 187℃/W ) 8) ESD Rating 8k V ( HBM ) 9) Excellent Ripple Rejection Characteristic
●Applications Cell Phone ( RF Module, Battery Thermal Management ),Audio Systems,Digital Still Camera LCD, PDP,Optical pick up module for DVD,Blue Ray
●Absolute Maximum Ratings ( Ta=25℃ )
PARAMETERS SYMBOL LIMIT UNIT
Power Supply Voltage VDD -0.3～7.0 Output Voltage VOUT -0.3～VDD+0.3 V Output Current IOUT ±1 m A
Power Dissipation Pd 536 Storage Temperature Range Tstg -55～150 ℃ ※1. Not to exceed Pd ※2. Reduced by 5.36m W for each increase in Ta of 1℃ over 25℃( mounted on 70mm×70mm×1.6mm Glass-epoxy PCB )
●Recommended Operating Condition
PARAMETERS SYMBOL MIN. TYP. MAX. UNIT
Power Supply Voltage VDD 2.40 3.00 5.50 V Operation Temperature Topr -30 - 100 ℃
●Electrical Characteristics and Accuracy (Unless otherwise specified, VDD=3.0V, Ta=25℃)
LIMIT
PARAMETERS SYMBOL UNIT CONDITIONS
MIN. TYP. MAX. - ±1.0 ±1.5 Ta = 30℃
Accuracy Tacc - ±2.0 ±2.5 Ta = 100℃
- ±2.0 ±2.5 Ta = -30℃
Temperature Sensitivity VSE -8.4 -8.2 -8.0 m V/℃ Supply Current IS - 4.0 7.0 µA Output Voltage VOUT 1.288 1.300 1.312 V Ta = 30℃ Output Voltage Line Regulation ⊿VOUTVDD - - 4 m V VDD = 2.4～5.5V Output Voltage Load Regulation ⊿VOUTRL - - 1 m V IOUT：0µA / 0.7µA,Difference Radiation hardiness is not designed.
www.rohm.com 2010.01 - Rev.B
© 2010 ROHM Co., Ltd. All rights reserved.
