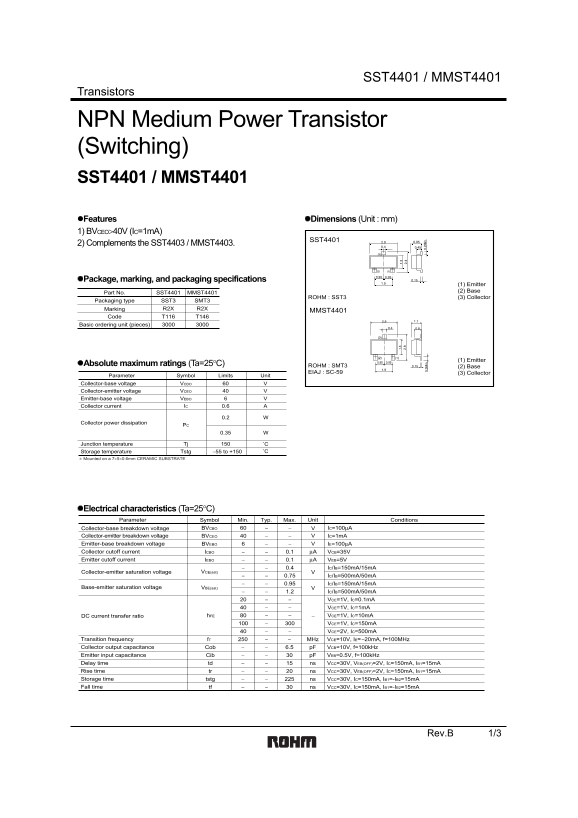

SST4401 / MMST4401
Transistors
NPN Medium Power Transistor (Switching) SST4401 / MMST4401
Features Dimensions (Unit : mm)
1) BVCEO>40V (IC=1m A)
SST4401
2) Complements the SST4403 / MMST4403.
Package, marking, and packaging specifications
(1) Emitter Part No. SST4401 MMST4401 (2) Base ROHM : SST3 (3) Collector
Packaging type SST3 SMT3
Marking R2X R2X
MMST4401
Code T116 T146
Basic ordering unit (pieces)
(1) Emitter
Absolute maximum ratings (Ta=25°C) ROHM : SMT3
(2) Base
EIAJ : SC-59 (3) Collector
Parameter Symbol Limits Unit
Collector-base voltage VCBO
Collector-emitter voltage VCEO Emitter-base voltage VEBO Collector current IC 0.6
Collector power dissipation
Junction temperature Tj ˚C
Storage temperature Tstg −55 to +150 ˚C
∗ Mounted on a 7 5 0.6mm CERAMIC SUBSTRATE+
Electrical characteristics (Ta=25°C)
Parameter Symbol Min. Typ. Max. Unit Conditions
Collector-base breakdown voltage BVCBO IC=100µA
Collector-emitter breakdown voltage BVCEO IC=1m A Emitter-base breakdown voltage BVEBO IE=100µA Collector cutoff current ICBO 0.1 µA VCB=35V Emitter cutoff current IEBO 0.1 µA VEB=5V
0.4 IC/IB=150m A/15m A
Collector-emitter saturation voltage VCE(sat)
0.75 IC/IB=500m A/50m A 0.95 IC/IB=150m A/15m A
Base-emitter saturation voltage VBE(sat)
1.2 IC/IB=500m A/50m A VCE=1V, IC=0.1m A VCE=1V, IC=1m A DC current transfer ratio h FE VCE=1V, IC=10m A VCE=1V, IC=150m A VCE=2V, IC=500m A
Transition frequency f T MHz VCE=10V, IE= −20m A, f=100MHz Collector output capacitance Cob 6.5 p F VCB=10V, f=100k Hz Emitter input capacitance Cib p F VEB=0.5V, f=100k Hz Delay time td ns VCC=30V, VEB(OFF)=2V, IC=150m A, IB1=15m A
tr ns VCC=30V, VEB(OFF)=2V, IC=150m A, IB1=15m ARise time
Storage time tstg ns VCC=30V, IC=150m A, IB1=-IB2=15m A
tf ns VCC=30V, IC=150m A, IB1=-IB2=15m A Fall time
