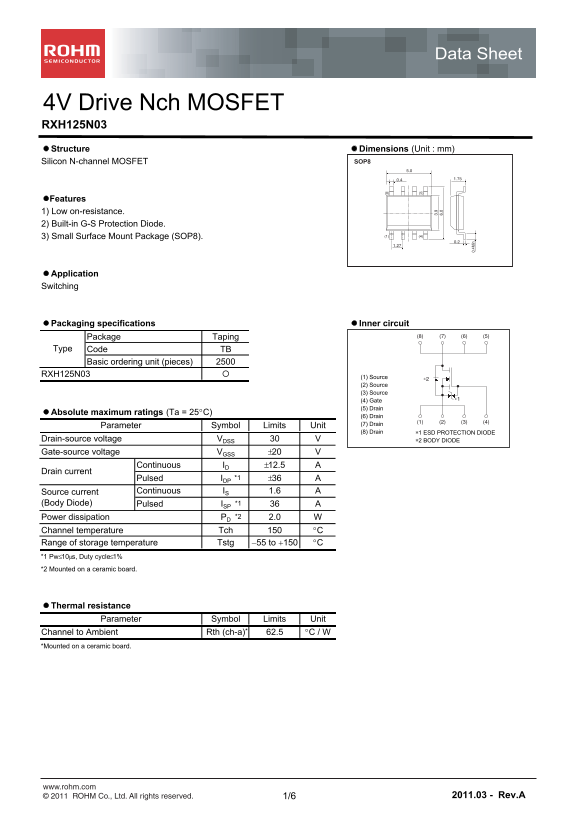

Data Sheet

4V Drive Nch MOSFET RXH125N03 Structure Dimensions (Unit : mm)

Silicon N-channel MOSFET SOP8

Features 1) Low on-resistance. 2) Built-in G-S Protection Diode.

3) Small Surface Mount Package (SOP8). (1) (4)

Application Switching

Packaging specifications Inner circuit

Package Taping (8) (7) (6) (5)

Type Code TB Basic ordering unit (pieces) RXH125N03

(1) Source ∗2 (2) Source (3) Source

(4) Gate ∗1

(5) Drain

Absolute maximum ratings (Ta = 25C)

(6) Drain

(7) Drain

Parameter Symbol Limits Unit

(8) Drain ∗1 ESD PROTECTION DIODE

Drain-source voltage VDSS ∗2 BODY DIODE

Gate-source voltage VGSS 20 Continuous ID 12.5

Drain current

Pulsed IDP *1 36

Source current Continuous IS 1.6 (Body Diode) Pulsed ISP *1

Power dissipation PD *2 2.0

Channel temperature Tch C Range of storage temperature Tstg 55 to 150 C *1 Pw10s, Duty cycle1% *2 Mounted on a ceramic board.

Thermal resistance

Parameter Symbol Limits Unit

Channel to Ambient Rth (ch-a) 62.5 C / W *Mounted on a ceramic board.

www.rohm.com

© 2011 ROHM Co., Ltd. All rights reserved. 1/6 2011.03 - Rev.A

Page Summary Contents For ROHM RXH125N03 Data Sheet

Page 1 Data Sheet 4V Drive Nch MOSFET RXH125N03 Structure Dimensions (Unit : mm) Silicon N-channel MOSFET SOP8 Features 1) Low on-resistance. 2) Built-in G-S Protection Diode. 3) Small Surface Mount Packa...
Page 2 Data Sheet RXH125N03 Electrical characteristics (Ta = 25C) Parameter Symbol Min. Typ. Max. Unit Conditions Gate-source leakage IGSS 10 A VGS=20V, VDS=0V Drain-source breakdown voltage V(BR)DSS ID...
Page 3 Data Sheet RXH125N03 Electrical characteristic curves (Ta=25C) ra in rr ta ti ra in -S rc -S ta te is ta ta ti ra in -S rc -S ta te is ta Fig.1 Typical Output Characteristics (Ⅰ) Fig.2 Typical Outpu...
Page 4 Data Sheet RXH125N03 rc rr rw rd ra fe it ta it in im Fig.7 Forward Transfer Admittance vs. Drain Current Fig.8 Typical Transfer Characteristics VDS=10V VDS=10V pulsed pulsed Ta=125°C Ta=75°C Ta=25°C ...
Page 5 Data Sheet RXH125N03 rm li ra ie rm is ta t) it Fig.13 Typical Capacitance vs. Drain-Source Voltage Fig.14 Maximum Safe Operating Area Operation in this area is limited by RDS(on) (VGS = 10V) PW = 100...
Page 6 Data Sheet RXH125N03 Measurement circuits Pulse width VGS ID VDS 90% 50% 50% RL VGS 10% RG VDD 90% 90% trtd(on) tftd(off) ton toff Fig.1-1 Switching Time Measurement Circuit Fig.1-2 Switching Wavefor...
Page 7 Notice Thank you for your accessing to ROHM product informations. More detail product informations and catalogs are available, please contact us. ROHM Customer Support System http://www.rohm.com/conta...
