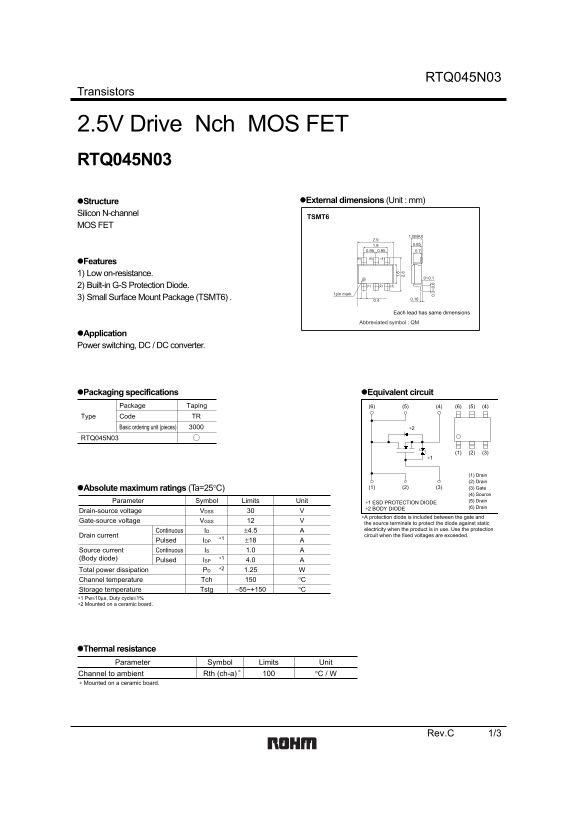

Page 1 Text Content

RTQ045N03

Transistors

2.5V Drive Nch MOS FET RTQ045N03

Structure External dimensions (Unit : mm)

Silicon N-channel

TSMT6

MOS FET

1.0MAX

Features 1) Low on-resistance.

2) Built-in G-S Protection Diode. (1) (2) (3)

1pin mark

3) Small Surface Mount Package (TSMT6) . 0.4 0.16

Each lead has same dimensions

Abbreviated symbol : QM

Application Power switching, DC / DC converter.

Packaging specifications Equivalent circuit

Package Taping (6) (5) (4) (6) (5) (4)

Type Code TR

Basic ordering unit (pieces) ∗2

RTQ045N03

(1) Drain (2) Drain

Absolute maximum ratings (Ta=25°C) (1) (2) (3) (3) Gate

(4) Source Parameter Symbol Limits Unit ∗1 ESD PROTECTION DIODE (5) Drain ∗2 BODY DIODE (6) Drain

Drain-source voltage VVDSS

∗A protection diode is included between the gate and

Gate-source voltage VVGSS

the source terminals to protect the diode against static Continuous ±4.5 AID electricity when the product is in use. Use the protection Drain current circuit when the fixed voltages are exceeded.

Pulsed ±18 AIDP

Continuous Source current 1.0 AIS

(Body diode) ∗1

Pulsed 4.0 AISP Total power dissipation ∗2 1.25 WPD

Channel temperature °CTch

Storage temperature −55~+150 °CTstg

∗1 Pw≤10µs, Duty cycle≤1% ∗2 Mounted on a ceramic board.

Thermal resistance

Parameter Symbol Limits Unit

Channel to ambient °C / WRth (ch-a) ∗ Mounted on a ceramic board.

Rev.C 1/3

Page Summary Contents For ROHM RTQ045N03 Data Sheet

Page 1 RTQ045N03 Transistors 2.5V Drive Nch MOS FET RTQ045N03 Structure External dimensions (Unit : mm) Silicon N-channel TSMT6 MOS FET 1.0MAX Features 1) Low on-resistance. 2) Built-in G-S Protection Diode....
Page 2 RTQ045N03 Transistors Electrical characteristics (Ta=25°C) Parameter Symbol Min. Typ. Max. Unit Conditions Gate-source leakage IGSS ±10 µA VGS=±12V, VDS=0V V(BR) DSSDrain-source breakdown voltage ID=1...
Page 3 IC IN -S RTQ045N03 -S IS on ) ( IN IT p F Transistors Electrical characteristic curves Ta=25°C Ta=25°C VDD=15V 4.5 VDD=15V Ciss VGS=4.5V ID=4.5A tf RG=10Ω RG=10Ω Pulsed 3.5 Pulsed td (off) Coss 2.5 Cr...
Page 4 Appendix Notes No technical content pages of this document may be reproduced in any form or transmitted by any means without prior permission of ROHM CO.,LTD. The contents described herein are subject...
