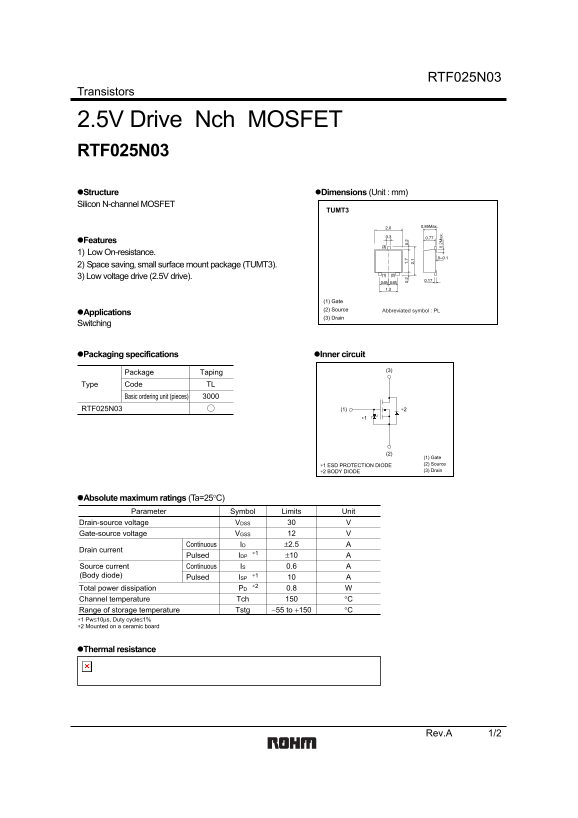

RTF025N03
Transistors
2.5V Drive Nch MOSFET RTF025N03 Structure Dimensions (Unit : mm) Silicon N-channel MOSFET
TUMT3
Features 1) Low On-resistance. 2) Space saving, small surface mount package (TUMT3). 3) Low voltage drive (2.5V drive).
(1) Gate (2) Source Abbreviated symbol : PL
Applications
(3) Drain
Switching
Packaging specifications Inner circuit
Package Taping
Type Code TL
Basic ordering unit (pieces)
RTF025N03 (1) ∗2 ∗1
0. 2M ax
(1) Gate ∗1 ESD PROTECTION DIODE (2) Source ∗2 BODY DIODE (3) Drain
Absolute maximum ratings (Ta=25°C)
Parameter Symbol Limits Unit
Drain-source voltage VVDSS Gate-source voltage VVGSS Continuous ±2.5 AID
Drain current
Pulsed ±10 AIDP Source current Continuous 0.6 AIS
(Body diode) ∗1
Pulsed AISP
Total power dissipation 0.8 WPD Channel temperature °CTch
Range of storage temperature −55 to +150 °CTstg
∗1 Pw≤10µs, Duty cycle≤1% ∗2 Mounted on a ceramic board
Thermal resistance
Rev.A 1/2
