ROHM RSQ015N06 Data Sheet

Summary

This comprehensive datasheet details the RSQ015N06 Power MOSFET, an ideal component for high-efficiency switching applications such as DC/DC converters. Designed with low on-resistance, a built-in protection diode, and a compact TSMT6 surface mount package, this component handles up to 60V and 1.5A. The manual provides critical electrical data, including detailed thermal curves, transient performance analysis, and operational ratings needed by electronics engineers for reliable circuit design in power management systems.

📄 Preview ‹ PAGE OF 12 ›

‹

›

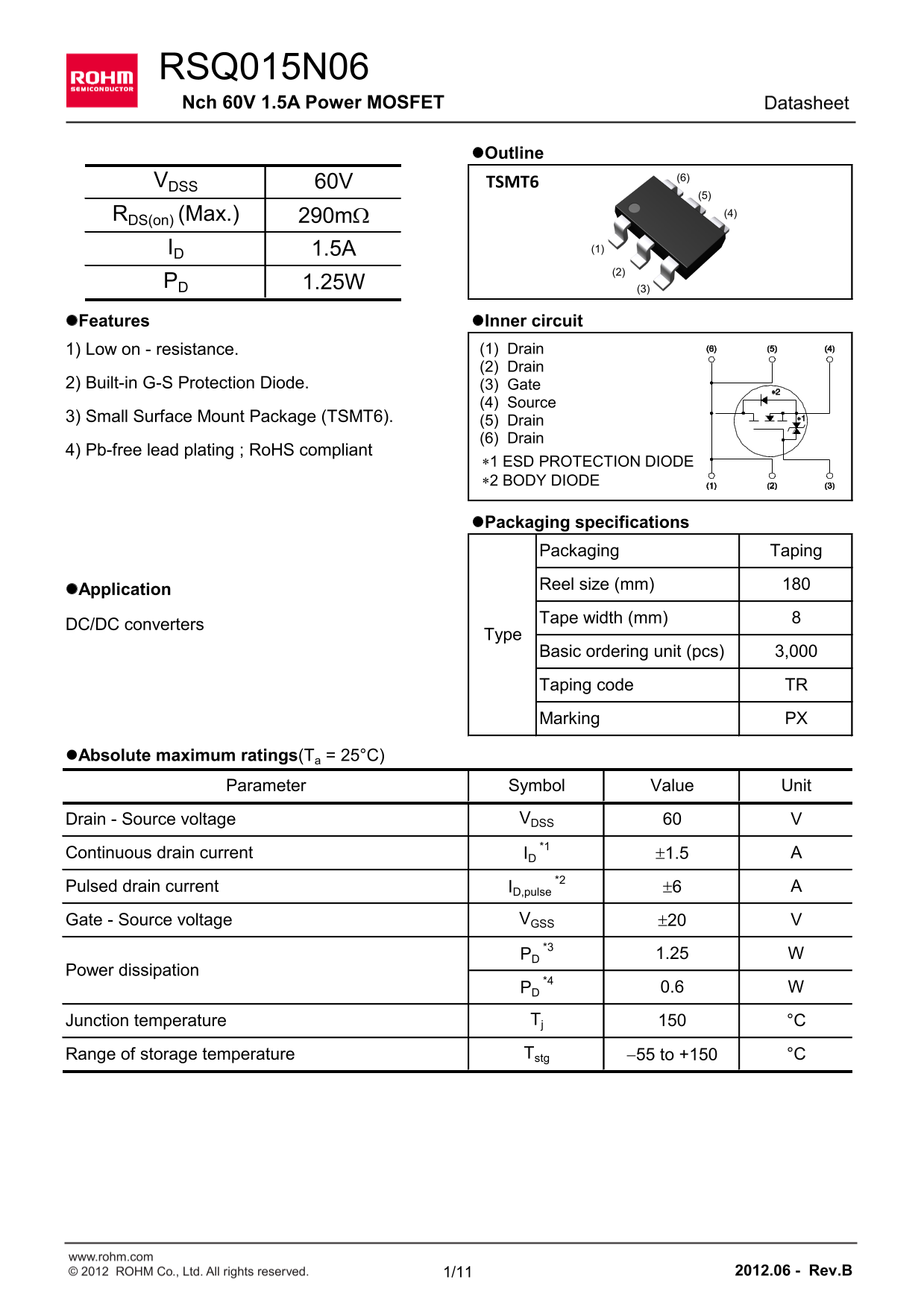

Page 1 Text Content

RSQ015N06 Nch 60V 1.5A Power MOSFET Datasheet

l Outline

VDSS 60V TSMT6

(5) RDS(on) (Max.) (4)

ID 1.5A (1) (2)

PD 1.25W

l Features l Inner circuit

1) Low on - resistance. (1) Drain (2) Drain

2) Built-in G-S Protection Diode. (3) Gate

(4) Source

3) Small Surface Mount Package (TSMT6).

(5) Drain (6) Drain

4) Pb-free lead plating ; Ro HS compliant

*1 ESD PROTECTION DIODE *2 BODY DIODE

l Packaging specifications Packaging Taping Reel size (mm)

l Application

Tape width (mm)

DC/DC converters

Type Basic ordering unit (pcs) 3,000 Taping code TR Marking PX

l Absolute maximum ratings(Ta = 25°C)

Parameter Symbol Value Unit

Drain - Source voltage VDSS *1

Continuous drain current ID 1.5

Pulsed drain current ID,pulse 6

Gate - Source voltage VGSS 20 *3

PD 1.25

Power dissipation

PD 0.6

Junction temperature Tj °C Range of storage temperature Tstg -55 to +150 °C

Page Summary Contents For ROHM RSQ015N06 Data Sheet

Page 1 RSQ015N06 Nch 60V 1.5A Power MOSFET Datasheet l Outline VDSS 60V TSMT6 (5) RDS(on) (Max.) (4) ID 1.5A (1) (2) PD 1.25W l Features l Inner circuit 1) Low on - resistance. (1) Drain (2) Drain 2) Built-i...

Page 2 Data Sheet RSQ015N06 l Thermal resistance Values Parameter Symbol Unit Min. Typ. Max. *3 Thermal resistance, junction - ambient Rth JA °C/W Thermal resistance, junction - ambient Rth JA °C/W l Electri...

Page 3 Data Sheet RSQ015N06 l Electrical characteristics(Ta = 25°C) Values Parameter Symbol Conditions Unit Min. Typ. Max. Input capacitance Ciss VGS = 0V Coss VDS = 10V p FOutput capacitance Reverse transfe...

Page 4 Data Sheet RSQ015N06 rm liz ra ie rm is ta is ip ti /P l Electrical characteristic curves Fig.1 Power Dissipation Derating Curve Fig.2 Maximum Safe Operating Area PW = 1ms PW = 100μs Operation in this...

Page 5 Data Sheet RSQ015N06 ra in rr -I l Electrical characteristic curves Fig.5 Typical Output Characteristics(I) Fig.6 Typical Output Characteristics(II) Ta=25ºC Ta=25ºC VGS= 10V Pulsed Pulsed VGS= 4.5V VG...

Page 6 Data Sheet RSQ015N06 ra in rc re lt te re ld lt [V (B )D l Electrical characteristic curves Fig.7 Breakdown Voltage Fig.8 Typical Transfer Characteristics vs. Junction Temperature VDS= 10V VGS=0V Puls...

Page 7 Data Sheet RSQ015N06 ta ti ra in rc -S ta te is ta ra in rr is ip ti l Electrical characteristic curves Fig.11 Drain Current Derating Curve Fig.12 Static Drain - Source On - State Resistance vs. Gate ...

Page 8 Data Sheet RSQ015N06 ta ti ra in rc -S ta te is ta ta ti ra in rc -S ta te is ta l Electrical characteristic curves Fig.15 Static Drain-Source On-State Fig.16 Static Drain - Source On - State Resistan...

Page 9 Data Sheet RSQ015N06 te rc lt it l Electrical characteristic curves Fig.18 Typical Capacitance Fig.19 Switching Characteristics vs. Drain - Source Voltage Ta=25ºC td(off) VDD= 30V VGS=10V RG=10Ω tf Pu...

Page 10 Data Sheet RSQ015N06 l Measurement circuits Fig.1-1 Switching Time Measurement Circuit Fig.1-2　Switching Waveforms Fig.2-1 Gate Charge Measurement Circuit Fig.2-2 Gate Charge Waveform www.rohm.com © 2...

Page 11 Data Sheet RSQ015N06 l Dimensions (Unit : mm) TSMT6 Patterm of terminal position areas MILIMETERS INCHES MIN MAX MIN MAX HE 2.60 3.00 0.102 0.118 L1 0.30 0.60 0.012 0.024 Lp 0.40 0.70 0.016 0.028 MILI...

Page 12 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...
