1.5V Drive Pch MOSFET RQ1A060ZP Structure Dimensions (Unit : mm) Silicon P-channel MOSFET

TSMT8

Features 1) Low on-resistance. 2) High power package. 0.17

(1) (2) (4)(3) 3) Low voltage drive. (1.5V) 0.65 0.32

Abbreviated symbol : YH Each lead has same dimensions

Applications Equivalent circuit Switching

Packaging specifications

Package Taping

Type Code TR

Basic ordering unit (pieces)

(1) Sorce

RQ1A060ZP

∗1 (2) Sorce

(3) Sorce (4) Gate (2) (3)(1) (4) (5) Drain (6) Drain ∗1 ESD PROTECTION DIODE (7) Drain ∗2 BODY DIODE (8) Drain

Absolute maximum ratings (Ta=25°C)

Parameter Symbol Limits Unit

Drain-source voltage −12 VVDSS Gate-source voltage ±10 VVGSS Continuous ±6 AID

Drain current

Pulsed ∗1 ±24 AIDP

Source current Continuous −1 AIS

(Body diode) ∗1

Pulsed −24 AISP Total power dissipation ∗2 1.5 WPD

Channel temperature °CTch

Range of Storage temperature −55 to +150 °CTstg

∗1 Pw≤10µs, Duty cycle≤1% ∗2 Mounted on a ceramic board

Thermal resistance

Parameter Symbol Limits Unit

Channel to ambient 83.3∗ °C / WRth(ch-a) ∗ Mounted on a ceramic board.

Page Summary Contents For ROHM RQ1A060ZP Data Sheet

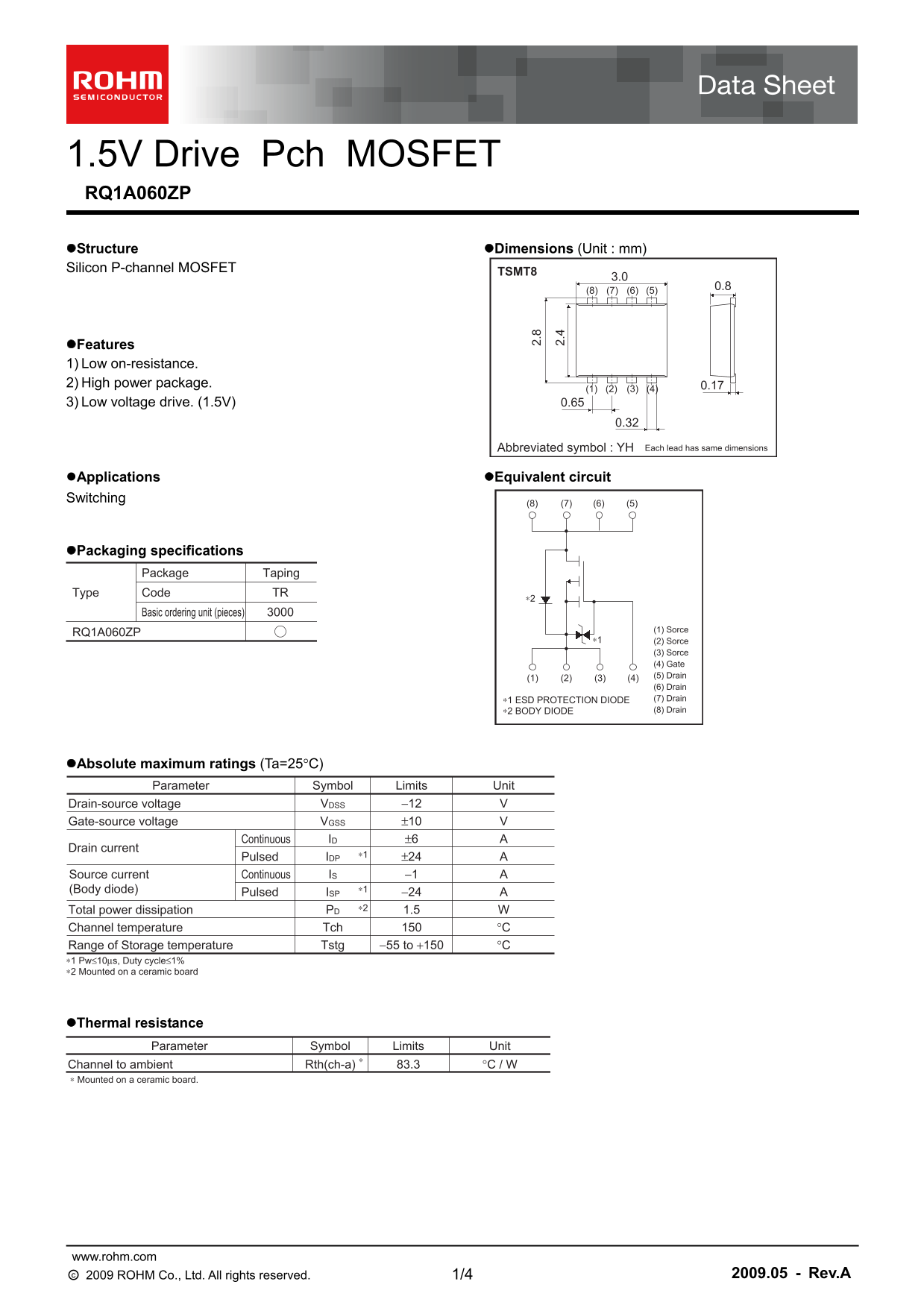

Page 1 1.5V Drive Pch MOSFET RQ1A060ZP Structure Dimensions (Unit : mm) Silicon P-channel MOSFET TSMT8 Features 1) Low on-resistance. 2) High power package. 0.17 (1) (2) (4)(3) 3) Low voltage drive. (1.5V) 0...

Page 2 RQ1A060ZP Data Sheet Electrical characteristics (Ta=25°C) Parameter Symbol Min. Typ. Max. Unit Conditions Gate-source leakage IGSS ±10 µA VGS=±10V, VDS=0V Drain-source breakdown voltage V(BR) DSS −12 ...

Page 3 RQ1A060ZP Data Sheet ST AT IC AI -S -S TA TE ST AT IC AI -S -S TA TE AI EN : - [A Electrical characteristic curves ES IS TA : R S( )[m ES IS TA : R S( )[m Ta=25°C Ta=25°C VDS= -6V Pulsed Pulsed Pulsed...

Page 4 RQ1A060ZP Data Sheet EV ER SE AI EN : - Is [A Ta=25°C Ta=25°C VDD= -6V AT E- SO VO LT AG : - S [ V] VGS=0V Pulsed VGS=-4.5V RG=10Ω Pulsed td(off) Pulsed Ta=125°C ID= -6.0A Ta=75°C Ta=25°C Ta=-25°C ID=...

Page 5 Notice No copying or reproduction of this document, in part or in whole, is permitted without the consent of ROHM Co.,Ltd. The content specified herein is subject to change for improvement without not...
