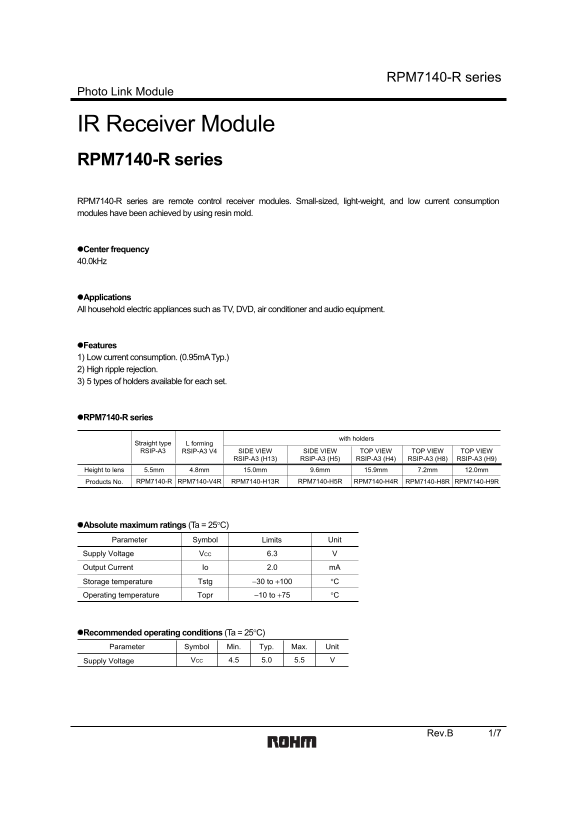

RPM7140-R series
Photo Link Module
IR Receiver Module RPM7140-R series RPM7140-R series are remote control receiver modules. Small-sized, light-weight, and low current consumption modules have been achieved by using resin mold.
Center frequency 40.0k Hz
Applications All household electric appliances such as TV, DVD, air conditioner and audio equipment.
Features 1) Low current consumption. (0.95m A Typ.) 2) High ripple rejection. 3) 5 types of holders available for each set.
RPM7140-R series
with holders
Straight type L forming RSIP-A3 RSIP-A3 V4 SIDE VIEW SIDE VIEW TOP VIEW TOP VIEW TOP VIEW
RSIP-A3 (H13) RSIP-A3 (H5) RSIP-A3 (H4) RSIP-A3 (H8) RSIP-A3 (H9)
Height to lens 5.5mm 4.8mm 15.0mm 9.6mm 15.9mm 7.2mm 12.0mm
Products No. RPM7140-V4R RPM7140-H13R RPM7140-H5RRPM7140-R RPM7140-H4R RPM7140-H8R RPM7140-H9R
Absolute maximum ratings (Ta = 25°C) Parameter Symbol Limits Unit
Supply Voltage VCC 6.3
Io m A2.0Output Current
Storage temperature Tstg −30 to +100 °C
Operating temperature Topr −10 to +75 °C
Recommended operating conditions (Ta = 25°C) Parameter Symbol Min. Typ. Max. Unit
Supply Voltage VCC 5.0 5.5 V4.5
Rev.B 1/7
