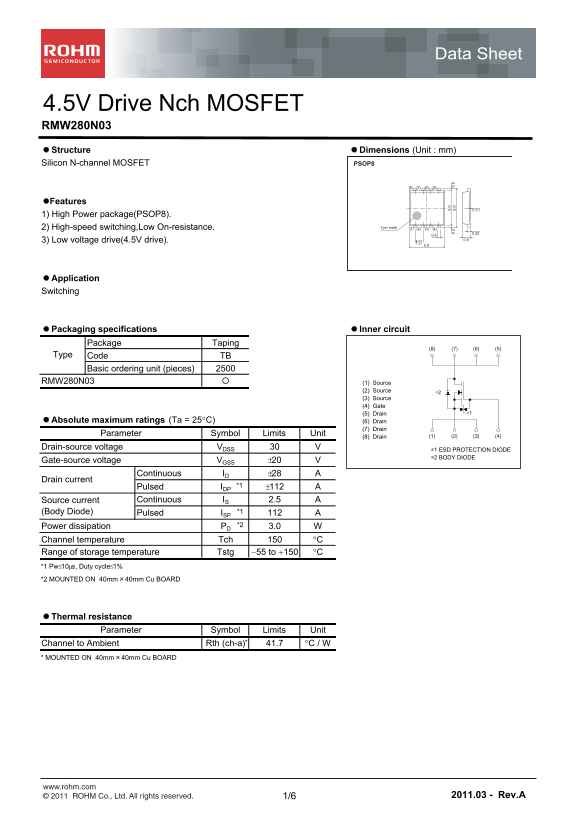

Data Sheet
4.5V Drive Nch MOSFET RMW280N03 Structure Dimensions (Unit : mm) Silicon N-channel MOSFET PSOP8
Features
1) High Power package(PSOP8).
2) High-speed switching,Low On-resistance. 1pin mark (1) (2) (3) (4)
3) Low voltage drive(4.5V drive). 0.9
Application Switching
Packaging specifications Inner circuit
Package Taping
Type Code TB Basic ordering unit (pieces) RMW280N03 (1) Source
(2) Source ∗2 (3) Source (4) Gate
(5) Drain ∗1
Absolute maximum ratings (Ta = 25C) (6) Drain
(7) Drain
Parameter Symbol Limits Unit (1) (2) (3) (4)
(8) Drain
Drain-source voltage VDSS 5.
∗1 ESD PROTECTION DIODE
∗2 BODY DIODE
Gate-source voltage VGSS 20
Continuous ID 28
Drain current
Pulsed IDP *1 112
Source current Continuous IS 2.5
(Body Diode) Pulsed ISP *1 Power dissipation PD *2 3.0
Channel temperature Tch C Range of storage temperature Tstg 55 to 150 C *1 Pw10s, Duty cycle1% *2 MOUNTED ON 40mm×40mm Cu BOARD
Thermal resistance
Parameter Symbol Limits Unit
Channel to Ambient Rth (ch-a) 41.7 C / W * MOUNTED ON 40mm×40mm Cu BOARD
