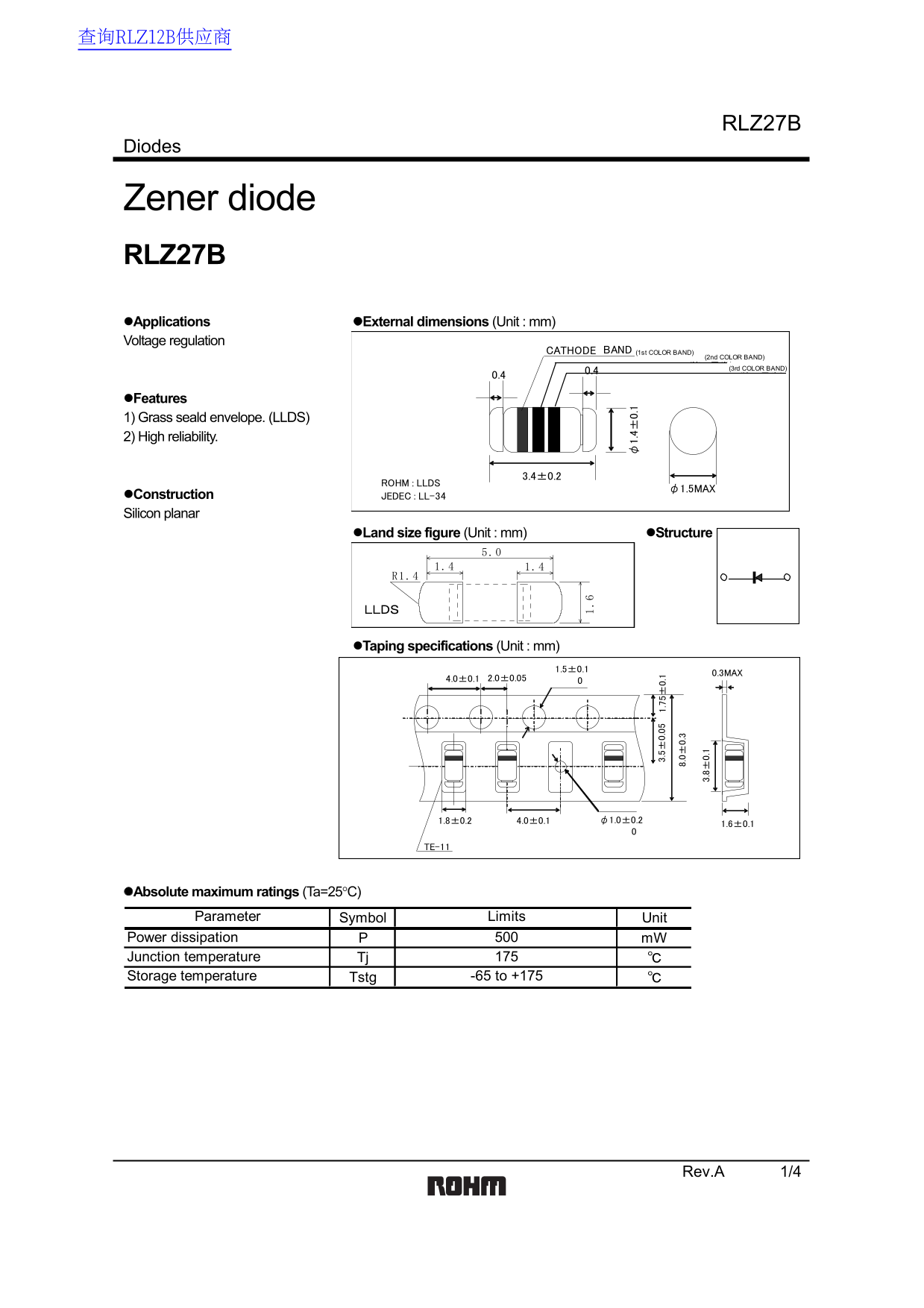

Page 1 Text Content

查询RLZ12B供应商

RLZ27B

Diodes

Zener diode RLZ27B Applications External dimensions (Unit : mm) Voltage regulation

CATHODE　BAND (1st COLOR BAND) (第１色帯)

(第２色帯) (2nd COLOR BAND) (3rd COLOR BAND) (第３色帯)

Features 1) Grass seald envelope. (LLDS) 2) High reliability.

ROHM : LLDS

φ1.5MAX

Construction JEDEC : LL-34 Silicon planar Land size figure (Unit : mm) Structure

Taping specifications (Unit : mm)

0.3MAX

TE-11

Absolute maximum ratings (Ta=25°C) Symbol

Parameter Limits Unit

Wower dissipation

ion temperature Tj Junct

torage temperature Tstg -65 to +175

Rev.A 1/4

Page Summary Contents For ROHM RLZ27B Data Sheet

Page 1 查询RLZ12B供应商 RLZ27B Diodes Zener diode RLZ27B Applications External dimensions (Unit : mm) Voltage regulation CATHODE　BAND (1st COLOR BAND) (第１色帯) (第２色帯) (2nd COLOR BAND) (3rd COLOR BAND) (第３色帯) Featur...

Page 2 RLZ27B Diodes Symbol Operating Rising operating Reverse current TYP. Zener voltage ：Vz(V) resistance ：Zz(Ω) resistance：Zz(Ω) ：IR(u A) MIN. MAX. Iz(m A) MAX. Iz(m A) MAX. Iz(m A) MAX. VR(V) RLZ 3.6B 3....

Page 3 RLZ27B Diodes :Iz (m Electrical characteristics (Ta=25°C) .C IC IE :γ z( IS IP IO :P d( .C IC IE :γ z( 3.9 IE 8.2 IM :R th :P (W ZENER VOLTAGE:Vz(V) Vz-Iz CHARACTERISTICS AMBIENT TEMPERATURE:Ta(℃) TIM...

Page 4 RLZ27B IC :Z z( :Iz (m Diodes Ta=175℃ Ta=-25℃ Ta=75℃Ta=25℃ f=1MHz Ta=125℃ Ta=125℃ Ta=75℃ Ta=25℃ 0.1 Ta=175℃ Ta=-125℃ 0.001 :IR :IR (n ZENER VOLTAGE:Vz(V) Vz-Iz CHARACTERISTICS REVERSE VOLTAGE：VR(V) RE...

Page 5 Appendix Notes No technical content pages of this document may be reproduced in any form or transmitted by any means without prior permission of ROHM CO.,LTD. The contents described herein are subject...

Page 6 WWW.ALLDATASHEET.COM Copyright © Each Manufacturing Company. All Datasheets cannot be modified without permission. This datasheet has been download from : www.All Data Sheet.com 100% Free Data Sheet S...
