ROHM RCM2011M Data Sheet
Summary
This powerful RCM2011M module is a 20-character, two-line transflective TN liquid crystal display featuring integrated LED backlighting and controller functionality. Designed for personal computers, word processors, and telephones, it offers high contrast, wide viewing angles, and easy interfacing via 4-bit or 8-bit MPUs using a single 5V power supply. The comprehensive manual provides developers with complete technical resources, including detailed electrical characteristics, pin functions, timing charts, and step-by-step instructions for initialization and operation.
Page 1 Text Content
Liquid crystal displays 查询RCM2011M供应商

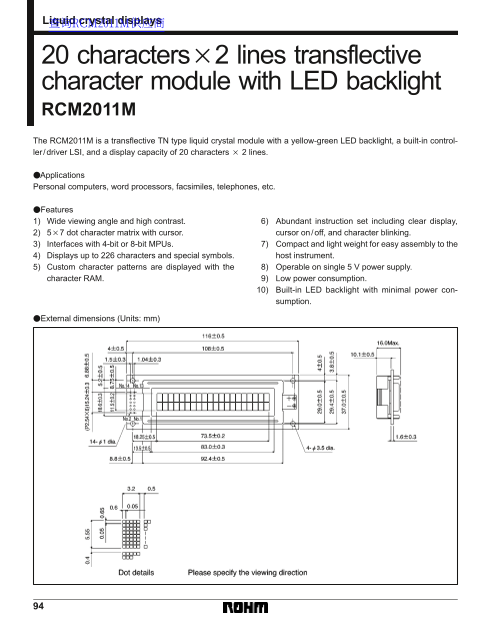

20 characters2 lines transflective character module with LED backlight RCM2011M The RCM2011M is a transflective TN type liquid crystal module with a yellow-green LED backlight, a built-in control- ler /driver LSI, and a display capacity of 20 characters 2 lines. Applications Personal computers, word processors, facsimiles, telephones, etc. Features
1) Wide viewing angle and high contrast. 6) Abundant instruction set including clear display, 2) 57 dot character matrix with cursor. cursor on /off, and character blinking. 3) Interfaces with 4-bit or 8-bit MPUs. 7) Compact and light weight for easy assembly to the 4) Displays up to 226 characters and special symbols. host instrument. 5) Custom character patterns are displayed with the 8) Operable on single 5 V power supply. character RAM. 9) Low power consumption. 10) Built-in LED backlight with minimal power con- sumption.
External dimensions (Units: mm)
Page Summary Contents For ROHM RCM2011M Data Sheet
Manual Details
| Brand | ROHM |
|---|---|
| Pages | 8 |
| File Size | 157.05 KB |
| Published | June 21, 2026 |
Enter the captcha to get the download link:
Frequently Asked Questions
What is the display capability of the RCM2011M module?
It features a 5x7 dot character matrix and can display up to 226 characters and special symbols.
How does the RCM2011M interface with microprocessors (MPUs)?
It supports interfaces with either 4-bit or 8-bit MPUs and operates on a single 5 V power supply.
What happens when the module is powered on?
The internal reset circuit automatically clears the display and initializes the function set, which takes about 15 ms.
