Data Sheet

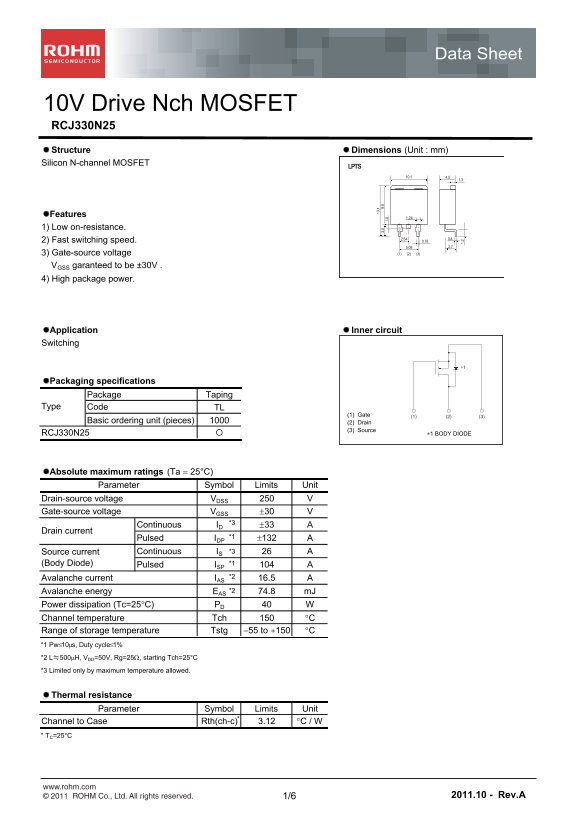

10V Drive Nch MOSFET RCJ330N25 Structure Dimensions (Unit : mm) Silicon N-channel MOSFET

Features

1) Low on-resistance.

2) Fast switching speed. 0.782.54

3) Gate-source voltage (1) (2) (3)

VGSS garanteed to be ±30V . 4) High package power.

Application Inner circuit Switching

Packaging specifications 3. 9.

Package Taping

Type Code TL

(1) Gate (1) (3)(2)

Basic ordering unit (pieces) (2) Drain

(3) Source

RCJ330N25 1 BODY DIODE

Absolute maximum ratings (Ta  25°C)

Parameter Symbol Limits Unit

Drain-source voltage VDSS Gate-source voltage VGSS 30

Continuous ID 33

Drain current

Pulsed IDP *1 132 Source current Continuous IS *3 (Body Diode) Pulsed ISP *1 Avalanche current IAS *2 16.5 Avalanche energy EAS *2 74.8 m J

Power dissipation (Tc=25C) PD Channel temperature Tch C Range of storage temperature Tstg 55 to 150 C *1 Pw10s, Duty cycle1% *2 L≒500H, VDD=50V, Rg=25, starting Tch=25°C *3 Limited only by maximum temperature allowed.

Thermal resistance

Parameter Symbol Limits Unit

Channel to Case Rth(ch-c) 3.12 C / W * TC=25°C

www.rohm.com

Page Summary Contents For ROHM RCJ330N25 Data Sheet

Page 1 Data Sheet 10V Drive Nch MOSFET RCJ330N25 Structure Dimensions (Unit : mm) Silicon N-channel MOSFET Features 1) Low on-resistance. 2) Fast switching speed. 0.782.54 3) Gate-source voltage (1) (2) (...

Page 2 Data Sheet RCJ330N25 Electrical characteristics (Ta = 25C) Parameter Symbol Min. Typ. Max. Unit Conditions Gate-source leakage IGSS 100 n A VGS=±30V, VDS=0V Drain-source breakdown voltage V(BR)DSS ...

Page 3 Data Sheet RCJ330N25 Electrical characteristic curves (Ta=25C) ta ti ra in -S rc -S ta te is ta [m ra in rr ra in rr Fig.1 Typical Output Characteristics (Ⅰ) Fig.2 Typical Output Characteristics (Ⅱ)...

Page 4 Data Sheet RCJ330N25 ta ti ra in -S rc -S ta te is ta rw rd ra fe it ta te -S rc lt (o [m fs Fig.8 Source Current vs. Source-Drain Voltage Fig.7 Forward Transfer Admittance vs. Drain Current VDS=10V V...

Page 5 Data Sheet RCJ330N25 ra in rr Fig.14 Normalized Transient Thermal Resistance v.s. Pulse Width Fig.13 Maximum Safe Operating Area Operation in this area Ta=25°C is limited by RDS(on) (VGS = 10V) Single...

Page 6 Data Sheet RCJ330N25 Measurement circuits Pulse width VGS ID VDS 90% 50% 50% VGS 10% RG VDD 90% 90% trtd(on) tftd(off) ton toff Fig.1-1 Switching Time Measurement Circuit Fig.1-2 Switching Waveforms ...
