The RB717F is a high-reliability Schottky barrier diode engineered for low-current rectification in ultra-compact UMD3 (SOT-323) packages. This technical manual provides comprehensive details on its performance, including absolute maximum ratings, precise electrical characteristics (forward voltage and capacitance), and thermal impedance data. It is essential reference material for electronic designers developing circuits that require stable, efficient, and dependable rectification components in small form factors.

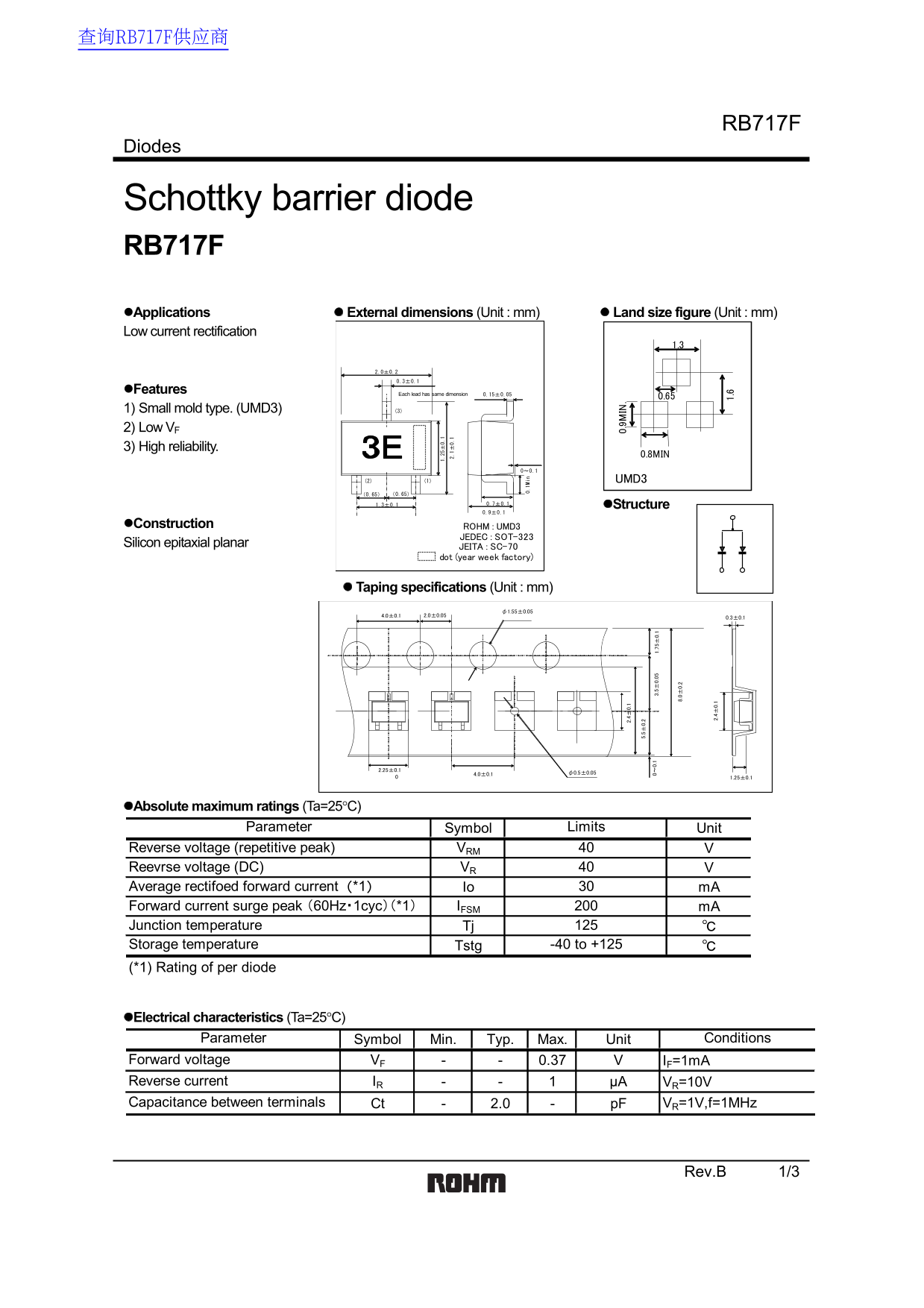

Page 1 Text Content
查询RB717F供应商
RB717F
Diodes
Schottky barrier diode RB717F
Applications External dimensions (Unit : mm) Land size figure (Unit : mm)
Low current rectification
0.3±0.1 Features 各リードとも Each lead has same dimension 同寸法 0.15±0.05
1) Small mold type. (UMD3) (3)
2) Low VF 3) High reliability.
0.8MIN
(2) (1) UMD3 （0.65） （0.65）
1.3±0.1 0.7±0.1 Structure 0.9±0.1
Construction ROHM : UMD3
JEDEC : SOT-323
Silicon epitaxial planar JEITA : SC-70
dot (year week factory)
Taping specifications (Unit : mm)
.9 IN
Absolute maximum ratings (Ta=25°C) Symbol Parameter Limits Unit
everse voltage (repetitive peak) VRM Reevrse voltage (DC) VR
verage rectifoed forward current（*1） Io m A For ward current surge peak （60Hz・1cyc）（*1） IFSM m A Junct ion temperature Tj torage temperature Tstg -40 to +125 *1) Rating of per diode
Electrical characteristics (Ta=25°C)
Parameter Symbol Min. Typ. Max. Unit Conditions
For ward voltage VF 0.37 IF=1m A everse current IR µA VR=10V Capacitance between terminals Ct 2.0 p F VR=1V,f=1MHz
Rev.B 1/3
