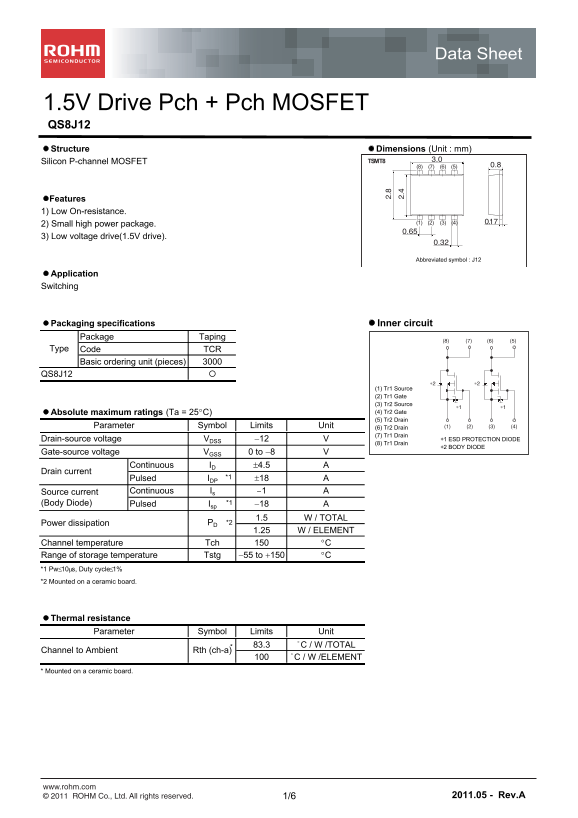

ROHM QS8J12 User Guide and Manual - Page 1

›

Page 1 Text Content

Data Sheet

1.5V Drive Pch + Pch MOSFET QS8J12 Structure Dimensions (Unit : mm)

Silicon P-channel MOSFET TSMT8

Features 1) Low On-resistance.

2) Small high power package. (1) (2) (4)(3)

3) Low voltage drive(1.5V drive).

Abbreviated symbol : J12

Application Switching

Packaging specifications Inner circuit

Package Taping

Type Code TCR Basic ordering unit (pieces) QS8J12

(1) Tr1 Source (2) Tr1 Gate (3) Tr2 Source

Absolute maximum ratings (Ta = 25C) (4) Tr2 Gate (5) Tr2 Drain

Parameter Symbol Limits Unit (6) Tr2 Drain (1) (2) (3) (4)

(7) Tr1 Drain

Drain-source voltage VDSS 12 ∗1 ESD PROTECTION DIODE

(8) Tr1 Drain

∗2 BODY DIODE

Gate-source voltage VGSS 0 to 8 Continuous ID 4.5

Drain current

Pulsed IDP *1 18 Source current Continuous Is 1 (Body Diode) Pulsed Isp *1 18 1.5 W / TOTAL PDPower dissipation *2 1.25 W / ELEMENT

Channel temperature Tch C Range of storage temperature Tstg 55 to 150 C *1 Pw10s, Duty cycle1% *2 Mounted on a ceramic board.

Thermal resistance

Parameter Symbol Limits Unit

83.3 ˚C / W /TOTAL

Channel to Ambient Rth (ch-a)

˚C / W /ELEMENT

* Mounted on a ceramic board.

www.rohm.com

Page Summary Contents For ROHM QS8J12 User Guide and Manual

Page 1 Data Sheet 1.5V Drive Pch + Pch MOSFET QS8J12 Structure Dimensions (Unit : mm) Silicon P-channel MOSFET TSMT8 Features 1) Low On-resistance. 2) Small high power package. (1) (2) (4)(3) 3) Low volta...

Page 2 Data Sheet QS8J12 Electrical characteristics (Ta = 25C) <It is the same ratings for Tr1 and Tr2.> Parameter Symbol Min. Typ. Max. Unit Conditions Gate-source leakage IGSS 10 A VGS=8V, VDS=0...

Page 3 Data Sheet QS8J12 Electrical characteristic curves (Ta=25C) IC IN -S -S IN [A IN [A Fig.1 Typical output characteristics(Ⅰ) Fig.2 Typical output characteristics(Ⅱ) Ta=25°C Ta=25°C VGS= -4.5V Pulsed ...

Page 4 Data Sheet QS8J12 IT fs IC IN -S -S IC IN -S -S IS IS Fig.7 Static Drain-Source On-State Resistance vs. Drain Current(Ⅳ) Fig.8 Static Drain-Source On-State Resistance vs. Drain Current(Ⅴ) VGS= -1.8V V...

Page 5 Data Sheet QS8J12 Fig.13 Dynamic Input Characteristics Fig.14 Typical Capacitance vs. Drain-Source Voltage Ta=25°C VDD= -6V ID= -4.5A Ta=25°C RG=10W f=1MHz Pulsed VGS=0V DRAIN-SOURCE VOLTAGE : -VDS[V]...

Page 6 Data Sheet QS8J12 Measurement circuits Pulse Width VGS ID VGS VDS 10% trtd(on) tftd(off) ton toff Fig.1-1 Switching Time Measurement Circuit Fig.1-2　Switching Waveforms VDS Qg IG(Const.) D.U.T. Qgs Q...

Page 7 Notice Thank you for your accessing to ROHM product informations. More detail product informations and catalogs are available, please contact us. ROHM Customer Support System http://www.rohm.com/conta...
