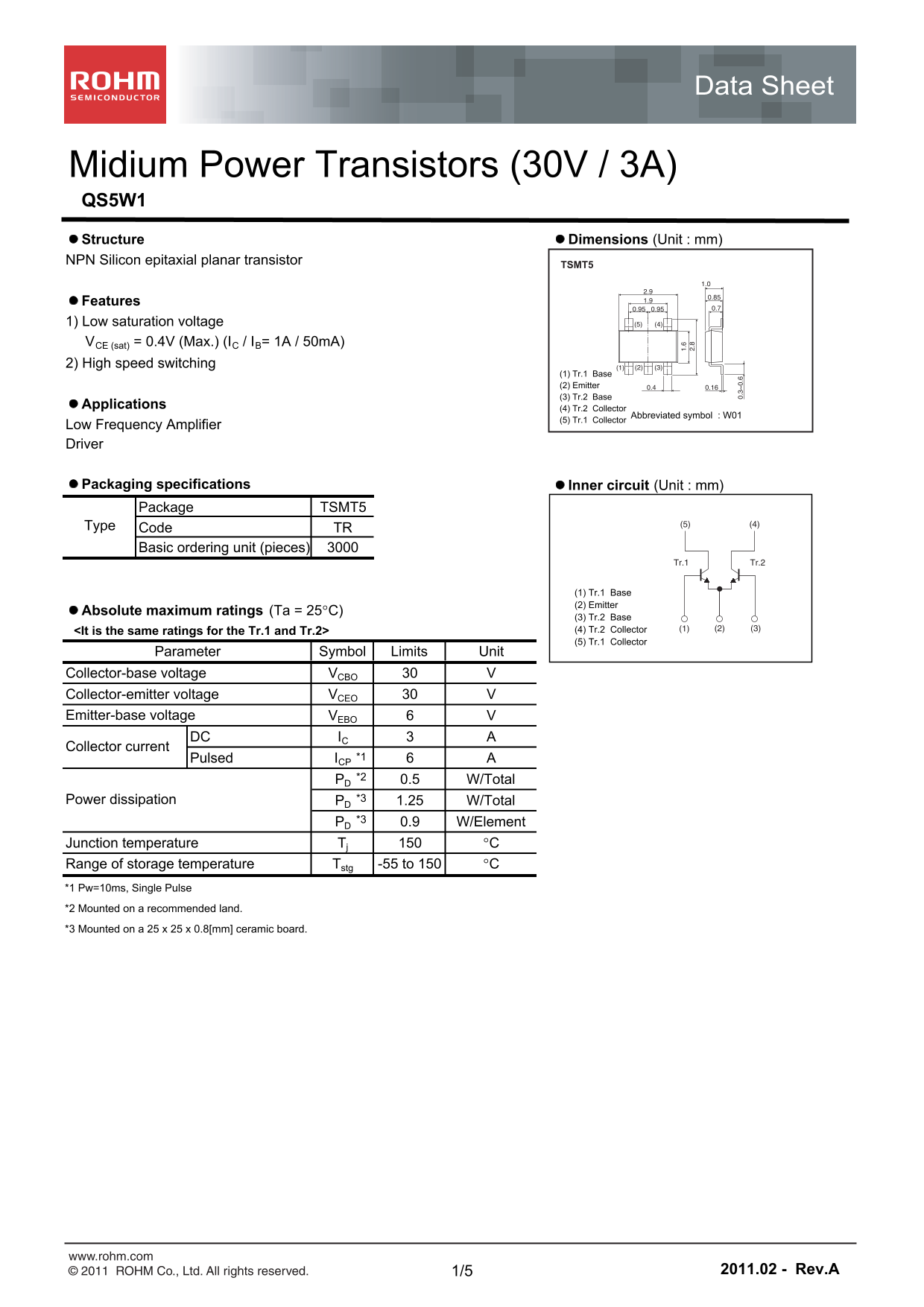

Data Sheet
Midium Power Transistors (30V / 3A) QS5W1 Structure Dimensions (Unit : mm) NPN Silicon epitaxial planar transistor
TSMT5
Features 1) Low saturation voltage VCE (sat) = 0.4V (Max.) (IC / IB= 1A / 50m A) 2) High speed switching
(1) Tr.1 Base (2) Emitter (3) Tr.2 Base
Applications (4) Tr.2 Collector
Abbreviated symbol : W01
(5) Tr.1 Collector
Low Frequency Amplifier Driver
Packaging specifications Inner circuit (Unit : mm)
Package TSMT5
Type (4)(5)
Code TR Basic ordering unit (pieces)
Tr.1 Tr.2
(1) Tr.1 Base (2) Emitter
Absolute maximum ratings (Ta = 25C)
(3) Tr.2 Base
(4) Tr.2 Collector (1) (2) (3)
<It is the same ratings for the Tr.1 and Tr.2>
(5) Tr.1 Collector
Parameter Symbol Limits Unit
Collector-base voltage VCBO Collector-emitter voltage VCEO Emitter-base voltage VEBO
DC IC
Collector current
Pulsed ICP *1 PD *2 0.5 W/Total Power dissipation PD *3 1.25 W/Total PD *3 0.9 W/Element
Junction temperature Tj C Range of storage temperature Tstg -55 to 150 C *1 Pw=10ms, Single Pulse *2 Mounted on a recommended land. *3 Mounted on a 25 x 25 x 0.8[mm] ceramic board.
www.rohm.com
© 2011 ROHM Co., Ltd. All rights reserved. 1/5 2011.02 - Rev.A
